NS Family (NS50 / NS100 / NS200)

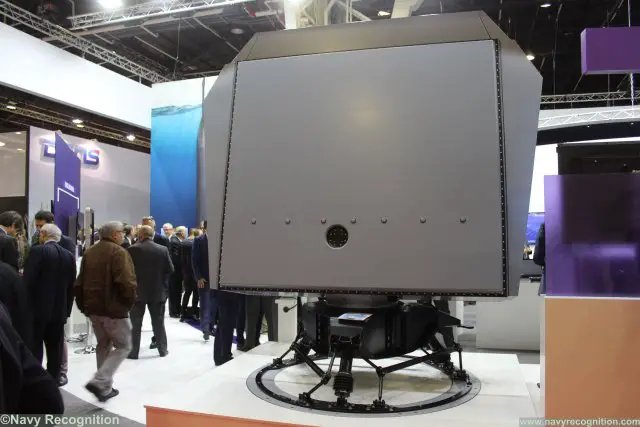

NS50, NS100, and NS200 form a family of active electronically scanned array surveillance radars built by Thales Nederland at its Hengelo plant, scaled to fit anything from a fast patrol vessel to a frigate. The family was introduced in 2017 to succeed the earlier SMART-S and Variant rotating-reflector designs in Thales’s catalogue, and it represents the company’s move to a fully digital, software-defined naval surveillance line built on gallium-nitride transmit-receive modules.

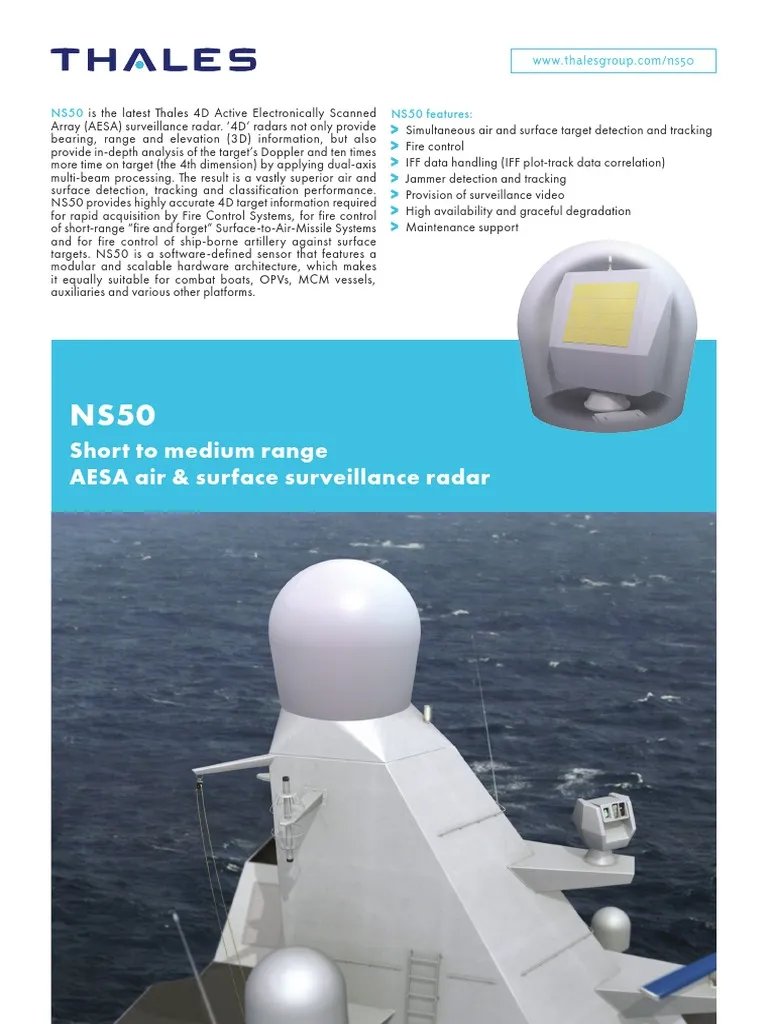

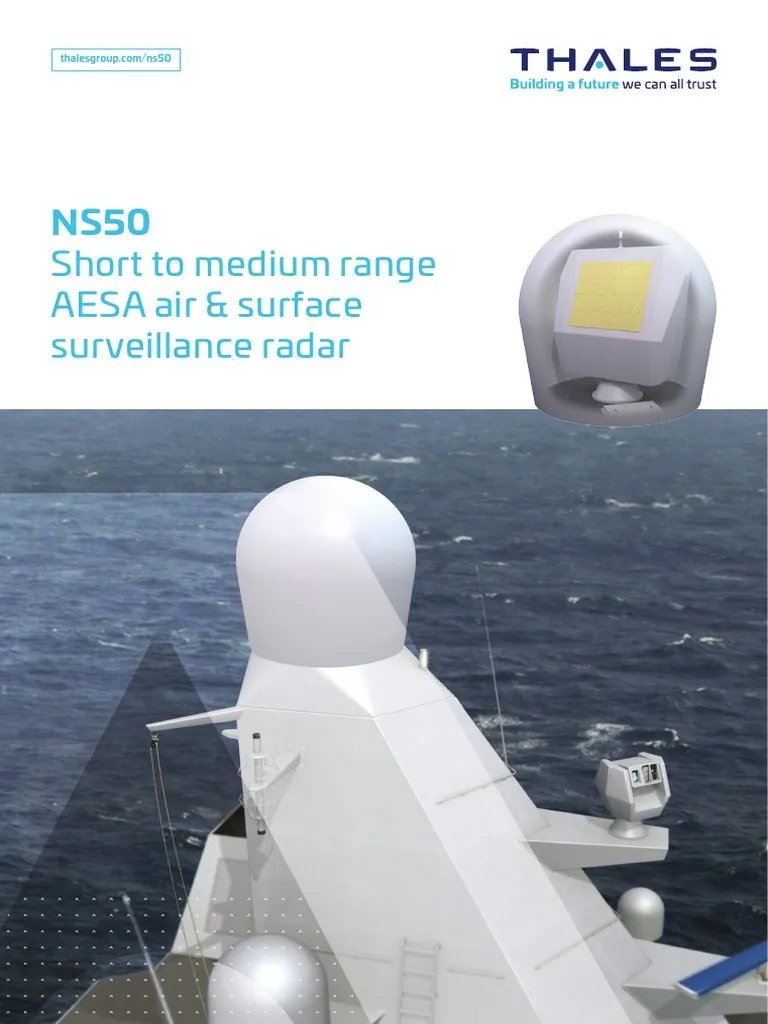

The technical heart is a dual-axis multibeam architecture: each radar emits stacked beams in elevation while the array rotates mechanically in azimuth, giving simultaneous air-and-surface coverage without the rotation-rate compromises of older mast-top sets. Waveforms, sidelobe shaping, and detection thresholds are entirely software-defined, which lets the same hardware be retasked between long-range air search, sea-skimming missile defence, and the small, slow, low targets that have become the dominant naval threat. The NS50 is a compact set aimed at offshore patrol vessels and light combatants, with a quoted instrumented range around 180 kilometres. The NS100 is the mid-tier S-band variant and the family’s volume seller. The NS200 is the heavy version for frigate-class ships, pushing detection ranges past 250 kilometres and integrating an identification-friend-or-foe interrogator inside the same antenna face.

Confirmed operators include the Royal Netherlands Navy, which fitted the NS100 to the combat support ship HNLMS Den Helder, and the Belgian Navy, which selected an NS-family set for the City-class mine countermeasures vessels jointly procured with the Netherlands. The Indonesian Navy has selected the family for new surface combatants, and the United Arab Emirates’ navy is building it into its next-generation corvette programme. Counter-unmanned-aerial-system performance — tracking small, low-radar-cross-section quadcopters and one-way attack drones — has become a central selling point as the lessons of the Red Sea and the Black Sea filter into European naval procurement decisions.

Development is ongoing. Thales has marketed an upgraded NS100 with extended counter-drone modes in response to the drone-saturation threats seen against shipping in the Red Sea since 2023, and the company has used the family as the showcase for its broader push into software-upgradeable naval sensors that can absorb new threats without a hardware refit. Within the wider market, the NS line competes with Saab’s Sea Giraffe 4A, Leonardo’s Kronos, and Hensoldt’s TRS-4D, and it is distinguished principally by the waveform agility that lets a single antenna serve as both the primary air search and the dedicated counter-drone sensor on hulls too small to afford a dual fit.
