What the ZALA 421-16E is made of
92 documented parts and 117 photos, from recovered wreckage. Each part gives its marking, maker and country where known, and links the record it comes from.
Where the parts were made
- United States of America 56
- TriQuint Semiconductor (Qorvo), Analog Devices, Microchip Technology Inc., Micron Technology, Xilinx Inc. (AMD), Texas Instruments, Maxim Integrated Products (Analog Devices), Bel Fuse Inc., Vishay Intertechnology, Inc., Honeywell International, Adesto Technologies (Dialog Semiconductor - Renesas Electronics), Semtech Corporation, National Semiconductor (Texas Instruments), Allegro MicroSystems, Atmel (Microchip Technology), ON Semiconductor (ONSEMI), Nvidia, RF Micro Devices, Freescale Semiconductor
- People's Republic of China 15
- Nanjing Qinheng Microelectronics Co., Ltd. (WinChipHead, WCH), Not identified, Xuyi OuGe Electronics Co., Ltd., Kexin, Zbit Semi, Zhejiang Deli Connectors Co., Ltd., AMASS, GigaDevice, Semtech Electonics Limited, GLEAD Electronics, RunCam, InfiRay, QST Corporation
- Netherlands 6
- NXP Semiconductors
- Switzerland 5
- STMicroelectronics, U-blox
- Germany 5
- Infineon Technologies
- Taiwan 2
- SONiX Technology, VBsemi Electronics Co.,Ltd
- Republic of Korea 2
- Ricci Microwave, LG
- Japan 1
- Sumida Corporation
Sources
- HUR War & Sanctions: Zala421-16E UAV · українською
- HUR War & Sanctions: Zala 421-16E UAV (captured in April 2022) · українською
- Open Source Munitions Portal — search its munition identification records
Ukrainian pages read alongside the English: same items, markings and text.
Zala421-16E UAV record ↗
Navigation module with GNSS receiver
- STM32F103RET6
7B26B 9U
PHL 7B 303
Microcontroller
record ↗
- UM5010
ARSZ
#2215
5678999
DC/DC converter
record ↗
- HMC5883L
5883
00cC
3-Axis Digital Compass
record ↗
- SN74HCT541
HT541
Octal buffer and linear driver
record ↗
- AT25DF641A
MH2110
TW-G
QRLQR B
64Mbit Serial Flash Memory
record ↗
- LIS3LV02DL
035
1XKK
3LV2D
MLT
MEMS Inertial Sensor Low Voltage 3-Axis Linear Accelerometer with Digital Output ±2g/±6g
record ↗

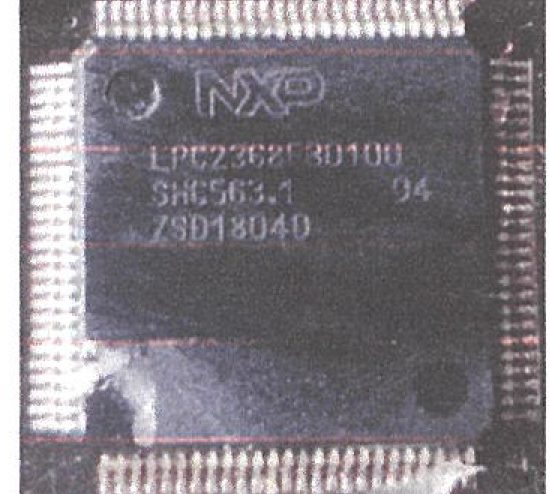

- LPC2368FBD100
H2PH52.1 16
NSD2125D
Single-chip 16-bit/32-bit microcontroller
record ↗
- ADM3315EA
#2139
Transceiver
record ↗
- CDRH5D28NR
Power inductor (SMD)
record ↗
- SN65HVD232
VP232
16M
A3V
3.3-V CAN Bus Transceiver
record ↗
- MPXA4115A
KI Y036D
Built-in silicon pressure sensor for measuring absolute pressure in the altimeter or barometer manifold
record ↗
- MPXV5010GP
KHV109C
Integrated silicon pressure sensor
record ↗
- LPC2368FBD100
SHK569.1 03
ZSD1810D
Microcontroller
record ↗
- ADXRS453
Digital gyroscope
record ↗
- DAS1575R1602H4
DOLIN0 1
GNSS antenna
record ↗
- XE1205
Multi-Channel, Narrow-Band RF Transceiver
record ↗
Optoelectronic module
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Gigabit Ethernet Transceiver with RGMII Support
Гігабітний Ethernet-трансивер з підтримкою RGMII
KSZ9131RNX C000 e3 2238GBO
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
RS-232/RS-485/RS-422 Multiprotocol Transceiver
Багатопротокольний трансивер RS-232/RS-485/RS-422
MAX3160E EAP2218
Photo: HUR War & Sanctions
Ethernet 10/100BASE-T module
Ethernet 10/100BASE-T модуль
S558-5999-U7-F 2338WM
Photo: HUR War & Sanctions
High Performance Schottky Rectifier
Високопродуктивний випрямляч Шотткі
15CTQ045S V 123 S5 LO
Photo: HUR War & Sanctions
4-Port 10/100 Managed Switch
4-портовий Ethernet 10/100 комутатор
KSZ8864CNX
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions

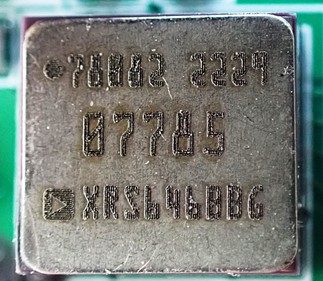

Vibration Rejecting Yaw Rate Gyroscope
Гіроскоп з придушенням вібрації та нишпорення
ADXRS646 78082 2229 07785 XRS646BBG
Photo: HUR War & Sanctions
Low-Dropout Linear Regulator
Лінійний регулятор з низьким падінням напруги
TPS769 PCFQ TI J 8B8D
Photo: HUR War & Sanctions
Zala 421-16E UAV (captured in April 2022) record ↗
Li-Ion battery
-
Industrial battery
record ↗
Electronic stroke control
Module for switching and controlling power supply
- SN65HVD232D
CAN TRANSCEIVERS
record ↗
- IRLR7843PbF
Transistor
record ↗
- ACS711
Current sensor
record ↗
- FDD6637
Transistor
record ↗
- 15CTQ045S
Rectifier diode
record ↗
- LM2673S
Switching voltage regulators
record ↗
- IRFH7085
Transistor
record ↗
- LPC2362FBD100
Microcontroller
record ↗
- ATMega8A
Microcontroller
record ↗
Jetson TX2 module
Transmission module video image with amplifier signal power amplifier
- SN65HVD234D
CAN TRANSCEIVERS
record ↗
- N25Q128
Microcircuit
record ↗
- ADV7391
Microcircuit
record ↗
- ADV7180
Microcircuit
record ↗
- KSZ9031RNX
Microcircuit
record ↗
- KSZ8864CNX
Microcircuit
record ↗
- ADAU1961
Microcircuit
record ↗
- MAX13235E
Microcircuit
record ↗
- MT41K128M16JT
Microcircuit
record ↗
- типу SoC Zynq-7000 XC7Z020
Microcircuit
record ↗

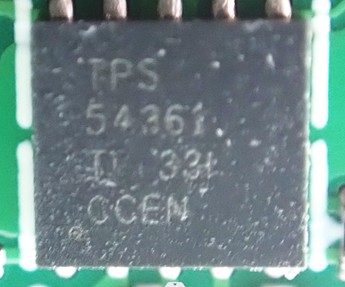

- TPS54561
Microcircuit
record ↗
- SKY13330_397L
SPDT Switch
record ↗
Radio modem transmission receiving- signals control and telemetry
Automatic control system board control system
Part records and photos: HUR War & Sanctions, Ukraine's Defence Intelligence database of foreign components found in Russian weapons, and the other sources named on each part. A marking, date code or country is given as the source records it.
