What the Tornado-S is made of

70 documented parts and 71 photos, from recovered wreckage. Each part gives its marking, maker and country where known, and links the record it comes from.

Where the parts were made

United States of America 54
Spansion (Cypress Semiconductor, Infineon Technologies), Cypress Semiconductor (Infineon Technologies), Integrated Device Technology (Renesas), Maxim Integrated Products (Analog Devices), Linear Technology Corporation (Analog Devices), Analog Devices, Altera Corporation (Intel), Microchip Technology Inc., Texas Instruments, ON Semiconductor (ONSEMI), Monolithic Power Systems, National Semiconductor (Texas Instruments)
Switzerland 5
STMicroelectronics, Traco Power
Japan 3
Renesas
People's Republic of China 2
MORNSUN Guangzhou Science & Technology Co., Ltd., PANWOO Equipment Consulting Co., Ltd.
Great Britain 2
Golledge Electronics Ltd.
Singapore 1
DenseLight Semiconductor
Germany 1
Infineon Technologies

Sources

Ukrainian pages read alongside the English: same items, markings and text.

"Tornado-C" 9M544 MLRS guided missile record ↗

Head part

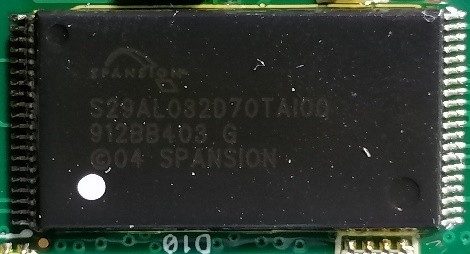

  • S29AL032D70TAI00 912BB403 G Memory chip Spansion (Cypress Semiconductor, Infineon Technologies)United States of Americarecord ↗ Memory chip, marked S29AL032D70TAI00 912BB403 G
  • CY62157EV30L L-45ZSXI 1813 614000 PHI F 04 Memory chip Cypress Semiconductor (Infineon Technologies)United States of Americarecord ↗ Memory chip, marked CY62157EV30L L-45ZSXI 1813 614000 PHI F 04

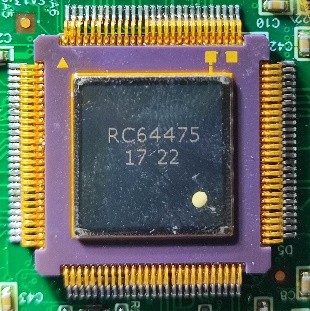

  • RC64475 1722 64-bit Microprocessor Integrated Device Technology (Renesas)United States of Americarecord ↗ 64-bit Microprocessor, marked RC64475 1722
  • MAX3490 EESA +736 RS-485/RS-422 Transceiver Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ RS-485/RS-422 Transceiver, marked MAX3490 EESA +736
  • MAX7068 ESA +746 μP Supervisory Circuits Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ μP Supervisory Circuits, marked MAX7068 ESA +746
  • LTC1594LIS 1730 12-Bit ADC Linear Technology Corporation (Analog Devices)United States of Americarecord ↗ 12-Bit ADC, marked LTC1594LIS 1730
  • QS3253 QG X51713D CMOS TTL-compatible dual 4:1 multiplexer/demultiplexer RenesasJapanrecord ↗ CMOS TTL-compatible dual 4:1 multiplexer/demultiplexer, marked QS3253 QG X51713D
  • DS1306 1731A3 171AC Real-time clock Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ Real-time clock, marked DS1306 1731A3 171AC
  • ADM3202A #732 RS-232 Line Driver/Receiver Analog DevicesUnited States of Americarecord ↗ RS-232 Line Driver/Receiver, marked ADM3202A #732
  • ICS570 570AILF GR02178PY 1735 Multiplier and zero delay buffer RenesasJapanrecord ↗ Multiplier and zero delay buffer, marked ICS570 570AILF GR02178PY 1735
  • ICS551 551MILF GRO4424PY 1807 Clock buffer RenesasJapanrecord ↗ Clock buffer, marked ICS551 551MILF GRO4424PY 1807

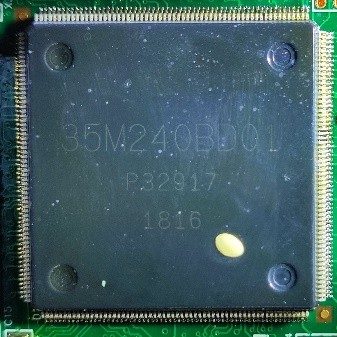

  • 35M240BD01 P32917 1816 Processor Altera Corporation (Intel)United States of Americarecord ↗ Processor, marked 35M240BD01 P32917 1816
  • MIC2505 2505-1YM 5S53 Power switcher Microchip Technology Inc.United States of Americarecord ↗ Power switcher, marked MIC2505 2505-1YM 5S53
  • TPS54357 PS54357 65T CD2R Synchronous PWM switcher Texas InstrumentsUnited States of Americarecord ↗ Synchronous PWM switcher, marked TPS54357 PS54357 65T CD2R
  • TPS54356 PS54356 51T ADK5 Synchronous PWM switcher Texas InstrumentsUnited States of Americarecord ↗ Synchronous PWM switcher, marked TPS54356 PS54356 51T ADK5
  • MAX924 ESE 1550 Ultra-low power Analog Comparator Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ Ultra-low power Analog Comparator, marked MAX924 ESE 1550
  • MBRS3100 j22 B310 Schottky Power Rectifier ON Semiconductor (ONSEMI)United States of Americarecord ↗ Schottky Power Rectifier, marked MBRS3100 j22 B310
  • 8L05A PUHVB Voltage regulator Texas InstrumentsUnited States of Americarecord ↗ Voltage regulator, marked 8L05A PUHVB
  • CD54AC74 / CD74AC74 6ACCK7K G4 AC74M Dual Positive-Edge-Triggered D-Type Flip-Flops Texas InstrumentsUnited States of Americarecord ↗ Dual Positive-Edge-Triggered D-Type Flip-Flops, marked CD54AC74 / CD74AC74 6ACCK7K G4 AC74M

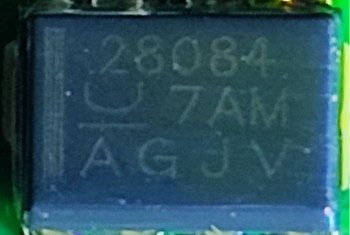

  • UCC28084 28084 7AM AGJV PWM controller Texas InstrumentsUnited States of Americarecord ↗ PWM controller, marked UCC28084 28084 7AM AGJV

"Tornado-C" 9M549 MLRS guided missile (researched in December 2024) record ↗

Unit TIUS500 (ТИУС500) / ПНСК40-016 ПНСК.402139.016 №23460

  • Board 3
  • K7805M-1000R3 RoHS2319 rsyU DC/DC converter MORNSUN Guangzhou Science & Technology Co., Ltd.People's Republic of Chinarecord ↗ DC/DC converter, marked K7805M-1000R3 RoHS2319 rsyU

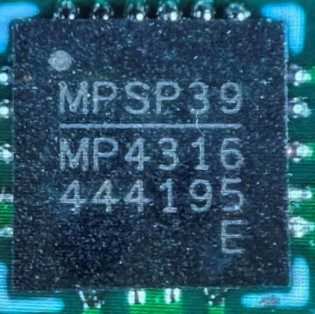

  • MPSP39 MP4316 444195 E Synchronous Step-Down Converter Monolithic Power SystemsUnited States of Americarecord ↗ Synchronous Step-Down Converter, marked MPSP39 MP4316 444195 E

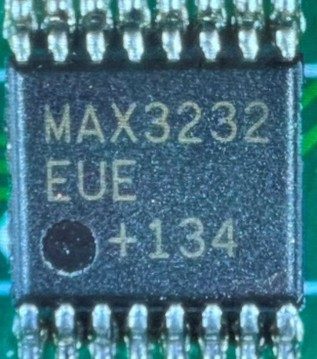

  • MAX3232 EUE +134 RS232 Transceiver Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ RS232 Transceiver, marked MAX3232 EUE +134

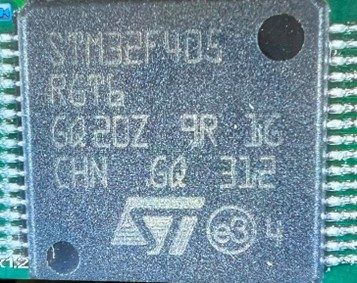

  • STM32F405RGT6 GQ20Z 9R 1G CHN GQ 312 A 32-bit microcontroller STMicroelectronicsSwitzerlandMade March-April (week 12) 2023record ↗ A 32-bit microcontroller, marked STM32F405RGT6 GQ20Z 9R 1G CHN GQ 312
  • Board 2

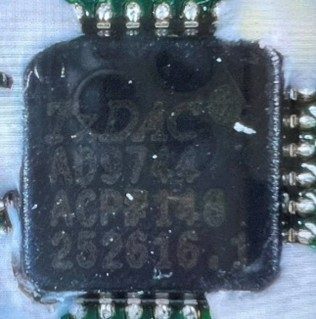

  • AD9744 ACP#148 252616 Digital-to-analog converter Analog DevicesUnited States of Americarecord ↗ Digital-to-analog converter, marked AD9744 ACP#148 252616

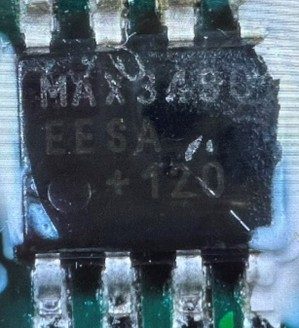

  • MAX3480 EESA +120 RS-485/RS-422 Data Interface Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ RS-485/RS-422 Data Interface, marked MAX3480 EESA +120

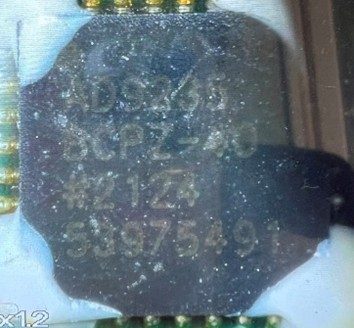

  • AD9235 BCPZ-40 #2124 53975491 12-Bit ADC Analog DevicesUnited States of AmericaMade June (week 24) 2021record ↗ 12-Bit ADC, marked AD9235 BCPZ-40 #2124 53975491
  • Board 1
  • MIOC-388FM SN:D315735 Multifunctional integrated optical chip PANWOO Equipment Consulting Co., Ltd.People's Republic of Chinarecord ↗ Multifunctional integrated optical chip, marked MIOC-388FM SN:D315735

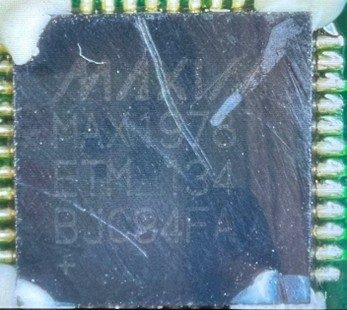

  • MAX1978 ETM 134 BJC84FA Temperature Controller for Peltier Module Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ Temperature Controller for Peltier Module, marked MAX1978 ETM 134 BJC84FA

Unit TIUS500 / Electronics unit BCO-051 (БЦО-051) ПНСК 758725027

  • Board 1

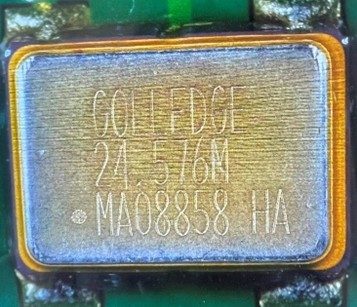

  • 24.576М МА08858 НА SAW Filter Golledge Electronics Ltd.Great Britainrecord ↗ SAW Filter, marked 24.576М МА08858 НА

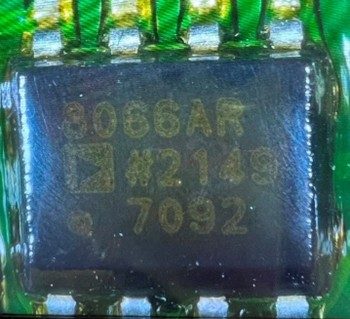

  • 8066AR #2149 7092 Operational Amplifier Analog DevicesUnited States of AmericaMade December (49th week) 2021record ↗ Operational Amplifier, marked 8066AR #2149 7092

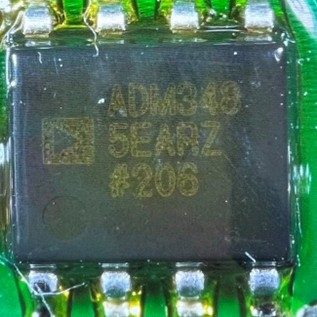

  • ADM349 5EARZ #206 RS-485/RS-422 Transceiver Analog DevicesUnited States of Americarecord ↗ RS-485/RS-422 Transceiver, marked ADM349 5EARZ #206

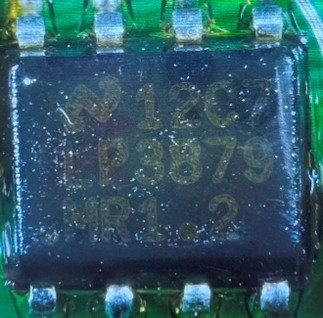

  • 12C LP3879 MR1.2 Voltage regulator National Semiconductor (Texas Instruments)United States of Americarecord ↗ Voltage regulator, marked 12C LP3879 MR1.2

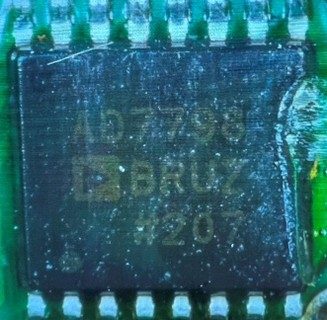

  • AD7798 BRUZ #207 16-/24-Bit ADC Analog DevicesUnited States of Americarecord ↗ 16-/24-Bit ADC, marked AD7798 BRUZ #207

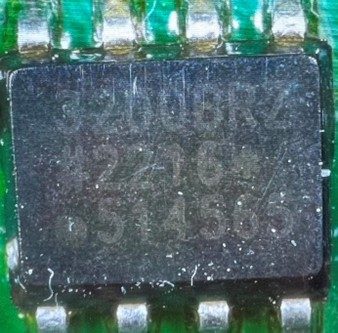

  • 3200BRZ #2216 514565 Dual-channel digital isolator Analog DevicesUnited States of AmericaMade April (week 16) 2022record ↗ Dual-channel digital isolator, marked 3200BRZ #2216 514565

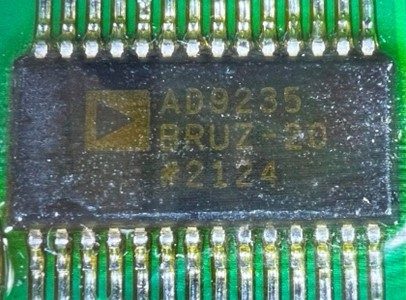

  • AD9235 BRUZ 20 #2124 12-Bit ADC Analog DevicesUnited States of AmericaMade June (week 24) 2021record ↗ 12-Bit ADC, marked AD9235 BRUZ 20 #2124

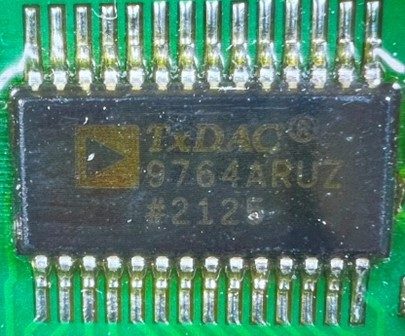

  • 9764ARUZ #2125 Digital-to-Analog Converter Analog DevicesUnited States of AmericaMade June (week 25) 2022record ↗ Digital-to-Analog Converter, marked 9764ARUZ #2125

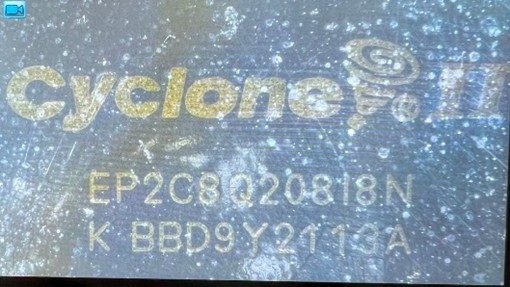

  • EP2C8Q20818N K BBD9Y2113A CPLD Altera Corporation (Intel)United States of AmericaMade March-April (week 13) 2021record ↗ CPLD, marked EP2C8Q20818N K BBD9Y2113A

Unit

  • Board 2

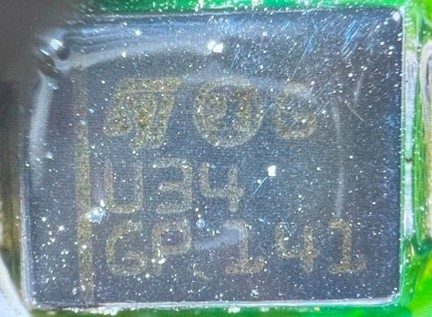

  • U34 GP141 Schottky diode STMicroelectronicsSwitzerlandrecord ↗ Schottky diode, marked U34 GP141

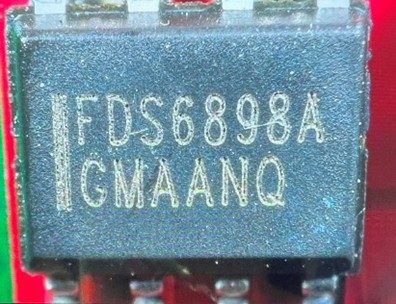

  • FDS6898A GMAANQ Transistor ON Semiconductor (ONSEMI)United States of Americarecord ↗ Transistor, marked FDS6898A GMAANQ

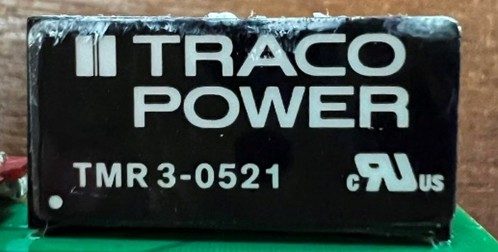

  • TMR3-0521 DC/DC converter Traco PowerSwitzerlandrecord ↗ DC/DC converter, marked TMR3-0521

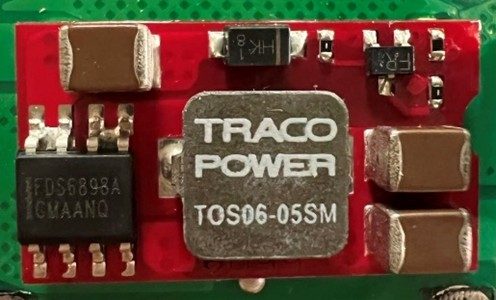

  • T0S06-05SM DC/DC converter Traco PowerSwitzerlandrecord ↗ DC/DC converter, marked T0S06-05SM
  • Board 1

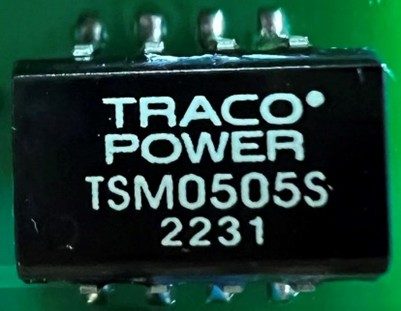

  • TSM0505S 2231 DC/DC converter Traco PowerSwitzerlandMade August (week 31) 2022record ↗ DC/DC converter, marked TSM0505S 2231

Unit PUI-048 (ПУИ-048)

  • Board 1

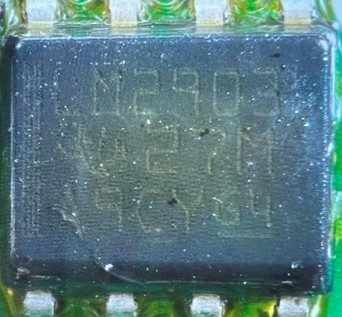

  • M2903 27M 9CY G4 Comparator Texas InstrumentsUnited States of Americarecord ↗ Comparator, marked M2903 27M 9CY G4

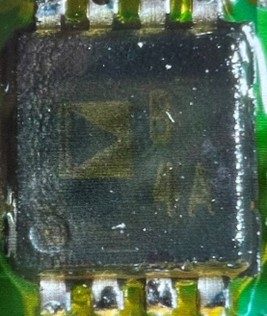

  • B 4A Microcircuit Analog DevicesUnited States of Americarecord ↗ Microcircuit, marked B 4A

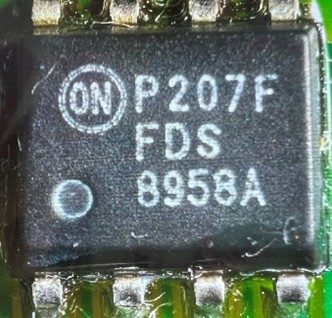

  • P207F FDS 8958A Transistor ON Semiconductor (ONSEMI)United States of Americarecord ↗ Transistor, marked P207F FDS 8958A

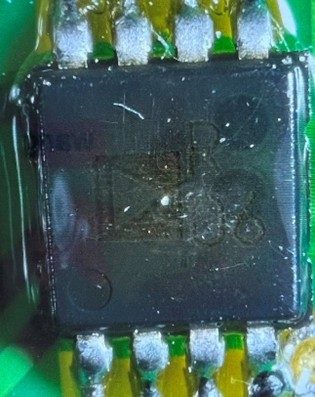

  • R 08 Microcircuit Analog DevicesUnited States of Americarecord ↗ Microcircuit, marked R 08

Fibre optic gyroscope

Волоконно-оптичний гіроскоп

Not identified

Has visual similarity to AgileLight gyroscopes manufactured by BWSENSING (PRC)

HUR War & Sanctions record ↗

  • Fibre optic gyroscope — photo
  • Fibre optic gyroscope — photo
1 / 2

Photo: HUR War & Sanctions

"Tornado-C" 9M549 MLRS guided missile (researched in May 2024) record ↗

Glonass/GPS signal receiver

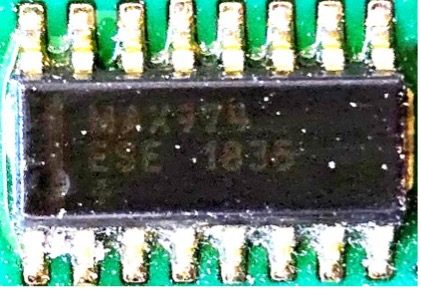

  • MAX774 ESE 1835 DC-to-DC controller Maxim Integrated Products (Analog Devices)United States of AmericaMade August (35th week) 2018record ↗ DC-to-DC controller, marked MAX774 ESE 1835
  • RC644755 20.15 RISC-controller Integrated Device Technology (Renesas)United States of AmericaMade April (15th week) 2020record ↗ RISC-controller, marked RC644755 20.15

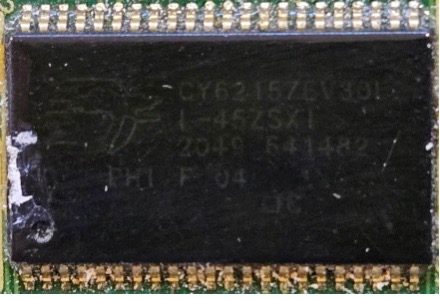

  • CY62157EV30 L – 45ZSXI 2049 641482 04 PHI F 04 Static RAM Cypress Semiconductor (Infineon Technologies)United States of AmericaMade December (49th week) 2020record ↗ Static RAM, marked CY62157EV30 L – 45ZSXI 2049 641482 04 PHI F 04

Gyroscope

  • 8066AR #2013 7549 Operational amplifier Analog DevicesUnited States of AmericaMade March (13th week) 2020record ↗ Operational amplifier, marked 8066AR #2013 7549
  • 24.576M MA08858 KG SAW Filter Golledge Electronics Ltd.Great Britainrecord ↗ SAW Filter, marked 24.576M MA08858 KG

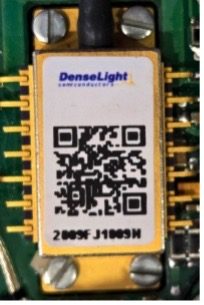

  • 2035F J159M Superluminescent diode DenseLight SemiconductorSingaporerecord ↗ Superluminescent diode, marked 2035F J159M

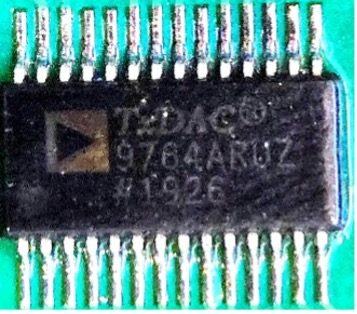

  • TxDAC 9764ARUZ #1926 Digital-to-analog converter Analog DevicesUnited States of AmericaMade June (26th week) 2019record ↗ Digital-to-analog converter, marked TxDAC 9764ARUZ #1926

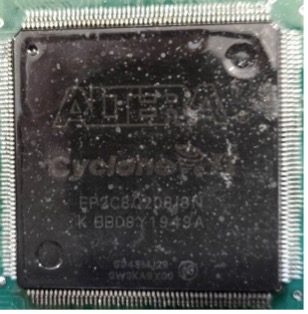

  • Cyclone II EP2C8Q208I8N K BBDY1949A Field-programmable gate array (FPGA) Altera Corporation (Intel)United States of AmericaMade December (49th week) 2019record ↗ Field-programmable gate array (FPGA), marked Cyclone II EP2C8Q208I8N K BBDY1949A

Guided missile 9M549 Tornado S MLRS record ↗

Navigation unit (unit БПВ БАП № Б03119358)

  • Satellite navigation system module ТДЦК 468173.005-00 Зав.№ 1802085

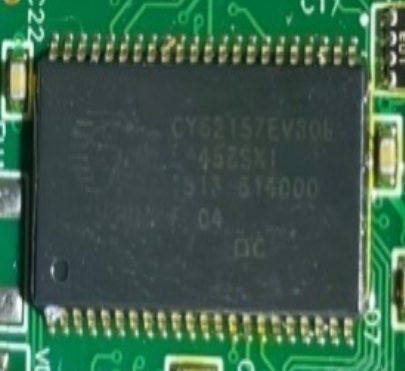

  • CY62157EV30L – 45ZSXI 1813 614000 04 PHI F 04 Microcircuit Cypress Semiconductor (Infineon Technologies)United States of AmericaMade March (13th week) 2018record ↗ Microcircuit, marked CY62157EV30L – 45ZSXI 1813 614000 04 PHI F 04

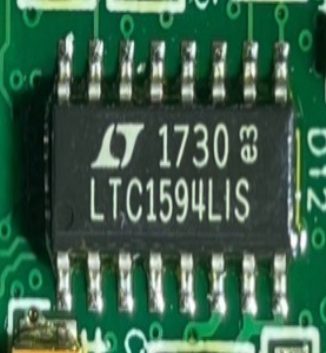

  • 1730 (e3) LTC1594LIS ADC microcircuit Linear Technology Corporation (Analog Devices)United States of AmericaMade July (30th week) 2017.record ↗ ADC microcircuit, marked 1730 (e3) LTC1594LIS

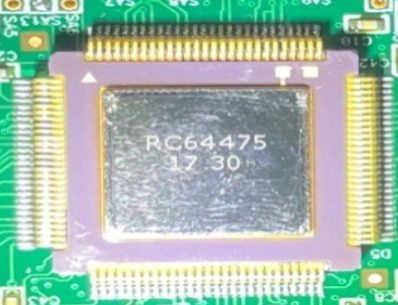

  • RC644755 17.30 RISController Embedded 64-bit microprocessor based on RISCore 4000 Integrated Device Technology (Renesas)United States of AmericaMade July (30th week) 2017.record ↗ RISController Embedded 64-bit microprocessor based on RISCore 4000, marked RC644755 17.30

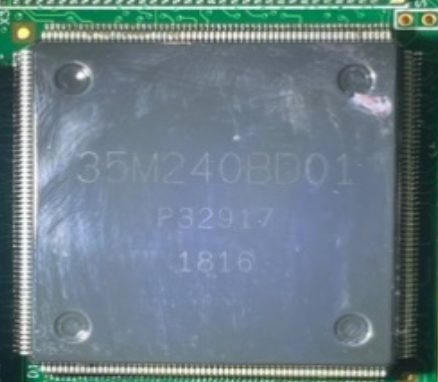

  • 35M240BD01 P32217 1816 Процессор Altera Corporation (Intel)United States of AmericaMade April (16th week) 2018record ↗ Процессор, marked 35M240BD01 P32217 1816

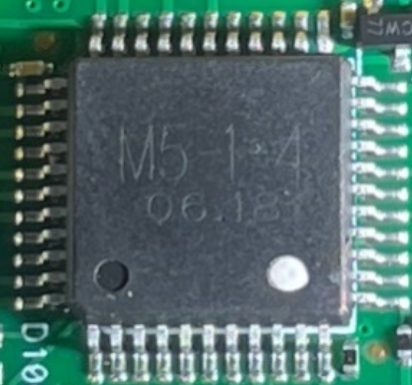

  • M5-1 4 06 18 Microcontroller M5-1-4 in TQFP44 package Not identifiedrecord ↗ Microcontroller M5-1-4 in TQFP44 package, marked M5-1 4 06 18

Inertial measuring unit of the 9M544 MLRS Tornado-S missile record ↗

FPGA

ПЛІС (FPGA)

Altera Corporation (Intel)United States of America

ALTERA Cyclone®II EP2C8Q208I8N K BBD9Y1801A (VDDSY696213 NSKA8COC)

HUR War & Sanctions record ↗

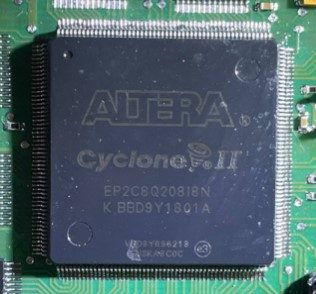

  • FPGA — photo

Photo: HUR War & Sanctions

Microcircuit

Мікросхема

Analog DevicesUnited States of America

ЦАП TxDAC® 9764ARUZ #1626

HUR War & Sanctions record ↗

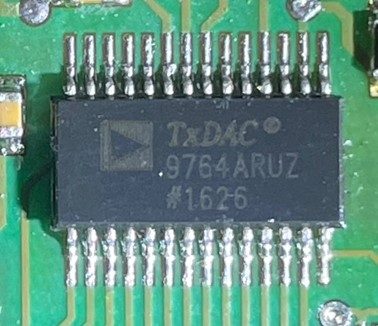

  • Microcircuit — photo

Photo: HUR War & Sanctions

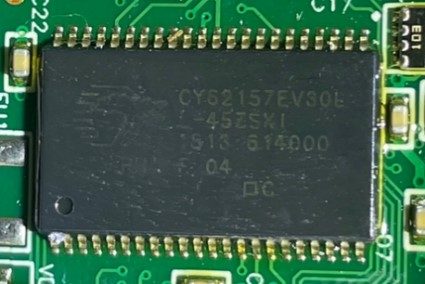

RAM chip

Мікросхема оперативної пам’яті

Cypress Semiconductor (Infineon Technologies)United States of America

CY62157EV30L – 45ZSXI S13 614000 04

HUR War & Sanctions record ↗

  • RAM chip — photo

Photo: HUR War & Sanctions

Microcircuit

Мікросхема

Linear Technology Corporation (Analog Devices)United States of America

1730 (e3) LTC1594LIS

HUR War & Sanctions record ↗

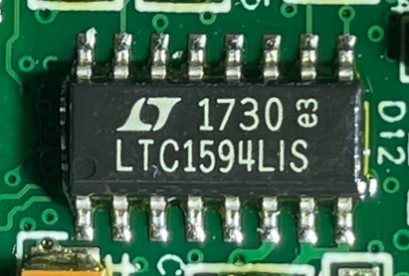

  • Microcircuit — photo

Photo: HUR War & Sanctions

Field effect transistor

Польовий транзистор

Infineon TechnologiesGermany

FR 5305 P748D HW K3

HUR War & Sanctions record ↗

  • Field effect transistor — photo

Photo: HUR War & Sanctions

300 mm 9M549 "Tornado-S" MLRS record ↗

300-mm guided missile 9M549 of the Tornado-S complex

  • Block BPV BAP processing satellite navigation signals
  • CY62157EV30L L-45ZSXI 1813 614000 F 04 microcircuit Cypress Semiconductor (Infineon Technologies)United States of Americarecord ↗ microcircuit, marked CY62157EV30L L-45ZSXI 1813 614000 F 04
  • Block TIUS 500 PNSK40-016 PISK 402139.016

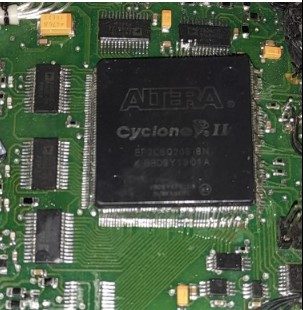

  • Cyclone II EP2C8Q20818N K BBD9Y1801A microcircuit Altera Corporation (Intel)United States of Americarecord ↗ microcircuit, marked Cyclone II EP2C8Q20818N K BBD9Y1801A
  • BCVM BY616 computer block
  • S29AL032D7OTA100 912BB403 G 04 microcircuit Spansion (Cypress Semiconductor, Infineon Technologies)United States of Americarecord ↗ microcircuit, marked S29AL032D7OTA100 912BB403 G 04
  • CY62157EV30L L-45ZSXI 1813 614000 F 04 microcircuit Cypress Semiconductor (Infineon Technologies)United States of Americarecord ↗ microcircuit, marked CY62157EV30L L-45ZSXI 1813 614000 F 04

Part records and photos: HUR War & Sanctions, Ukraine's Defence Intelligence database of foreign components found in Russian weapons, and the other sources named on each part. A marking, date code or country is given as the source records it.
