What the Shahed-238 is made of

29 documented parts and 29 photos, from recovered wreckage. Each part gives its marking, maker and country where known, and links the record it comes from. The system itself: Shahed-238.

Where the parts were made

United States of America 17
Amphenol Corporation, Maxim Integrated Products (Analog Devices), Enpirion Inc. (Intel), Analog Devices, Intel Corporation, Xilinx Inc. (AMD), Texas Instruments, CTS Corporation, International Rectifier (Infineon Technologies), ON Semiconductor (ONSEMI)
Switzerland 5
STMicroelectronics, U-blox
Canada 1
Tallysman Wireless Inc. (Calian Group Ltd.)
Netherlands 1
NXP Semiconductors
Ukraine 1
Радіореле
Taiwan 1
Winbond Electronics Corporation
Germany 1
VARTA
People's Republic of China 1
Sonikcell

Sources

Ukrainian pages read alongside the English: same items, markings and text.

Shahed-238 UAV

Satellite navigation system module

  • MS3112E14-19P Connector Amphenol CorporationUnited States of Americarecord ↗ Connector, marked MS3112E14-19P
  • MIMXRT1052 Processor NXP SemiconductorsNetherlandsrecord ↗ Processor, marked MIMXRT1052
  • MAX3232 RS232 transmitter Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ RS232 transmitter, marked MAX3232
  • EN63A0QI Voltage converter Enpirion Inc. (Intel)United States of Americarecord ↗ Voltage converter, marked EN63A0QI
  • AD9361BBCZ Two-channel receiver Analog DevicesUnited States of Americarecord ↗ Two-channel receiver, marked AD9361BBCZ
  • EN6363QI Voltage converter Intel CorporationUnited States of Americarecord ↗ Voltage converter, marked EN6363QI
  • XILINX ZYNQ Processor Xilinx Inc. (AMD)United States of Americarecord ↗ Processor, marked XILINX ZYNQ

Flight controller

  • РЕС47 Relay РадіорелеUkrainerecord ↗ Relay, marked РЕС47
  • LM258 Operational amplifier Texas InstrumentsUnited States of Americarecord ↗ Operational amplifier, marked LM258

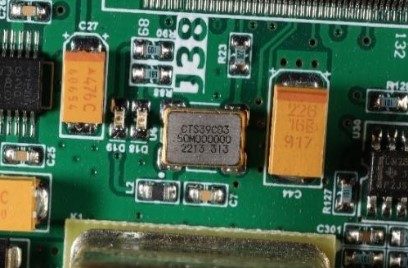

  • CTS39CB3 Clock oscillator CTS CorporationUnited States of Americarecord ↗ Clock oscillator, marked CTS39CB3
  • MB3238Q Linear driver Texas InstrumentsUnited States of Americarecord ↗ Linear driver, marked MB3238Q
  • VP230 Transistor Texas InstrumentsUnited States of Americarecord ↗ Transistor, marked VP230
  • ULN2004 Transistor STMicroelectronicsSwitzerlandrecord ↗ Transistor, marked ULN2004
  • DSP TMS320 Processor Texas InstrumentsUnited States of Americarecord ↗ Processor, marked DSP TMS320

Inertial navigation system module

  • ADXL103 [16] Accelerometer Analog DevicesUnited States of Americarecord ↗ Accelerometer, marked ADXL103 [16]
  • LF33A Voltage regulator STMicroelectronicsSwitzerlandrecord ↗ Voltage regulator, marked LF33A
  • WINBOND 25Q16JV Flash memory Winbond Electronics CorporationTaiwanrecord ↗ Flash memory, marked WINBOND 25Q16JV
  • UBLOX M8030-KT GNSS signal receiver U-bloxSwitzerlandrecord ↗ GNSS signal receiver, marked UBLOX M8030-KT
  • MAXIM MAX3221 RS232 line driver Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ RS232 line driver, marked MAXIM MAX3221
  • STM32F405 Processor ARM STMicroelectronicsSwitzerlandrecord ↗ Processor ARM, marked STM32F405

Engine control unit

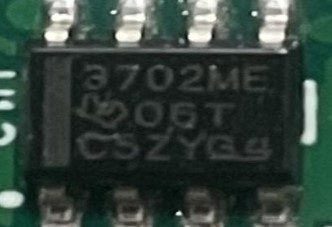

  • 3702ME Voltage stabilizer Texas InstrumentsUnited States of Americarecord ↗ Voltage stabilizer, marked 3702ME

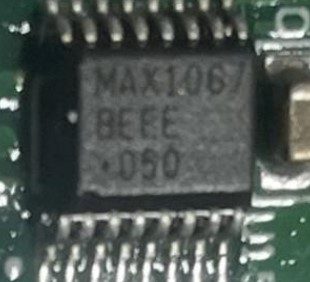

  • MAX1067 Analog-digital converter Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ Analog-digital converter, marked MAX1067

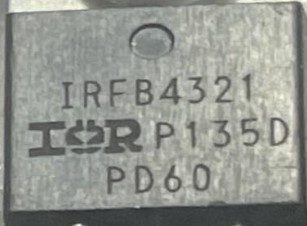

  • IRFB4321 Transistor International Rectifier (Infineon Technologies)United States of Americarecord ↗ Transistor, marked IRFB4321
  • VARTA CR2032 Battery VARTAGermanyrecord ↗ Battery, marked VARTA CR2032

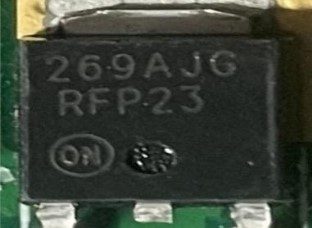

  • 269AJG Voltage regulator ON Semiconductor (ONSEMI)United States of Americarecord ↗ Voltage regulator, marked 269AJG

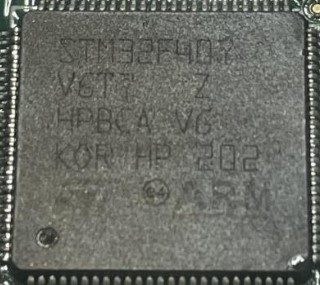

  • STM32F407VGT7 Processor ARM STMicroelectronicsSwitzerlandrecord ↗ Processor ARM, marked STM32F407VGT7

Engine

Двигун

Not identified

№10089982

PBS TJ150 (Czech Republic) or its copy Tulou-10 (Iran)

HUR War & Sanctions record ↗

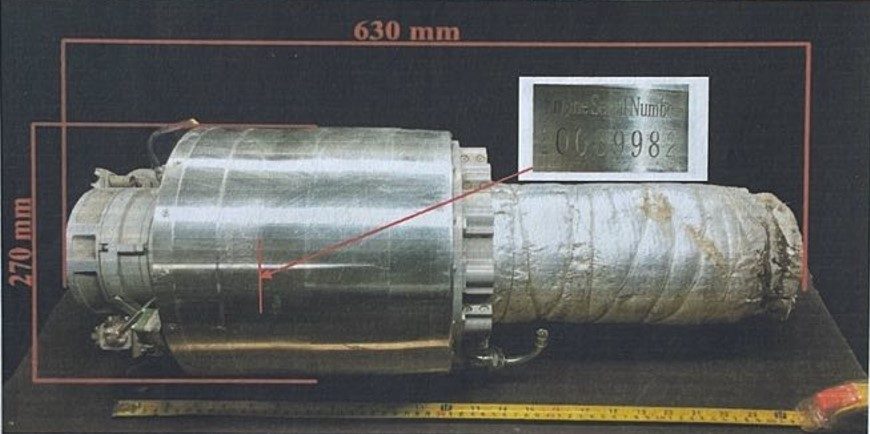

  • Engine — photo

Photo: HUR War & Sanctions

Antenna for receiving CRPA satellite signals

Антена прийому супутникових сигналів CRPA

Tallysman Wireless Inc. (Calian Group Ltd.)Canada

33-1721-05-0150 20210819

HUR War & Sanctions record ↗

  • Antenna for receiving CRPA satellite signals — photo

Photo: HUR War & Sanctions

Battery protection and charge control module

Модуль захисту та контролю заряду батареї

SonikcellPeople's Republic of China

SBMS Li-ion-6S 10A

HUR War & Sanctions record ↗

  • Battery protection and charge control module — photo

Photo: HUR War & Sanctions

Part records and photos: HUR War & Sanctions, Ukraine's Defence Intelligence database of foreign components found in Russian weapons, and the other sources named on each part. A marking, date code or country is given as the source records it.
