What the Shahed-131 is made of

82 documented parts and 85 photos, from recovered wreckage. Each part gives its marking, maker and country where known, and links the record it comes from. The system itself: Shahed-131.

Where the parts were made

United States of America 61
IXYS, New Jersey Semiconductor Products Inc, Texas Instruments, Hitec Group USA, Inc., Vishay Intertechnology, Inc., CTS Corporation, Analog Devices, Hittite Microwave Corporation, Maxim Integrated Products (Analog Devices), Semtech Corporation, Spansion (Cypress Semiconductor, Infineon Technologies), Xilinx Inc. (AMD), Microchip Technology Inc., International Rectifier (Infineon Technologies), Fairchild Semiconductor (ON Semiconductor), Hemisphere GNSS, Mercury, Silex technology America, inc.
Switzerland 5
STMicroelectronics, U-blox
People's Republic of China 4
BCD Semiconductor Manufacturing Limited (BCD Semi), SMC Diode Solutions, Thinki Semiconductor Co., Ltd. (ThinkiSemi), Brushless fan
Taiwan 4
Won-Top Electronics Co., Ltd., Winbond Electronics Corporation, Delta Electronics, Inc, Token Electronics Industry Co
Japan 3
Panasonic, Murata
Netherlands 2
NXP Semiconductors
Canada 1
Tallysman Wireless Inc. (Calian Group Ltd.)
Germany 1
Infineon Technologies
Republic of Korea 1
System Logic Semiconductor

Sources

Ukrainian pages read alongside the English: same items, markings and text.

UAV Shahed-131

Block of power supply voltage stabilizers

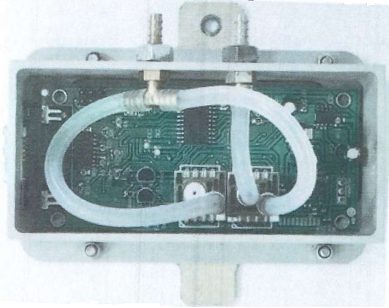

  • AZ1117H-1.2TRG1 Microcircuit BCD Semiconductor Manufacturing Limited (BCD Semi)People's Republic of Chinarecord ↗ Microcircuit, marked AZ1117H-1.2TRG1

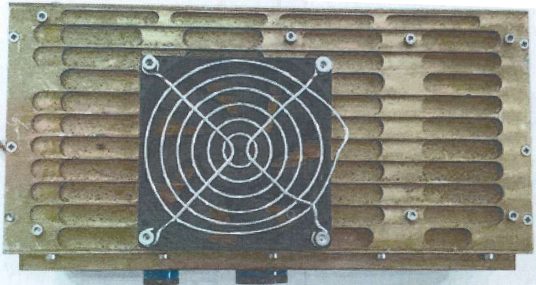

  • 83CNQ100SM Microcircuit SMC Diode SolutionsPeople's Republic of Chinarecord ↗ Microcircuit, marked 83CNQ100SM

Voltage normalization unit

  • DSEI30-06A Diode IXYSUnited States of Americarecord ↗ Diode, marked DSEI30-06A
  • U30D60C Diode Won-Top Electronics Co., Ltd.Taiwanrecord ↗ Diode, marked U30D60C

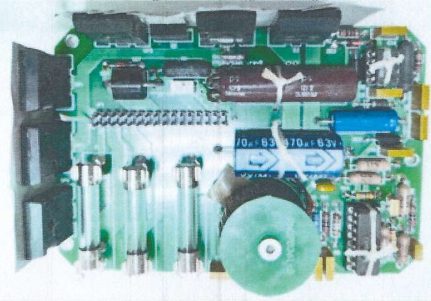

  • U30D60A Diode Thinki Semiconductor Co., Ltd. (ThinkiSemi)People's Republic of Chinarecord ↗ Diode, marked U30D60A

Product

  • The board is a navigation platform

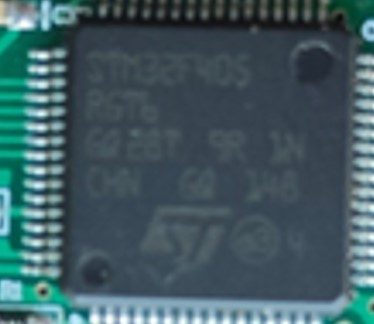

  • STM32F405RGT6 Microcontroller with built-in flash memory STMicroelectronicsSwitzerlandrecord ↗ Microcontroller with built-in flash memory, marked STM32F405RGT6
  • Box ADI488-0030

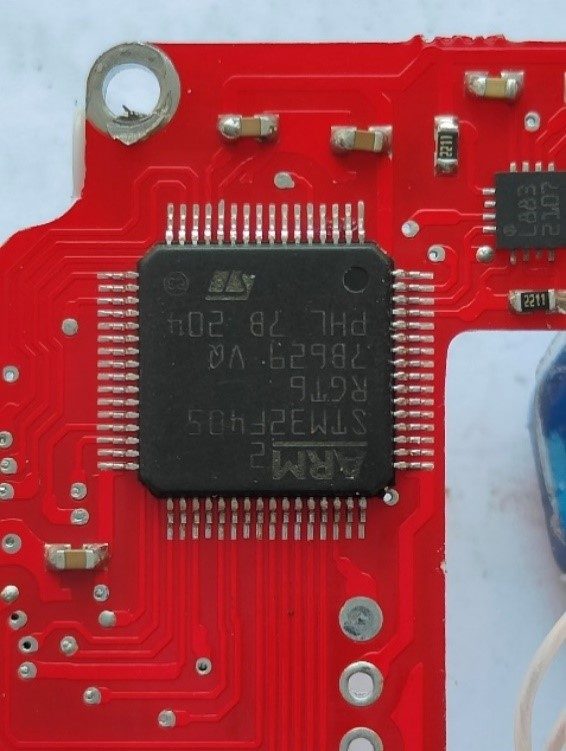

  • STM32F405 RGT6 78629 VQ PHL 7B 204 32-bit processor STMicroelectronicsSwitzerlandrecord ↗ 32-bit processor, marked STM32F405 RGT6 78629 VQ PHL 7B 204

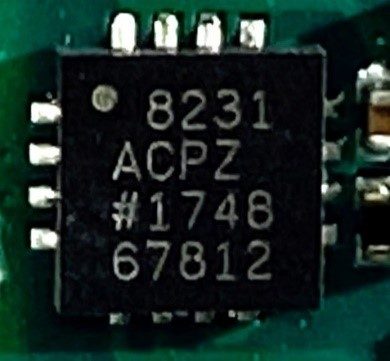

  • 8231 ACPZ #1748 67812 Output voltage/current driver with output signal range Analog DevicesUnited States of Americarecord ↗ Output voltage/current driver with output signal range, marked 8231 ACPZ #1748 67812

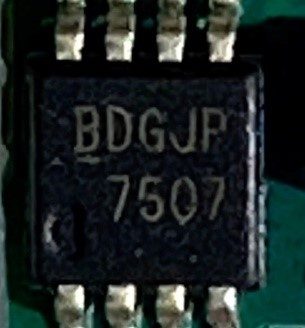

  • BDGJP 7507 Integrated circuit MurataJapanrecord ↗ Integrated circuit, marked BDGJP 7507

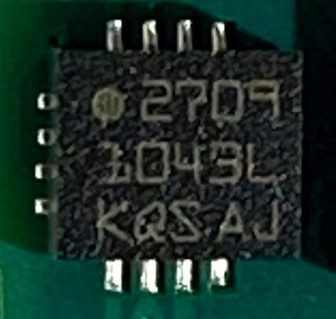

  • 2709 1043L KQSAJ Triple balanced general purpose mixer that can be used as a frequency converter Hittite Microwave CorporationUnited States of Americarecord ↗ Triple balanced general purpose mixer that can be used as a frequency converter, marked 2709 1043L KQSAJ
  • 7689 BCPZ #1727 8025 16-bit analog-to-digital converter (ADC) Analog DevicesUnited States of Americarecord ↗ 16-bit analog-to-digital converter (ADC), marked 7689 BCPZ #1727 8025
  • The board is a navigation platform

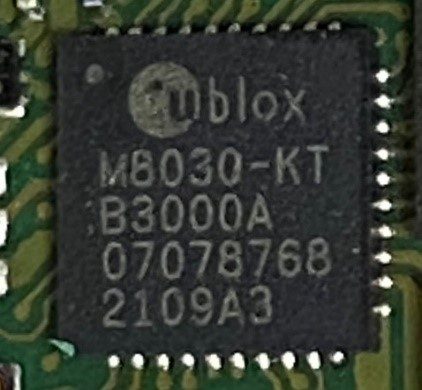

  • M8030-KT B3000A 07078768 2109A3 GPS tracker chip U-bloxSwitzerlandrecord ↗ GPS tracker chip, marked M8030-KT B3000A 07078768 2109A3

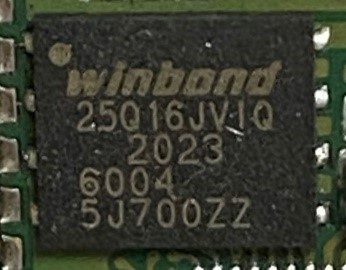

  • 25Q16JVIQ 2023 6004 5J700ZZ Serial flash memory (16 Mbit) Winbond Electronics CorporationTaiwanrecord ↗ Serial flash memory (16 Mbit), marked 25Q16JVIQ 2023 6004 5J700ZZ
  • F10AQ P185 G4 Synchronous step-down regulator Texas InstrumentsUnited States of Americarecord ↗ Synchronous step-down regulator, marked F10AQ P185 G4
  • MAX3221 CAE 2040 V to 5.5 V RS 232 transceiver with automatic shutdown Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ V to 5.5 V RS 232 transceiver with automatic shutdown, marked MAX3221 CAE 2040
  • SPRD SC2112A-W P09575 AMA3 1138 Synchronous step-down regulator Semtech CorporationUnited States of Americarecord ↗ Synchronous step-down regulator, marked SPRD SC2112A-W P09575 AMA3 1138
  • lf33a 6KOEX322 Very low voltage drop regulator with inhibit STMicroelectronicsSwitzerlandrecord ↗ Very low voltage drop regulator with inhibit, marked lf33a 6KOEX322

IMU is an inertial measurement unit

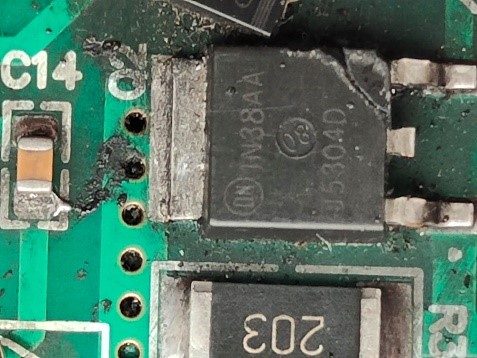

  • 1N38AA J5304D Germanium diode New Jersey Semiconductor Products IncUnited States of Americarecord ↗ Germanium diode, marked 1N38AA J5304D

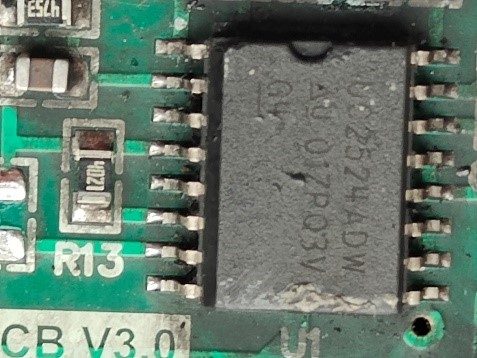

  • UC2524ADW 017PQ3V Advanced regulating pulse width modulator Texas InstrumentsUnited States of Americarecord ↗ Advanced regulating pulse width modulator, marked UC2524ADW 017PQ3V

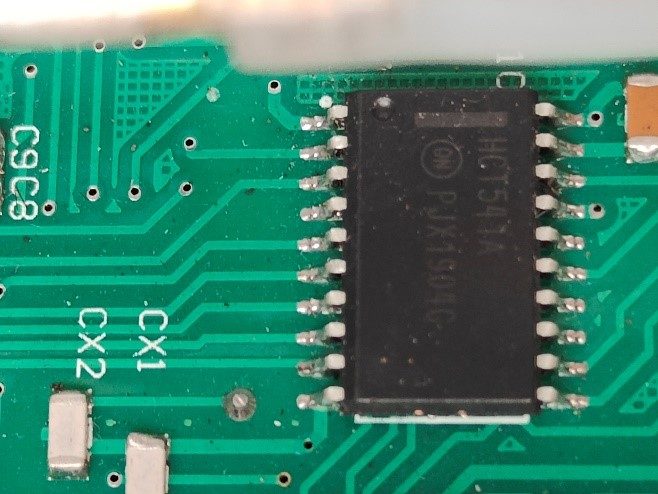

  • HCT541A PJX1904C Octal buffer and linear driver Texas InstrumentsUnited States of Americarecord ↗ Octal buffer and linear driver, marked HCT541A PJX1904C

Executive mechanisms of control bodies

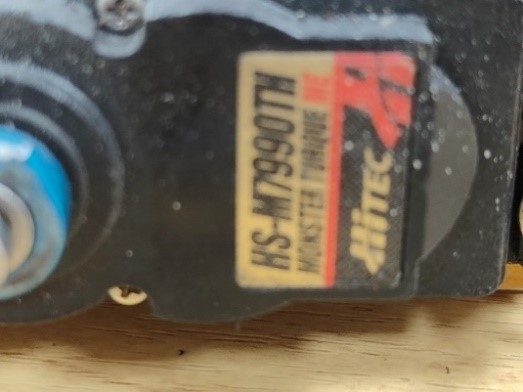

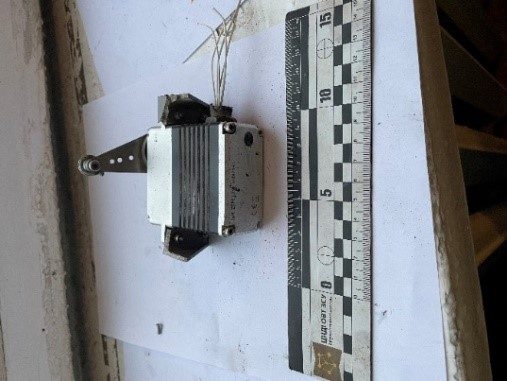

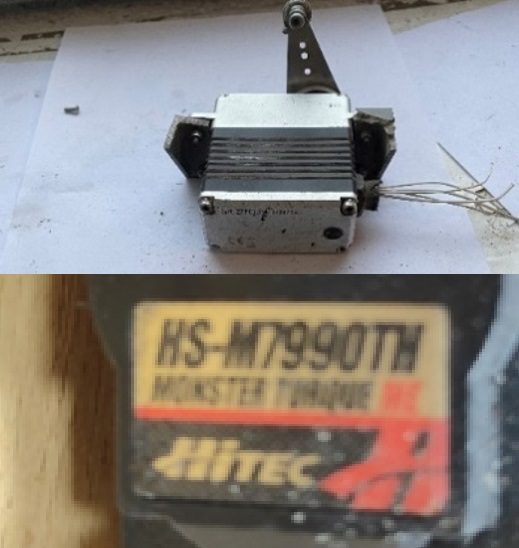

  • HS-M7990TH Servo "Monster Torque" Hitec Group USA, Inc.United States of Americarecord ↗ Servo "Monster Torque", marked HS-M7990TH Servo "Monster Torque", marked HS-M7990TH Servo "Monster Torque", marked HS-M7990TH

Engine power control unit

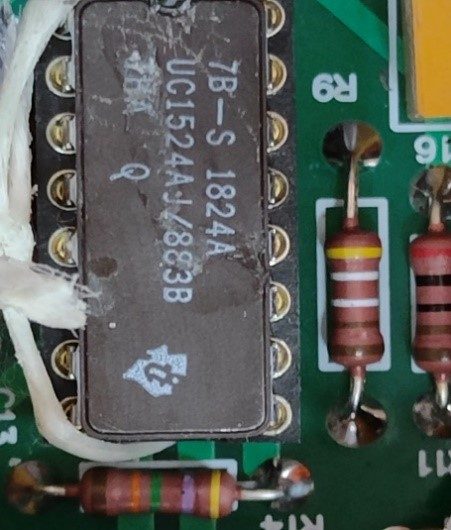

  • 7B-S 1824A UC1524AJ/883B Advanced regulating pulse width modulator Texas InstrumentsUnited States of Americarecord ↗ Advanced regulating pulse width modulator, marked 7B-S 1824A UC1524AJ/883B

Antenna grid

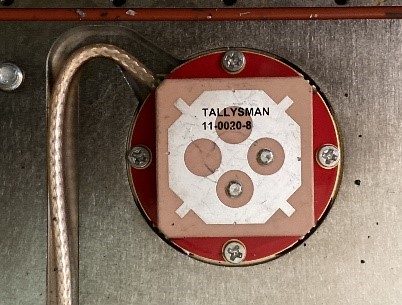

  • 11-0020-8 Antenna grid Tallysman Wireless Inc. (Calian Group Ltd.)Canadarecord ↗ Antenna grid, marked 11-0020-8

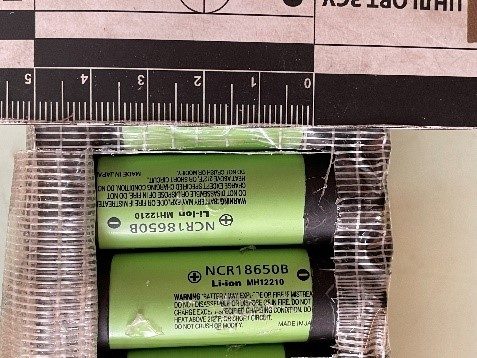

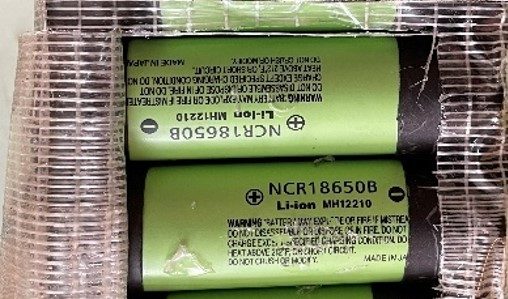

Battery unit

PDU - power distribution unit

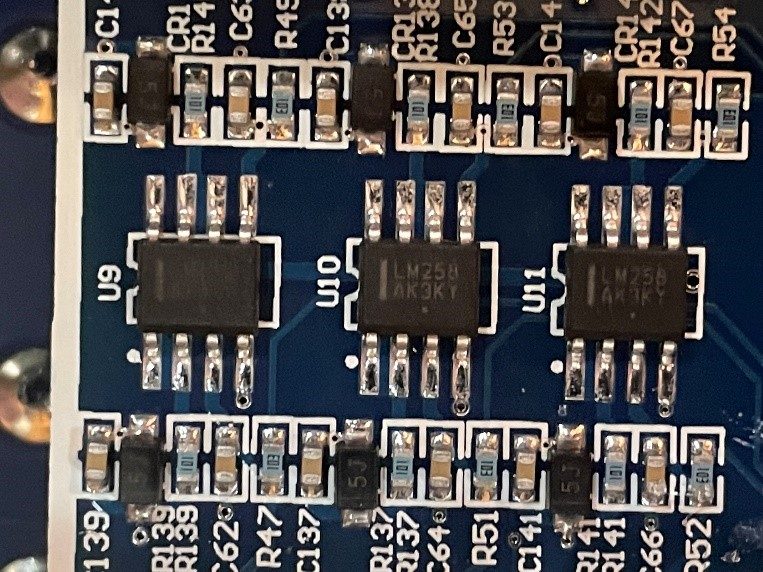

  • LM258 AK3KY Dual operational amplifier with a single power supply Texas InstrumentsUnited States of Americarecord ↗ Dual operational amplifier with a single power supply, marked LM258 AK3KY

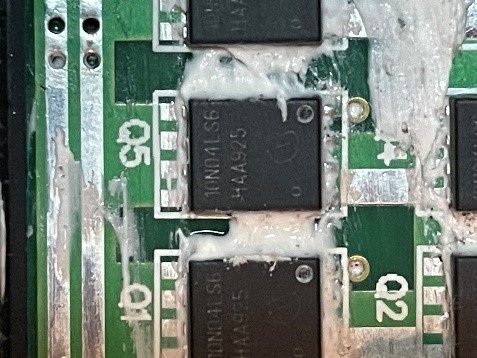

  • 10N04LS6 4AA925 OptiMOSTM power transistor Infineon TechnologiesGermanyrecord ↗ OptiMOSTM power transistor, marked 10N04LS6 4AA925

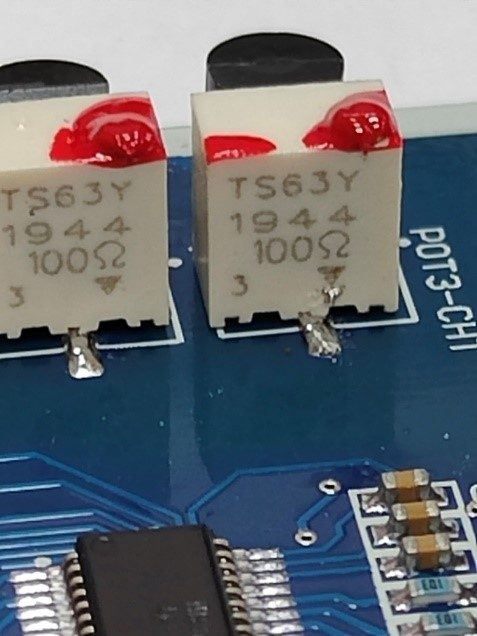

  • TS63Y 1944 100ꭥ 1/4" Multi-Turn Miniature Square Kermet Trimmer for Surface Mount, Fully Sealed Vishay Intertechnology, Inc.United States of Americarecord ↗ 1/4" Multi-Turn Miniature Square Kermet Trimmer for Surface Mount, Fully Sealed, marked TS63Y 1944 100ꭥ

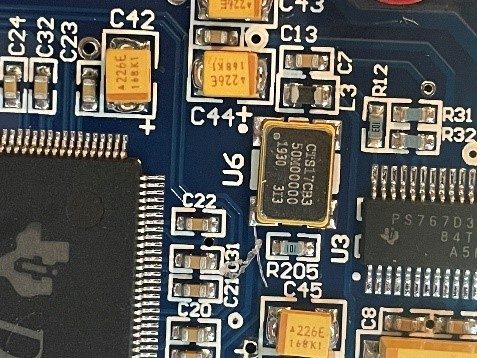

  • CTS17CB3 50M00000 Clock oscillator CTS CorporationUnited States of Americarecord ↗ Clock oscillator, marked CTS17CB3 50M00000

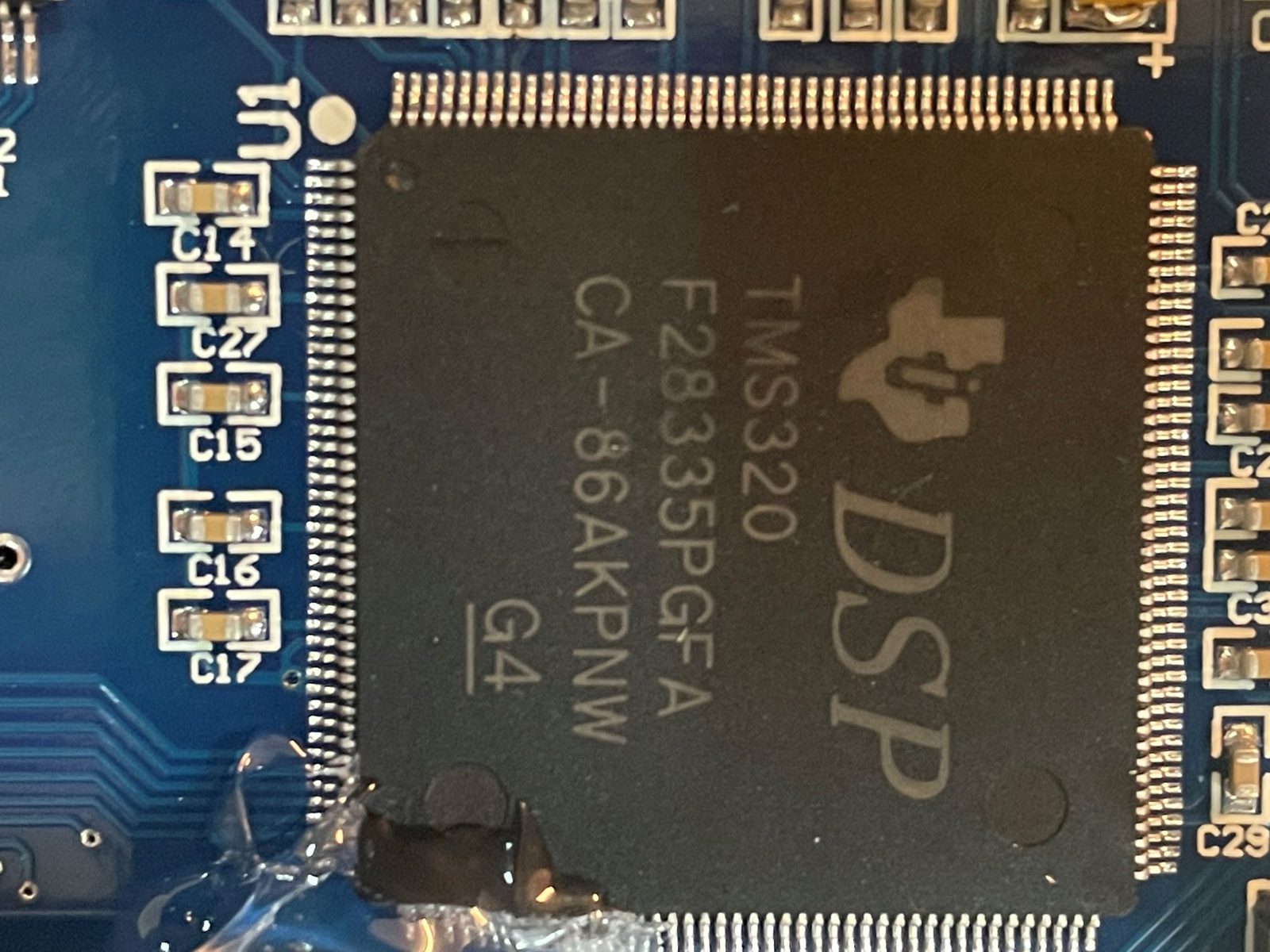

  • DSP TMS320 F28335PGFA CA-86AKPNW A real-time microcontroller with a connection manager Texas InstrumentsUnited States of Americarecord ↗ A real-time microcontroller with a connection manager, marked DSP TMS320 F28335PGFA CA-86AKPNW

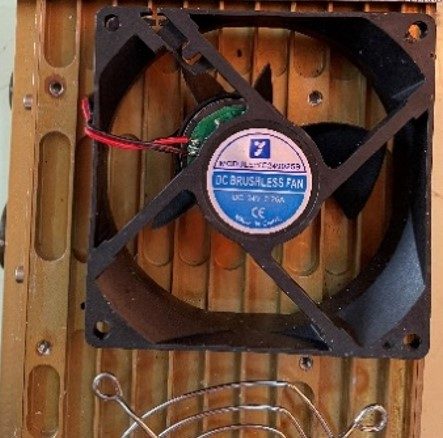

  • YC249025B Cooling fan Brushless fanPeople's Republic of Chinarecord ↗ Cooling fan, marked YC249025B

Transmission unit (GNSS transceiver module) and SUPPLY/DATA

  • The board is a navigation platform

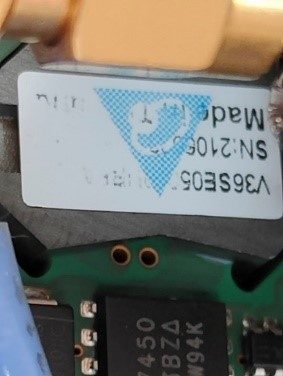

  • V36SE05010NMFA Delphi Series V36SE, power modules, up to 50W Delta Electronics, IncTaiwanrecord ↗ Delphi Series V36SE, power modules, up to 50W, marked V36SE05010NMFA

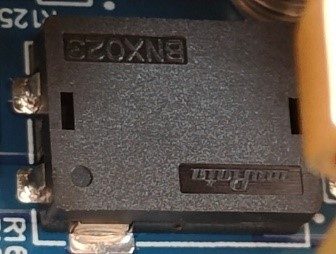

  • BNX023 Ultra-high-efficiency noise filter of the SMD type MurataJapanrecord ↗ Ultra-high-efficiency noise filter of the SMD type, marked BNX023

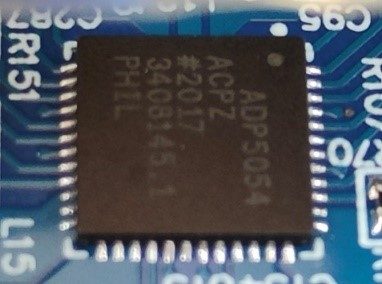

  • ADP5054 ACPZ #2017 3408145.1 PH1L Voltage regulator Analog DevicesUnited States of Americarecord ↗ Voltage regulator, marked ADP5054 ACPZ #2017 3408145.1 PH1L
  • NH245 0AK C35T 8-bit transceiver bus with dual power supply Texas InstrumentsUnited States of Americarecord ↗ 8-bit transceiver bus with dual power supply, marked NH245 0AK C35T
  • FL127SBF10 009GG003 A MirrorBit® non-volatile flash memory Spansion (Cypress Semiconductor, Infineon Technologies)United States of Americarecord ↗ MirrorBit® non-volatile flash memory, marked FL127SBF10 009GG003 A
  • MAX3223E AP1423 RS-232 transceiver with automatic shutdown Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ RS-232 transceiver with automatic shutdown, marked MAX3223E AP1423

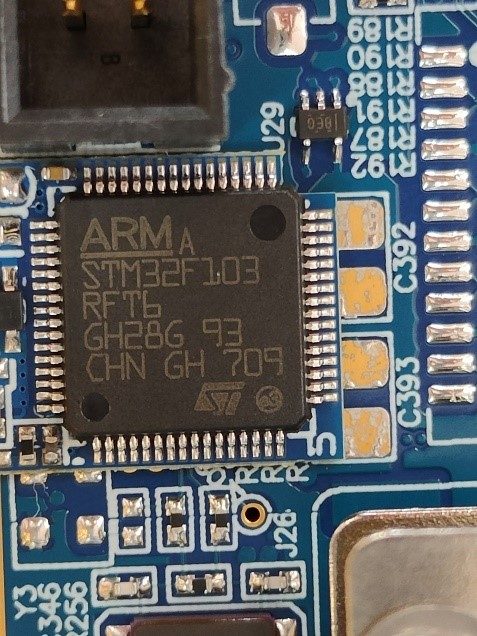

  • ARM STM32F103 RFT6 GH28G 93 CHN GH 709 32-bit microcontroller on the base STMicroelectronicsSwitzerlandrecord ↗ 32-bit microcontroller on the base, marked ARM STM32F103 RFT6 GH28G 93 CHN GH 709

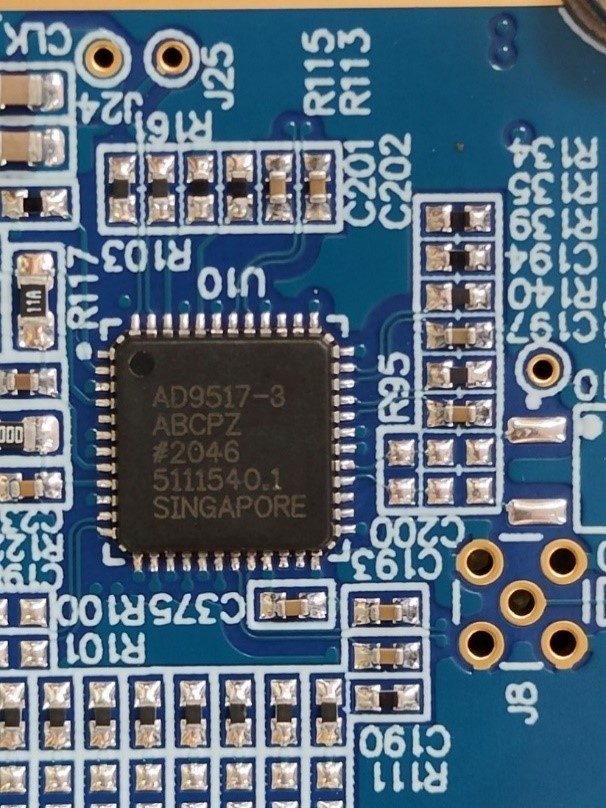

  • VCO 2,0 ГГц AD9517-3 ABCPZ #2046 5111540.1 Clock frequency generator with 12 outputs and built-in Analog DevicesUnited States of Americarecord ↗ Clock frequency generator with 12 outputs and built-in, marked VCO 2,0 ГГц AD9517-3 ABCPZ #2046 5111540.1
  • Analog Devices AD9361BBCZ #2041 3533058.1 × 2 RF transceiver with built-in 12-bit DAC and ADC Analog DevicesUnited States of Americarecord ↗ × 2 RF transceiver with built-in 12-bit DAC and ADC, marked Analog Devices AD9361BBCZ #2041 3533058.1
  • KINTEX-7 XC7K160T FFG676ABX2029 DD6179075A Programmable gate matrix Xilinx Inc. (AMD)United States of AmericaMade 2020record ↗ Programmable gate matrix, marked KINTEX-7 XC7K160T FFG676ABX2029 DD6179075A

Flight Control System Unit FCU

  • Functional module

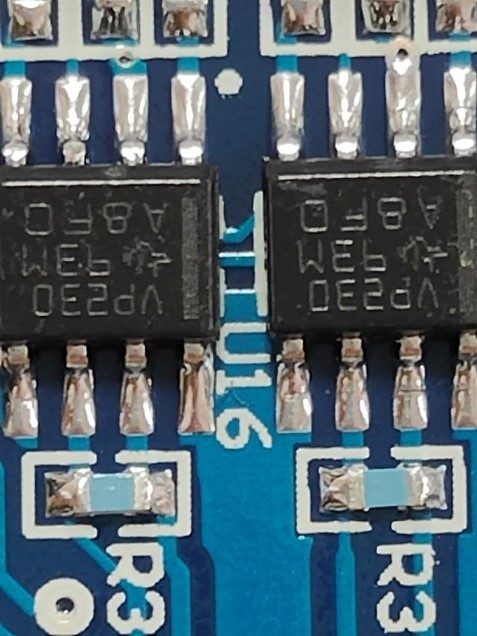

  • VP230 93M A8FO MOH transistor Microchip Technology Inc.United States of Americarecord ↗ MOH transistor, marked VP230 93M A8FO

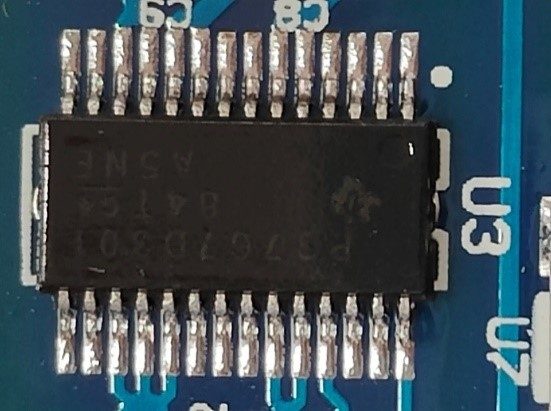

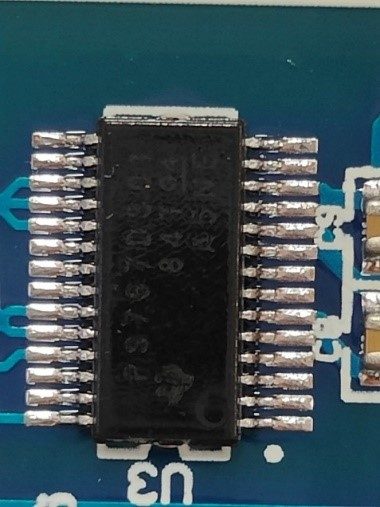

  • PS767D301 84T G4 A5NE A linear regulator with two outputs and a small drop Texas InstrumentsUnited States of Americarecord ↗ A linear regulator with two outputs and a small drop, marked PS767D301 84T G4 A5NE

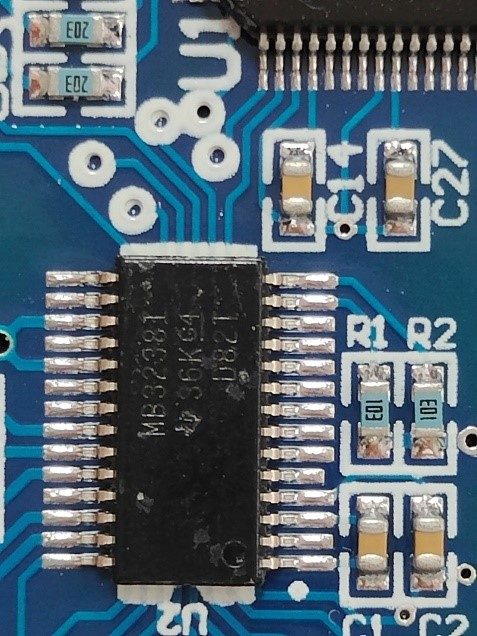

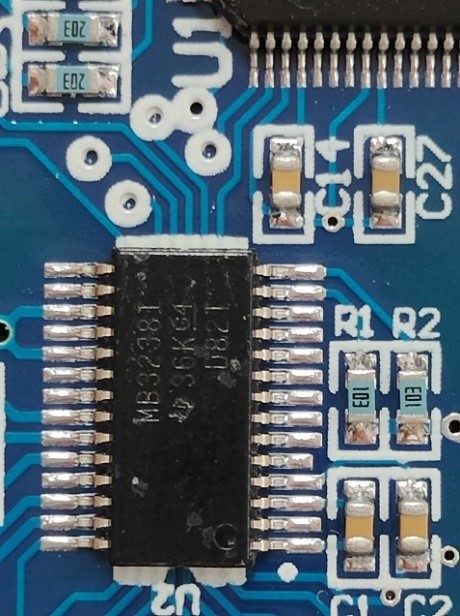

  • MB3238I 36KG4 D82T Line driver/receiver with ESR protection Texas InstrumentsUnited States of Americarecord ↗ Line driver/receiver with ESR protection, marked MB3238I 36KG4 D82T

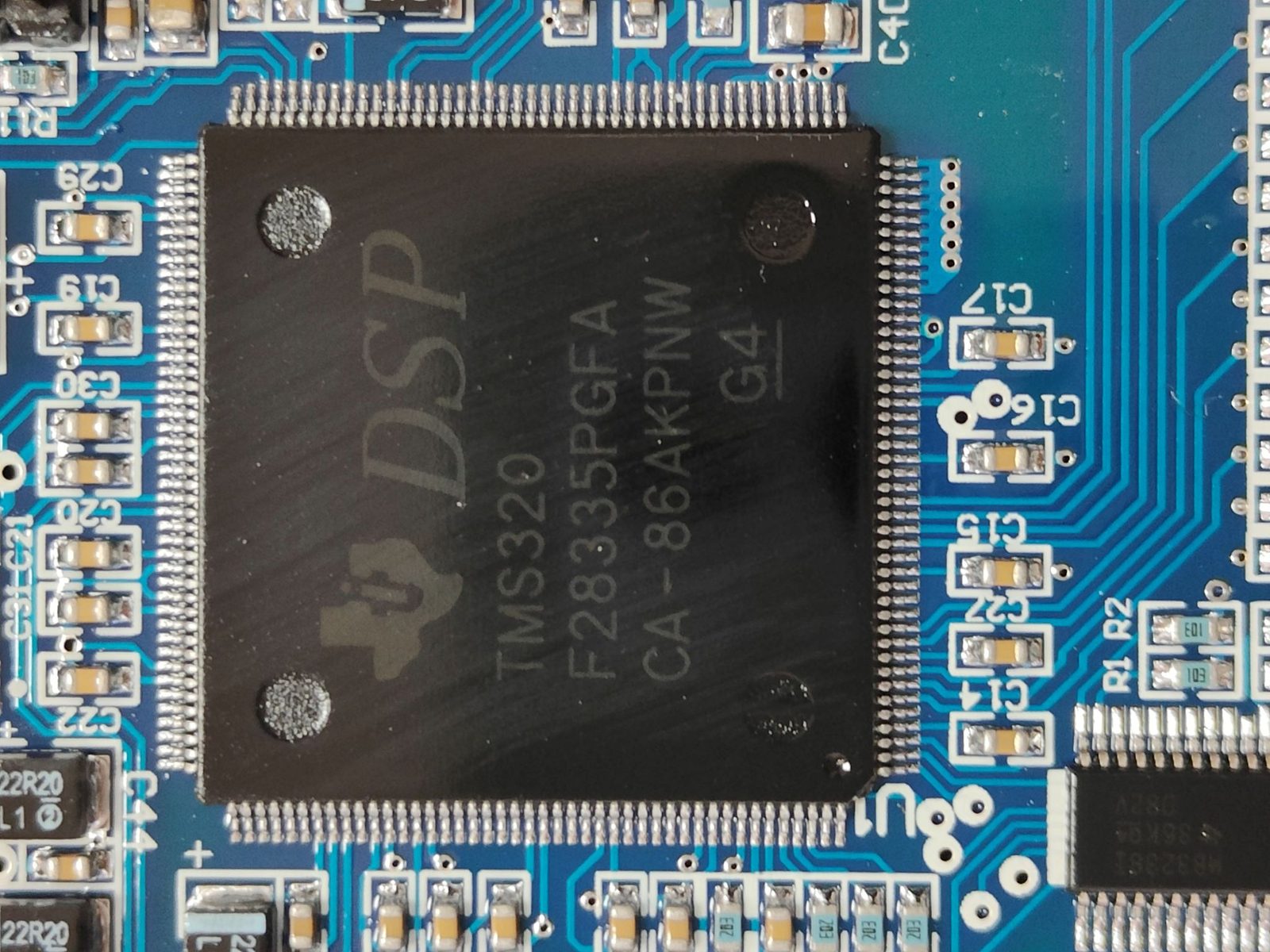

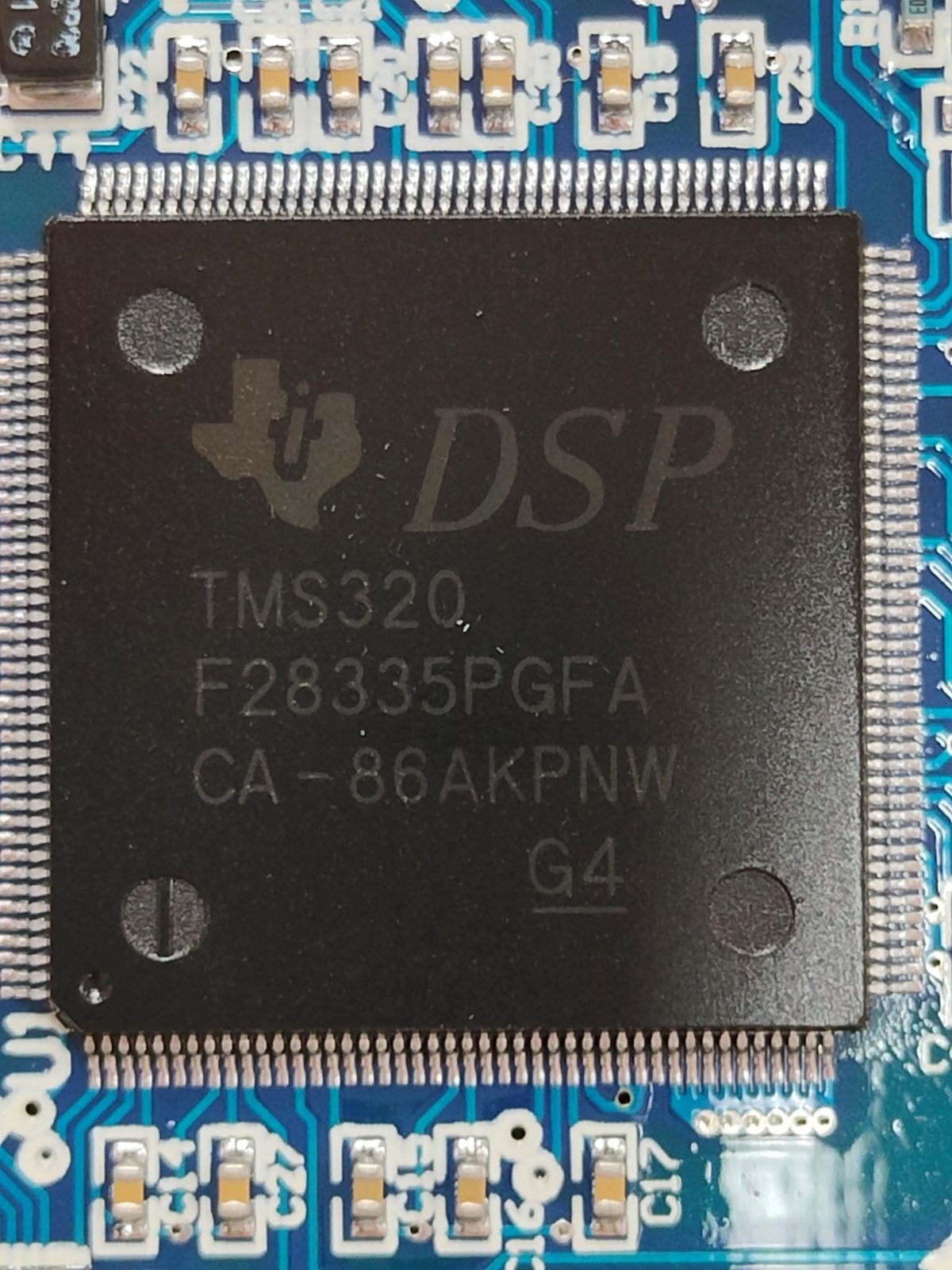

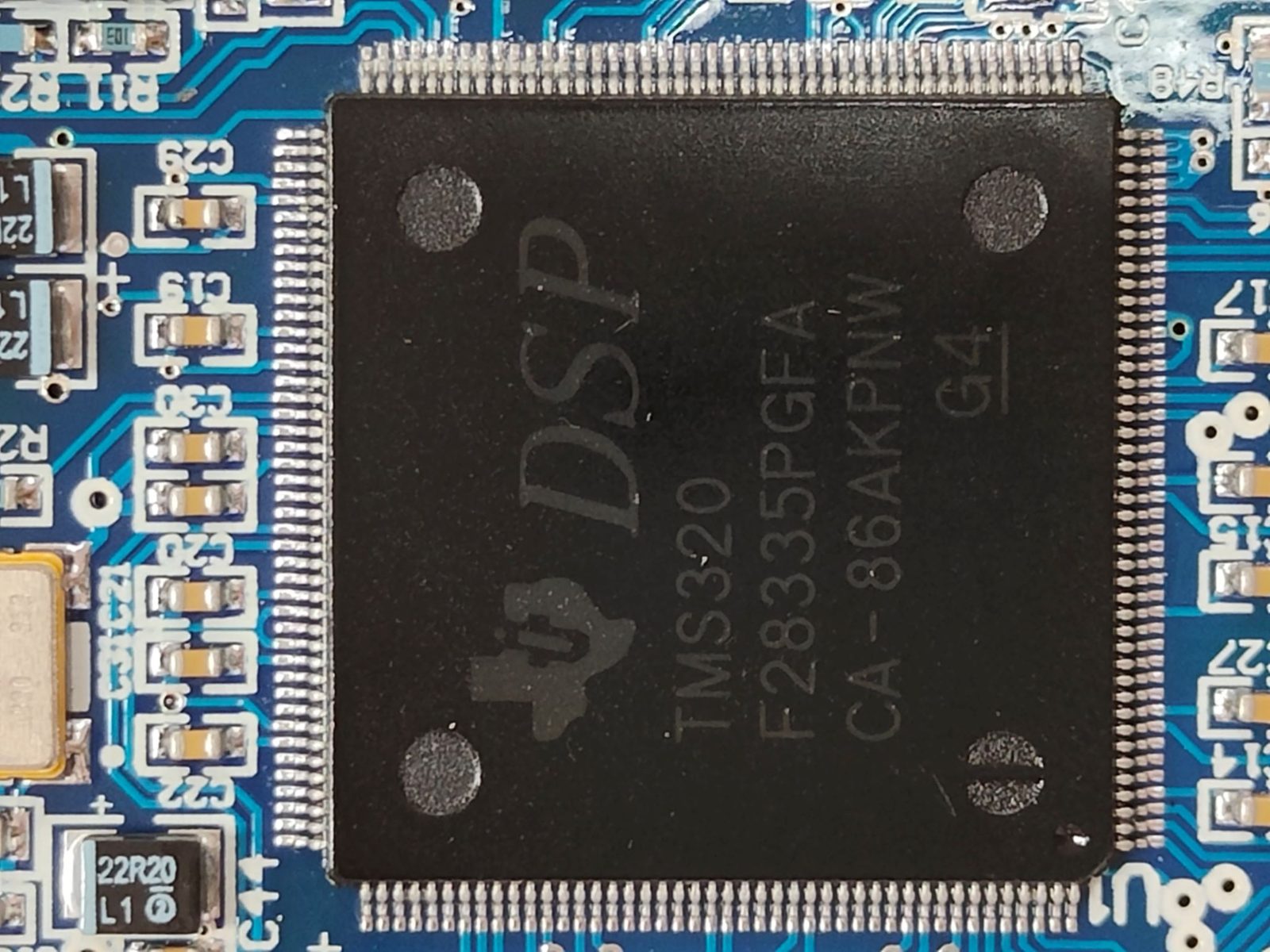

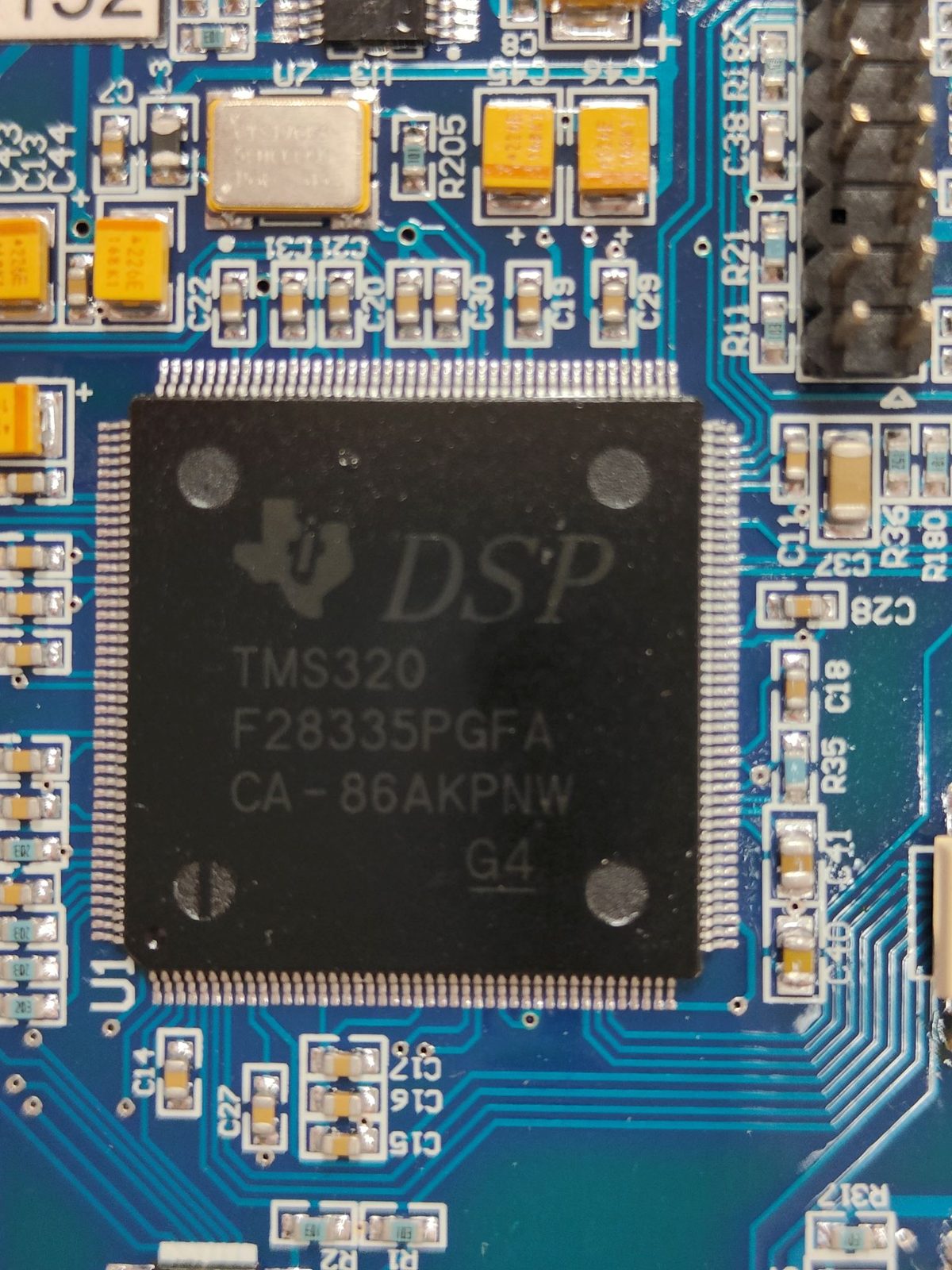

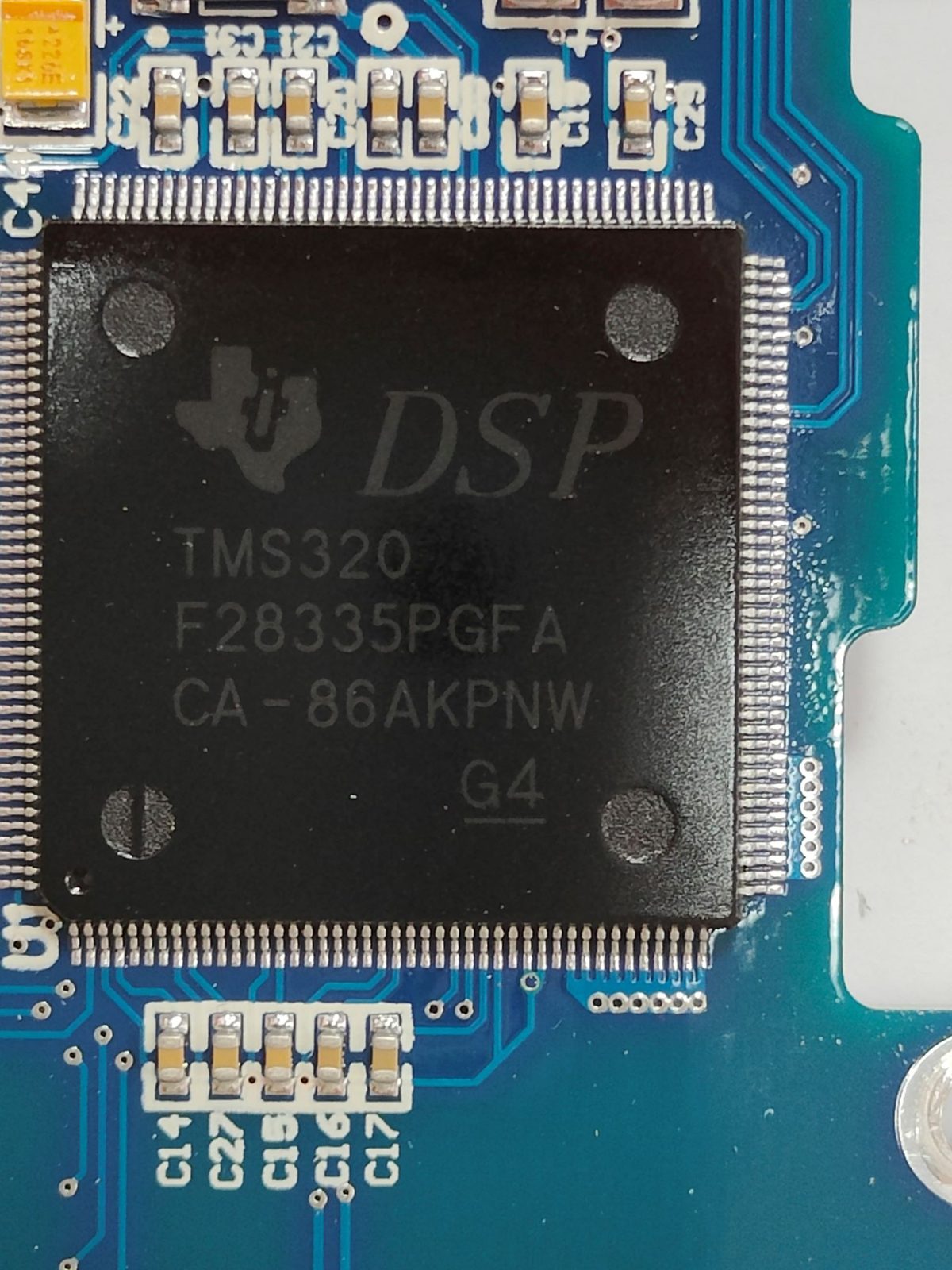

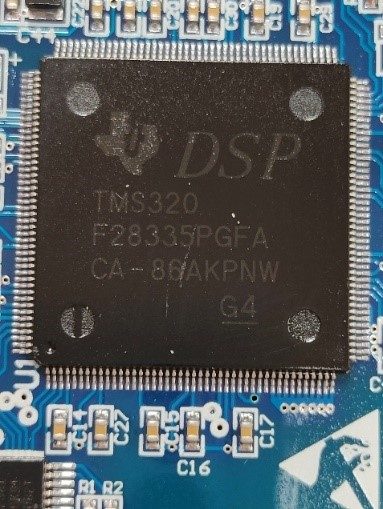

  • TMS320 F28335PGFA CA-86AKPNW Real-time microcontroller with DSP connection manager Texas InstrumentsUnited States of Americarecord ↗ Real-time microcontroller with DSP connection manager, marked TMS320 F28335PGFA CA-86AKPNW
  • VP230 93M A8FO MOH transistor Microchip Technology Inc.United States of Americarecord ↗ MOH transistor, marked VP230 93M A8FO
  • PS767D301 84T G4 A5NE A linear regulator with two outputs and a small drop Texas InstrumentsUnited States of Americarecord ↗ A linear regulator with two outputs and a small drop, marked PS767D301 84T G4 A5NE
  • MB3238I 36KG4 D82T Line driver/receiver with ESR protection Texas InstrumentsUnited States of Americarecord ↗ Line driver/receiver with ESR protection, marked MB3238I 36KG4 D82T
  • TMS320 F28335PGFA CA-86AKPNW Real-time microcontroller with DSP connection manager Texas InstrumentsUnited States of Americarecord ↗ Real-time microcontroller with DSP connection manager, marked TMS320 F28335PGFA CA-86AKPNW
  • VP230 93M A8FO MOH transistor Microchip Technology Inc.United States of Americarecord ↗ MOH transistor, marked VP230 93M A8FO
  • MB3238I 36KG4 D82T Line driver/receiver with ESR protection Texas InstrumentsUnited States of Americarecord ↗ Line driver/receiver with ESR protection, marked MB3238I 36KG4 D82T
  • PS767D301 84T G4 A5NE A linear regulator with two outputs and a small drop Texas InstrumentsUnited States of Americarecord ↗ A linear regulator with two outputs and a small drop, marked PS767D301 84T G4 A5NE
  • TMS320 F28335PGFA CA-86AKPNW Real-time microcontroller with DSP connection manager Texas InstrumentsUnited States of Americarecord ↗ Real-time microcontroller with DSP connection manager, marked TMS320 F28335PGFA CA-86AKPNW
  • VP230 93M A8FO MOH transistor Microchip Technology Inc.United States of Americarecord ↗ MOH transistor, marked VP230 93M A8FO
  • PS767D301 84T G4 A5NE A linear regulator with two outputs and a small drop Texas InstrumentsUnited States of Americarecord ↗ A linear regulator with two outputs and a small drop, marked PS767D301 84T G4 A5NE
  • MB3238I 36KG4 D82T Line driver/receiver with ESR protection Texas InstrumentsUnited States of Americarecord ↗ Line driver/receiver with ESR protection, marked MB3238I 36KG4 D82T
  • TMS320 F28335PGFA CA-86AKPNW Real-time microcontroller with DSP connection manager Texas InstrumentsUnited States of Americarecord ↗ Real-time microcontroller with DSP connection manager, marked TMS320 F28335PGFA CA-86AKPNW
  • VP230 93M A8FO MOH transistor Microchip Technology Inc.United States of Americarecord ↗ MOH transistor, marked VP230 93M A8FO

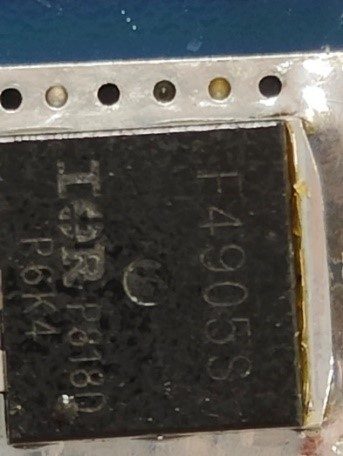

  • F4905S P8180 P6K4 Integrated circuit International Rectifier (Infineon Technologies)United States of Americarecord ↗ Integrated circuit, marked F4905S P8180 P6K4

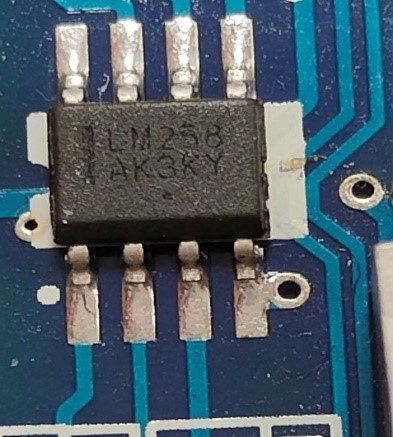

  • LM25B AK3KY Pulse voltage regulator Texas InstrumentsUnited States of Americarecord ↗ Pulse voltage regulator, marked LM25B AK3KY

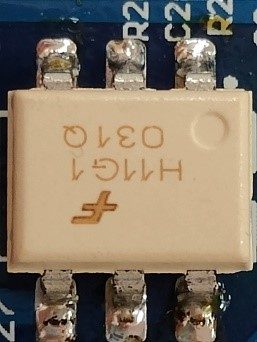

  • H11G1 O31Q 6-pin DIP optoisolator Darlington output (built-in resistors) Fairchild Semiconductor (ON Semiconductor)United States of Americarecord ↗ 6-pin DIP optoisolator Darlington output (built-in resistors), marked H11G1 O31Q
  • MB3238I 36KG4 D82T Line driver/receiver with ESR protection Texas InstrumentsUnited States of Americarecord ↗ Line driver/receiver with ESR protection, marked MB3238I 36KG4 D82T
  • TS63Y 1944 100ꭥ 1/4" Multi-Turn Miniature Square Kermet Trimmer for Surface Mount, Fully Sealed Vishay Intertechnology, Inc.United States of Americarecord ↗ 1/4" Multi-Turn Miniature Square Kermet Trimmer for Surface Mount, Fully Sealed, marked TS63Y 1944 100ꭥ
  • PS767D301 84T G4 A5NE A linear regulator with two outputs and a small drop Texas InstrumentsUnited States of Americarecord ↗ A linear regulator with two outputs and a small drop, marked PS767D301 84T G4 A5NE
  • TMS320 F28335PGFA CA-86AKPNW Real-time microcontroller with DSP connection manager Texas InstrumentsUnited States of Americarecord ↗ Real-time microcontroller with DSP connection manager, marked TMS320 F28335PGFA CA-86AKPNW
  • 93M A8FO MOH-transistor VP230 Microchip Technology Inc.United States of Americarecord ↗ MOH-transistor VP230, marked 93M A8FO
  • MB3238I 36KG4 D82T Line driver/receiver with ESR protection Texas InstrumentsUnited States of Americarecord ↗ Line driver/receiver with ESR protection, marked MB3238I 36KG4 D82T

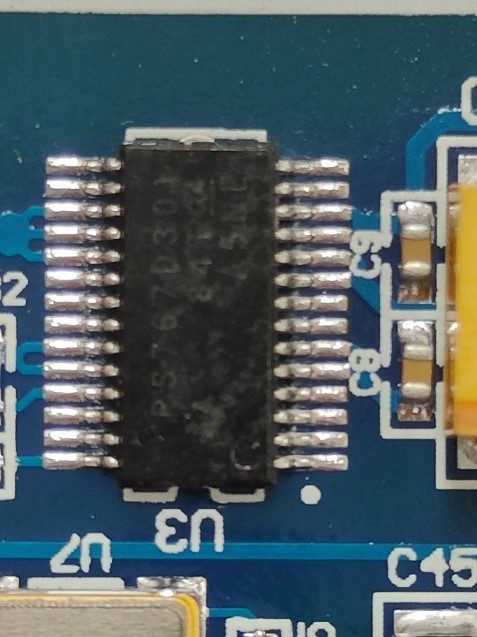

  • 84T G4 A5NE Linear regulator with two outputs and low drop PS767D301 Texas InstrumentsUnited States of Americarecord ↗ Linear regulator with two outputs and low drop PS767D301, marked 84T G4 A5NE

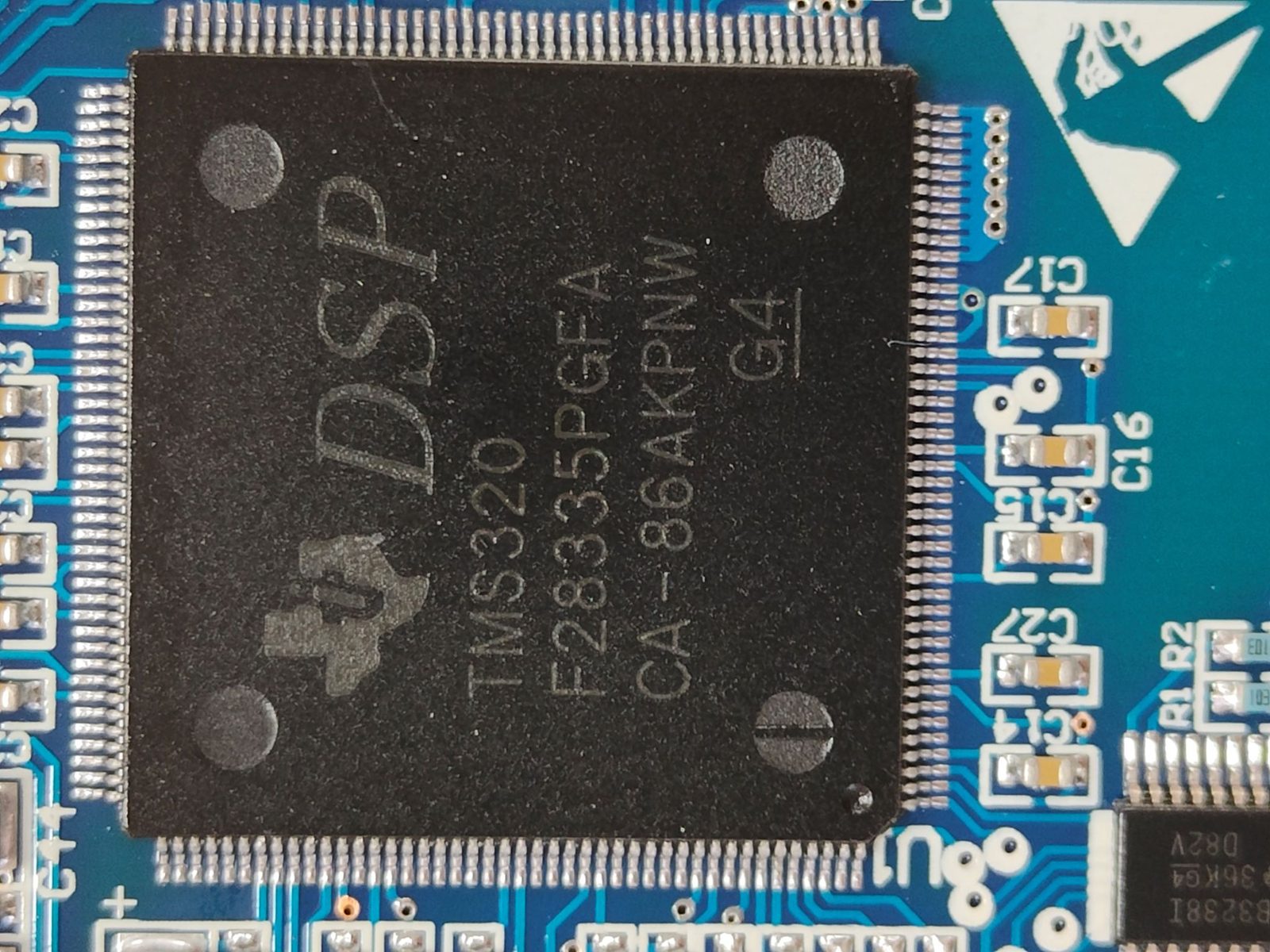

  • F28335PGFA CA-86AKPNW Real-time microcontroller with DSP connection manager TMS320 Texas InstrumentsUnited States of Americarecord ↗ Real-time microcontroller with DSP connection manager TMS320, marked F28335PGFA CA-86AKPNW
  • Functional module P/N G110 S/N 156 with Hemisphere GNSS H220 add-on board
  • 12000080 NAH 2144+ Unidentified Hemisphere GNSSUnited States of Americarecord ↗ Unidentified, marked 12000080 NAH 2144+
  • 162 K744 AES Sensor of angular velocities Hemisphere GNSSUnited States of Americarecord ↗ Sensor of angular velocities, marked 162 K744 AES
  • MMPF0100 NPANES XAAKZT 14-channel configurable power management integrated circuit NXP SemiconductorsNetherlandsrecord ↗ 14-channel configurable power management integrated circuit, marked MMPF0100 NPANES XAAKZT

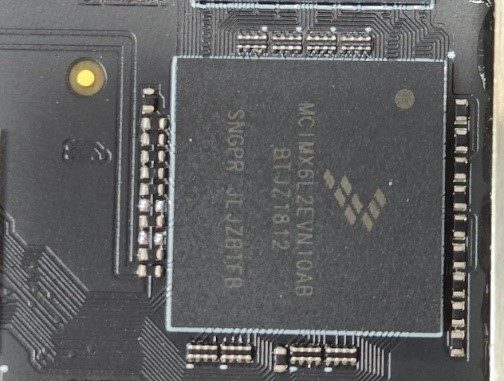

  • MCIMX6L2EVN10AB BTJZ1812 SNGPR JLJZBIFB Microprocessor NXP SemiconductorsNetherlandsrecord ↗ Microprocessor, marked MCIMX6L2EVN10AB BTJZ1812 SNGPR JLJZBIFB

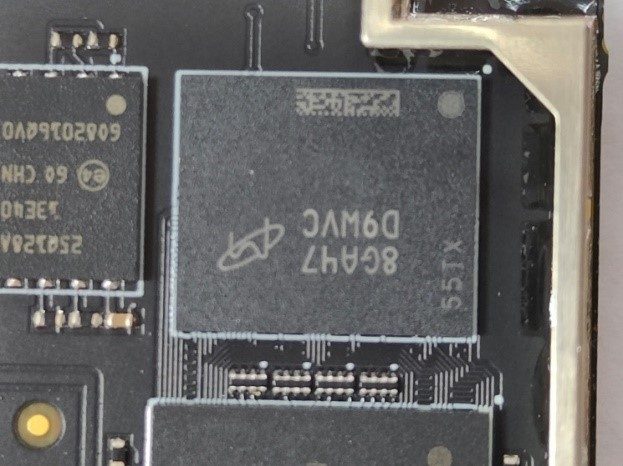

  • 8GA47 D9WVC Synchronous dynamic memory with random access MercuryUnited States of Americarecord ↗ Synchronous dynamic memory with random access, marked 8GA47 D9WVC

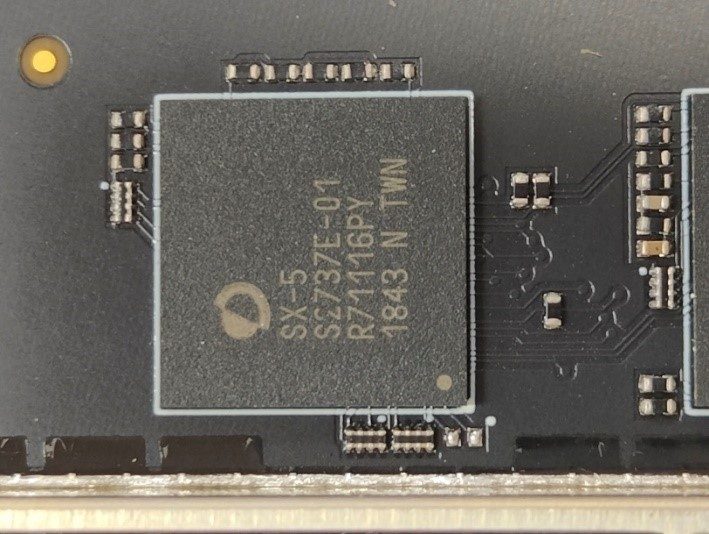

  • SX-5 S2737E 01 R77705PY 1843 N TWN 5th generation intelligent module Silex technology America, inc.United States of Americarecord ↗ 5th generation intelligent module, marked SX-5 S2737E 01 R77705PY 1843 N TWN

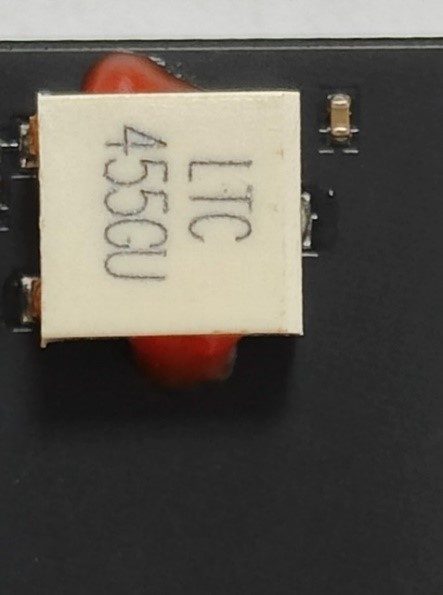

  • LTC 455GU Chip ceramic filters for communication Token Electronics Industry CoTaiwanrecord ↗ Chip ceramic filters for communication, marked LTC 455GU

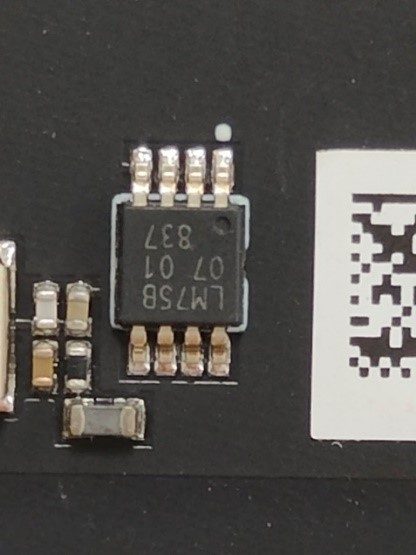

  • LM75B 07 01 837 Temperature-digital converter with a built-in temperature sensor Texas InstrumentsUnited States of Americarecord ↗ Temperature-digital converter with a built-in temperature sensor, marked LM75B 07 01 837
  • VP230 93M A8FO MOH transistor Microchip Technology Inc.United States of Americarecord ↗ MOH transistor, marked VP230 93M A8FO
  • 75A5X5K HCT04 Hexagonal inverter (high performance CMOS with silicon gate) System Logic SemiconductorRepublic of Korearecord ↗ Hexagonal inverter (high performance CMOS with silicon gate), marked 75A5X5K HCT04
  • PS767D301 84T G4 A5NE A linear regulator with two outputs and a small drop Texas InstrumentsUnited States of Americarecord ↗ A linear regulator with two outputs and a small drop, marked PS767D301 84T G4 A5NE
  • CTS17CB3 50M00000 Clock oscillator CTS CorporationUnited States of Americarecord ↗ Clock oscillator, marked CTS17CB3 50M00000

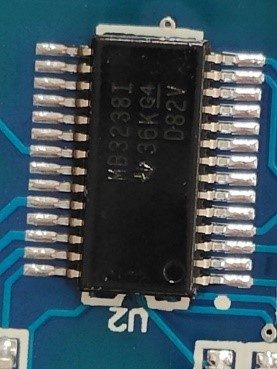

  • MB3238I 36KG4 D82V Line driver/receiver with ESR protection Texas InstrumentsUnited States of Americarecord ↗ Line driver/receiver with ESR protection, marked MB3238I 36KG4 D82V
  • TMS320 F28335PGFA CA-86AKPNW Real-time microcontroller with DSP connection manager Texas InstrumentsUnited States of Americarecord ↗ Real-time microcontroller with DSP connection manager, marked TMS320 F28335PGFA CA-86AKPNW

Part records and photos: HUR War & Sanctions, Ukraine's Defence Intelligence database of foreign components found in Russian weapons, and the other sources named on each part. A marking, date code or country is given as the source records it.
