What the Scalpel is made of

21 documented parts and 22 photos, from recovered wreckage. Each part gives its marking, maker and country where known, and links the record it comes from. The system itself: Scalpel.

Where the parts were made

United States of America 7
Atmel (Microchip Technology), ON Semiconductor (ONSEMI), International Rectifier (Infineon Technologies), Texas Instruments, Linear Technology Corporation (Analog Devices)
Switzerland 3
STMicroelectronics
People's Republic of China 2
CONNFLY, Shenzhen Xunlong Software CO., Limited
Russian Federation 1
VOLTBRICKS LLC
Ireland 1
TE Connectivity
Netherlands 1
NXP Semiconductors
Japan 1
Nihon Dempa Kogyo co., Ltd (NDK)
Germany 1
Infineon Technologies

Sources

Ukrainian pages read alongside the English: same items, markings and text.

Specifications (HUR)

Take-off weight, max.
10.5 kg
Weight of the warhead
up to 5 kg

"Scalpel" loitering munition

Flight controller

Польотний контролер

HUR War & Sanctions record ↗

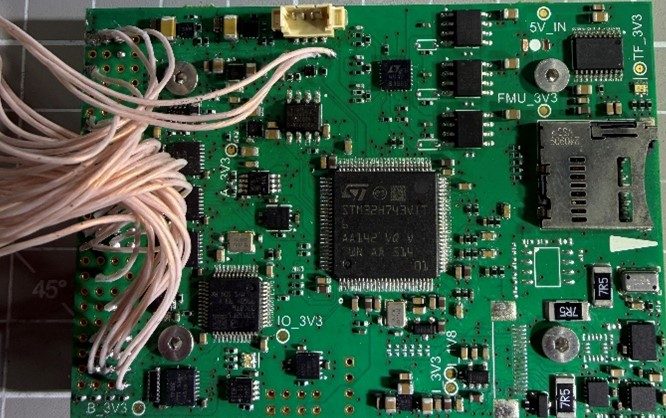

  • Flight controller — photo

Photo: HUR War & Sanctions

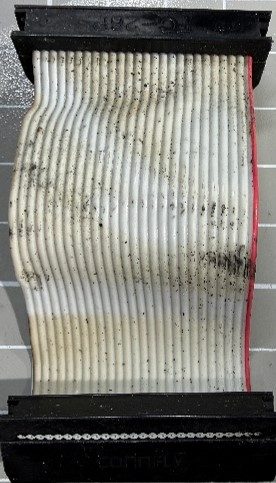

  • Connection cable CONNFLYPeople's Republic of Chinarecord ↗ Connection cable

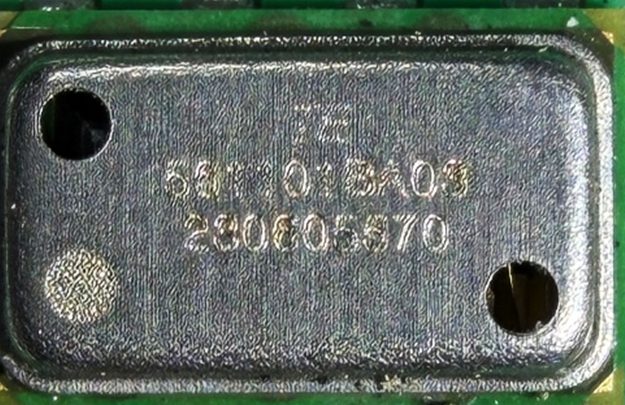

  • TE 561101BA03 280605670 Pressure sensor TE ConnectivityIrelandrecord ↗ Pressure sensor, marked TE 561101BA03 280605670

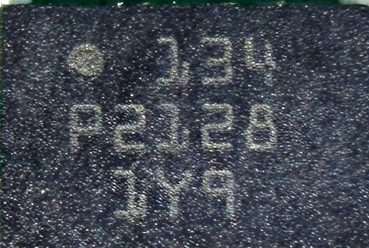

  • 134 P2128 1Y9 Not identified Not identifiedrecord ↗ Not identified, marked 134 P2128 1Y9

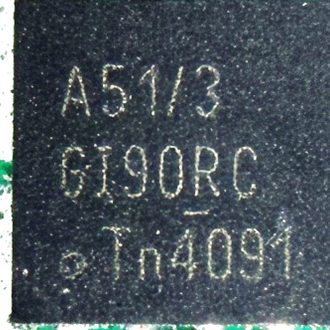

  • A51/3 GI90RC Tn4091 CAN transceiver NXP SemiconductorsNetherlandsrecord ↗ CAN transceiver, marked A51/3 GI90RC Tn4091

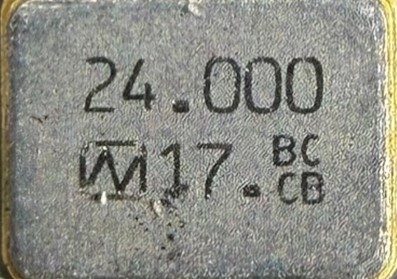

  • 24.000 17.BCCB Quartz resonator Nihon Dempa Kogyo co., Ltd (NDK)Japanrecord ↗ Quartz resonator, marked 24.000 17.BCCB

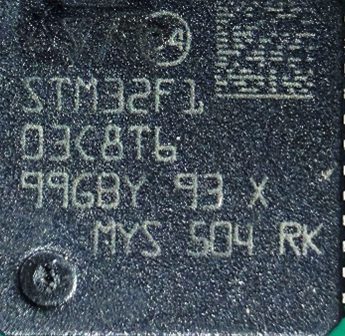

  • STM32F1 03C8T6 99GBY 93 X MYS 504 RK Microcontroller STMicroelectronicsSwitzerlandrecord ↗ Microcontroller, marked STM32F1 03C8T6 99GBY 93 X MYS 504 RK

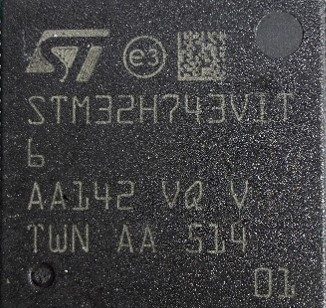

  • STM32H743VIT 6 AA142 VQ V TWN AA 514 01 Microcontroller STMicroelectronicsSwitzerlandrecord ↗ Microcontroller, marked STM32H743VIT 6 AA142 VQ V TWN AA 514 01

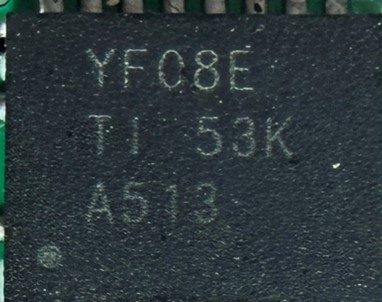

  • YFC8E TI 53K A513 Voltage regulator Texas InstrumentsUnited States of Americarecord ↗ Voltage regulator, marked YFC8E TI 53K A513

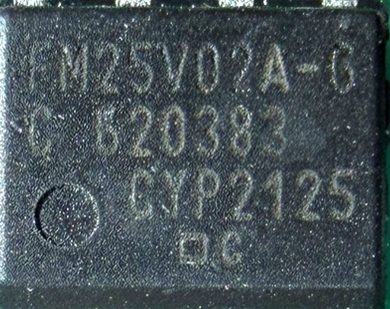

  • FM25V02A-G 520383 CYP2125 G FRAM memory chip Infineon TechnologiesGermanyMade June (25th week) 2021record ↗ FRAM memory chip, marked FM25V02A-G 520383 CYP2125 G

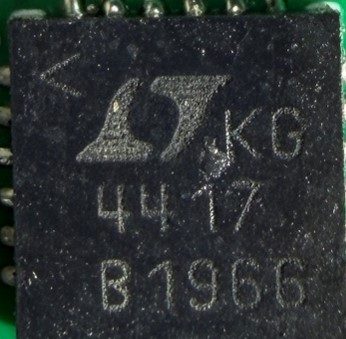

  • KG 4417 B1966 Power controller LTC4417 Linear Technology Corporation (Analog Devices)United States of Americarecord ↗ Power controller LTC4417, marked KG 4417 B1966

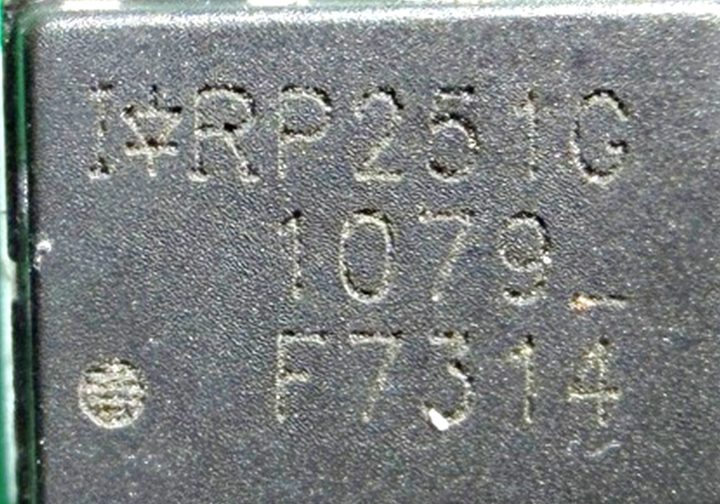

  • IOR P251G 1079 F7314 PWM controller International Rectifier (Infineon Technologies)United States of Americarecord ↗ PWM controller, marked IOR P251G 1079 F7314

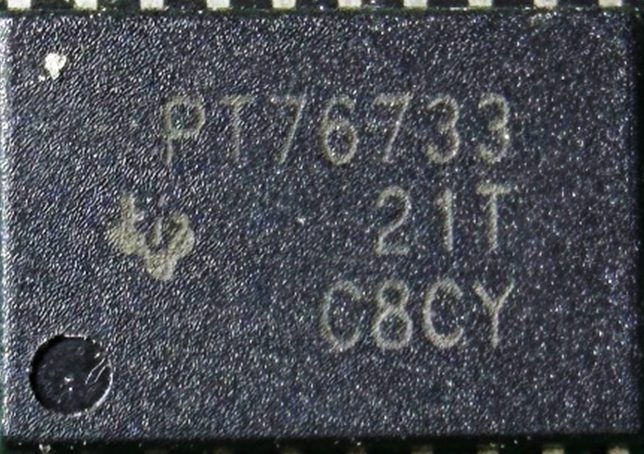

  • PT76733 21T C8CY Voltage regulator Texas InstrumentsUnited States of Americarecord ↗ Voltage regulator, marked PT76733 21T C8CY

Power supply board

Плата живлення

HUR War & Sanctions record ↗

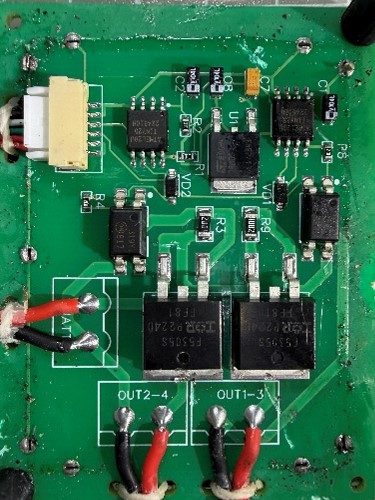

  • Power supply board — photo

Photo: HUR War & Sanctions

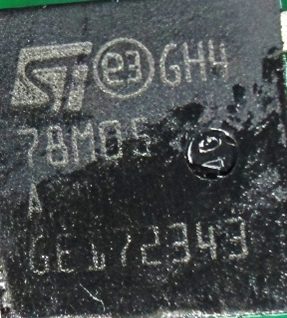

  • 78M05 A GE172343 Voltage regulator STMicroelectronicsSwitzerlandrecord ↗ Voltage regulator, marked 78M05 A GE172343
  • ATMEL20U TINY25 22461GH Microcontroller Atmel (Microchip Technology)United States of Americarecord ↗ Microcontroller, marked ATMEL20U TINY25 22461GH

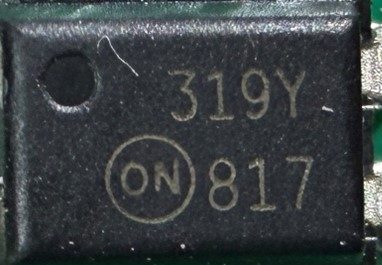

  • 319Y 817 Optocoupler ON Semiconductor (ONSEMI)United States of Americarecord ↗ Optocoupler, marked 319Y 817

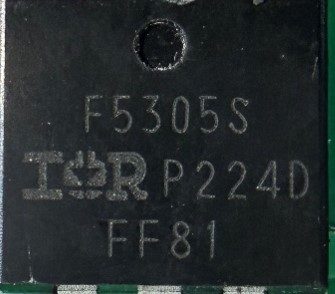

  • F5305S P224D FF81 MOSFET International Rectifier (Infineon Technologies)United States of Americarecord ↗ MOSFET, marked F5305S P224D FF81

Orange Pi single-board computer

Одноплатний комп'ютер Orange Pi

Shenzhen Xunlong Software CO., LimitedPeople's Republic of China

HUR War & Sanctions record ↗

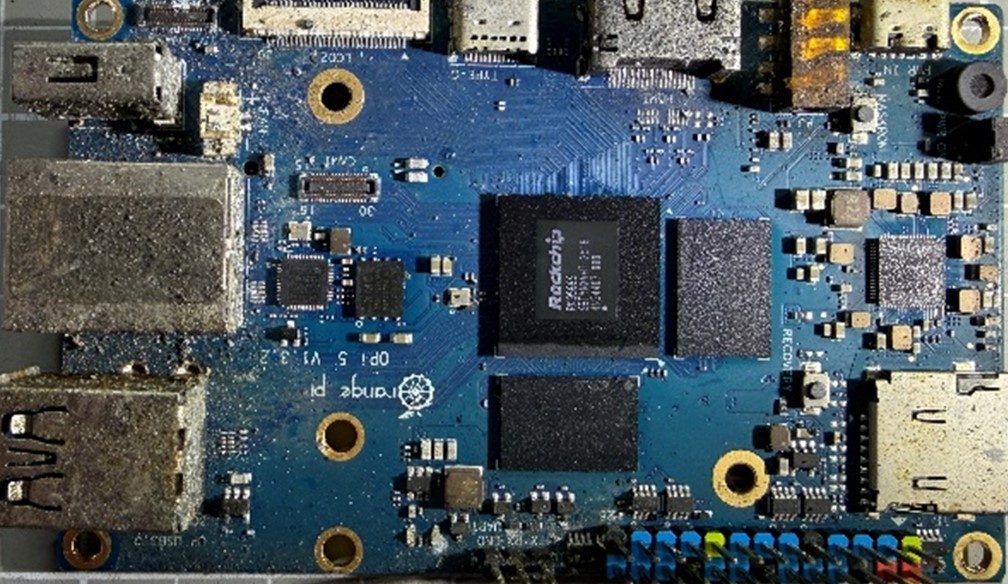

  • Orange Pi single-board computer — photo

Photo: HUR War & Sanctions

Part records and photos: HUR War & Sanctions, Ukraine's Defence Intelligence database of foreign components found in Russian weapons, and the other sources named on each part. A marking, date code or country is given as the source records it.
