What the ZALA Lancet-3 is made of

50 documented parts and 51 photos, from recovered wreckage. Each part gives its marking, maker and country where known, and links the record it comes from. The system itself: ZALA Lancet-3.

Where the parts were made

United States of America 40
Nvidia, National Semiconductor (Texas Instruments), Texas Instruments, Atmel (Microchip Technology), Qorvo, Analog Devices, Microchip Technology Inc., Maxim Integrated Products (Analog Devices), Bel Fuse Inc., Micron Technology, Xilinx Inc. (AMD), Semtech Corporation, Maxwell Technologies, International Rectifier (Infineon Technologies), KYOCERA AVX
Switzerland 6
STMicroelectronics, U-blox
Germany 1
Infineon Technologies
Republic of Korea 1
Ricci Microwave
Netherlands 1
NXP Semiconductors
Taiwan 1
VBsemi Electronics Co.,Ltd

Sources

Ukrainian pages read alongside the English: 1 part(s) carry text only in Ukrainian (kept as *_uk).

UAV "Lancet-3", Tail Number 56. 024Z111 525 record ↗

Range-finder

  • LM22675 1AN3 Voltage regulator National Semiconductor (Texas Instruments)United States of Americarecord ↗ Voltage regulator, marked LM22675 1AN3
  • VP232 29MAOPL CAN Bus Transceiver Texas InstrumentsUnited States of Americarecord ↗ CAN Bus Transceiver, marked VP232 29MAOPL
  • 32G431KBU6 GQ276 129R CHN 231X Microcontroller STMicroelectronicsSwitzerlandrecord ↗ Microcontroller, marked 32G431KBU6 GQ276 129R CHN 231X

Video stream processing unit

  • IRFH7085TRPBF C905P S7YA MOSFET transistor Infineon TechnologiesGermanyrecord ↗ MOSFET transistor, marked IRFH7085TRPBF C905P S7YA
  • LM22675 2742 Voltage regulator National Semiconductor (Texas Instruments)United States of Americarecord ↗ Voltage regulator, marked LM22675 2742
  • ATmega8A-AU 35469L 2142DM9 Microcontroller Atmel (Microchip Technology)United States of Americarecord ↗ Microcontroller, marked ATmega8A-AU 35469L 2142DM9
  • RMB4D2275 Frequency filter Ricci MicrowaveRepublic of Korearecord ↗ Frequency filter, marked RMB4D2275
  • TQP9111 2039 AR4503 High frequency amplifier QorvoUnited States of Americarecord ↗ High frequency amplifier, marked TQP9111 2039 AR4503
  • TPS 54361 TI 331 AX66 Step Down DC-DC Converter Texas InstrumentsUnited States of Americarecord ↗ Step Down DC-DC Converter, marked TPS 54361 TI 331 AX66
  • 1755 ADJ #208 08139 Linear voltage regulator Analog DevicesUnited States of Americarecord ↗ Linear voltage regulator, marked 1755 ADJ #208 08139
  • AD9363 BBCZ #2233 5738121.1 Transceiver Analog DevicesUnited States of Americarecord ↗ Transceiver, marked AD9363 BBCZ #2233 5738121.1
  • 25Q128A13E40 99 CHN GQ517014 Microcircuit STMicroelectronicsSwitzerlandrecord ↗ Microcircuit, marked 25Q128A13E40 99 CHN GQ517014
  • KSZ9131RNXI C000 2238CBW Transceiver Microchip Technology Inc.United States of Americarecord ↗ Transceiver, marked KSZ9131RNXI C000 2238CBW
  • 13235EE TP052 +BJCV Transceiver Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ Transceiver, marked 13235EE TP052 +BJCV
  • S558-5999-U7-F 2226 WM Pulse Transformer Bel Fuse Inc.United States of Americarecord ↗ Pulse Transformer, marked S558-5999-U7-F 2226 WM
  • MAX3180E EAP 2218 Transceiver Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ Transceiver, marked MAX3180E EAP 2218

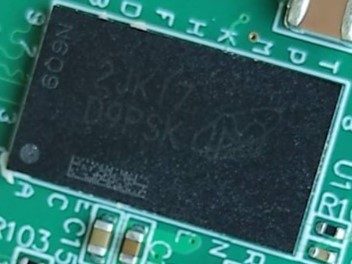

  • 2JK17 D9PSK N6O93 Memory chip Micron TechnologyUnited States of Americarecord ↗ Memory chip, marked 2JK17 D9PSK N6O93
  • XILINX ZYNQ XC7Z020 CLG484ABX2221 D6713481A FPGA based on a dual ARM® Cortex™-A9 processor Xilinx Inc. (AMD)United States of Americarecord ↗ FPGA based on a dual ARM® Cortex™-A9 processor, marked XILINX ZYNQ XC7Z020 CLG484ABX2221 D6713481A

GNSS unit with antenna

  • LP5907MFX-3.3/NOPB LLVB Low-Noise Linear Voltage Regulator Texas InstrumentsUnited States of Americarecord ↗ Low-Noise Linear Voltage Regulator, marked LP5907MFX-3.3/NOPB LLVB Low-Noise Linear Voltage Regulator, marked LP5907MFX-3.3/NOPB LLVB
  • MAX2235 EUPDP +M132 RF power amplifier Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ RF power amplifier, marked MAX2235 EUPDP +M132
  • XE1205I074 1535 3699.1 Transceiver Semtech CorporationUnited States of Americarecord ↗ Transceiver, marked XE1205I074 1535 3699.1
  • LEA-M8S-0-10 GNSS module U-bloxSwitzerlandrecord ↗ GNSS module, marked LEA-M8S-0-10
  • ADM 3202A #239 RS-232 Line Driver Analog DevicesUnited States of Americarecord ↗ RS-232 Line Driver, marked ADM 3202A #239
  • STM32F103C8T6 99R6V RJ59 MYS 99 248 Microcontroller STMicroelectronicsSwitzerlandrecord ↗ Microcontroller, marked STM32F103C8T6 99R6V RJ59 MYS 99 248

Autopilot unit

  • SMBJ13CA BBM GP310 Diode STMicroelectronicsSwitzerlandrecord ↗ Diode, marked SMBJ13CA BBM GP310

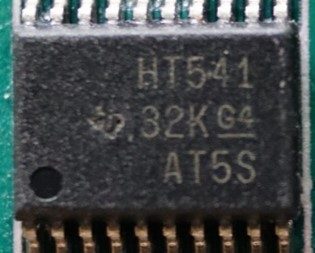

  • HT541 32K G4 AT5S Microcircuit Texas InstrumentsUnited States of Americarecord ↗ Microcircuit, marked HT541 32K G4 AT5S

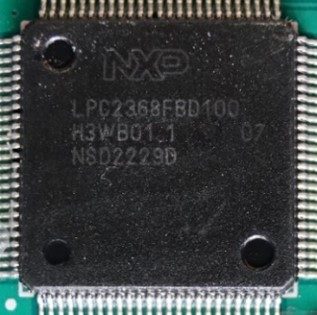

  • LPC2368FBD100 Microcontroller NXP SemiconductorsNetherlandsMade 2022record ↗ Microcontroller, marked LPC2368FBD100

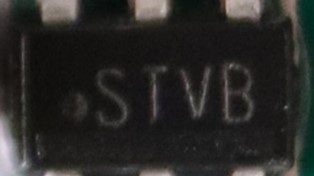

  • LM2842XMK-ADJL STVB Voltage regulator Texas InstrumentsUnited States of Americarecord ↗ Voltage regulator, marked LM2842XMK-ADJL STVB
  • VP232 29M AON9 CAN Bus Transceiver Texas InstrumentsUnited States of Americarecord ↗ CAN Bus Transceiver, marked VP232 29M AON9

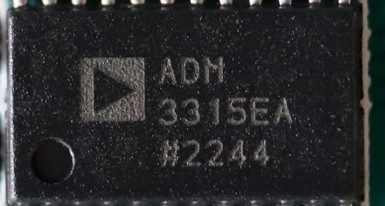

  • ADM 3315EA #2244 Microcircuit Analog DevicesUnited States of Americarecord ↗ Microcircuit, marked ADM 3315EA #2244

Aiming head control board

Плата керування головою наведення

NvidiaUnited States of America

TE 22353BD

In the HUR record: Nvidia jetson nx cpu module

HUR War & Sanctions record ↗

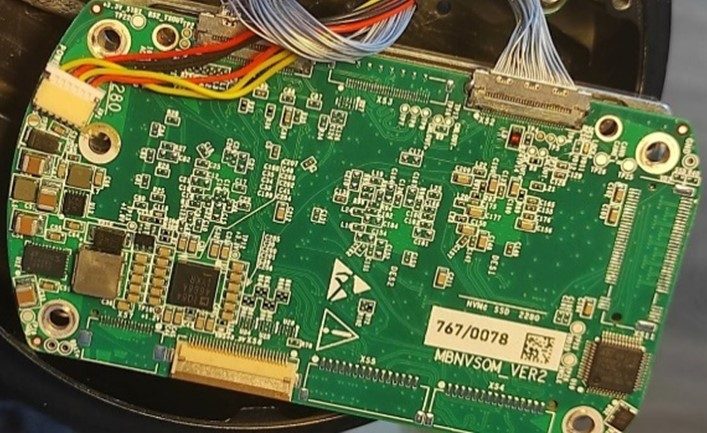

  • Aiming head control board — photo

Photo: HUR War & Sanctions

UAV "Lancet-3" record ↗

Gyroscope

  • ВСАР0010 Р270 S01 ESHSR-0010C0-00SR7 2.7V 10F Condenser Maxwell TechnologiesUnited States of Americarecord ↗ Condenser, marked ВСАР0010 Р270 S01 ESHSR-0010C0-00SR7 2.7V 10F
  • VP232 28M AR7N Network controller (3.3 V power supply) Texas InstrumentsUnited States of Americarecord ↗ Network controller (3.3 V power supply), marked VP232 28M AR7N
  • XL 326B #2203 2283F Accelerometer Analog DevicesUnited States of Americarecord ↗ Accelerometer, marked XL 326B #2203 2283F
  • STM32 F103G8T6 TWN AA1144 STM32F103 Microcontroller STMicroelectronicsSwitzerlandrecord ↗ Microcontroller, marked STM32 F103G8T6 TWN AA1144 STM32F103

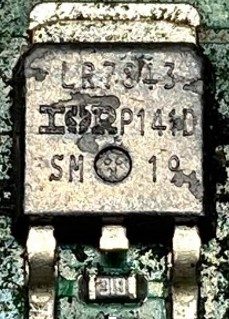

  • LR7843 P141D SM 19 Transistor International Rectifier (Infineon Technologies)United States of Americarecord ↗ Transistor, marked LR7843 P141D SM 19

Board (power supply control unit)

  • ATME 0A U-H 8A 35 214 Microcontroller Atmel (Microchip Technology)United States of Americarecord ↗ Microcontroller, marked ATME 0A U-H 8A 35 214

Electric drive with rear wing control unit

  • ME4542 GA36-1 Transistor VBsemi Electronics Co.,LtdTaiwanrecord ↗ Transistor, marked ME4542 GA36-1
  • ATMEGA48V 10U-PH 355E5G 2110SH5 Microcontroller Atmel (Microchip Technology)United States of Americarecord ↗ Microcontroller, marked ATMEGA48V 10U-PH 355E5G 2110SH5

Video stream processing unit

  • TPS 34261 TI2241 AN43 Two-channel controller Texas InstrumentsUnited States of Americarecord ↗ Two-channel controller, marked TPS 34261 TI2241 AN43
  • 1755 ADJ #215 72108 Chip Analog DevicesUnited States of Americarecord ↗ Chip, marked 1755 ADJ #215 72108
  • AD 9364BBCZ #2116 5311566 High Performance RF Agile Transceiver Analog DevicesUnited States of Americarecord ↗ High Performance RF Agile Transceiver, marked AD 9364BBCZ #2116 5311566
  • 9LK17 D9P3K Memory chip Micron TechnologyUnited States of Americarecord ↗ Memory chip, marked 9LK17 D9P3K
  • XILINX ZYNQ XC7Z020 CLG484ABX22 Microprocessor Xilinx Inc. (AMD)United States of AmericaMade 2022record ↗ Microprocessor, marked XILINX ZYNQ XC7Z020 CLG484ABX22
  • ADAU 1961WB #2225 5847236 PHIL Low-power stereo audio codec Analog DevicesUnited States of Americarecord ↗ Low-power stereo audio codec, marked ADAU 1961WB #2225 5847236 PHIL
  • VP234 28M AFRS Network controller (3.3 V power supply) Texas InstrumentsUnited States of Americarecord ↗ Network controller (3.3 V power supply), marked VP234 28M AFRS
  • ADV 7391BCPZ #0752 13454901 High-speed SD/HD video encoder Analog DevicesUnited States of Americarecord ↗ High-speed SD/HD video encoder, marked ADV 7391BCPZ #0752 13454901
  • YJ612 TI 84K CL7 Thin film resistor KYOCERA AVXUnited States of Americarecord ↗ Thin film resistor, marked YJ612 TI 84K CL7
  • ADV 7180W #2129 619437 Video decoder Analog DevicesUnited States of Americarecord ↗ Video decoder, marked ADV 7180W #2129 619437
  • KSZ 9031RNXIA 2113A2T G000002113EQA Interface Chip Gigabit Ethernet Transceiver Microchip Technology Inc.United States of Americarecord ↗ Interface Chip Gigabit Ethernet Transceiver, marked KSZ 9031RNXIA 2113A2T G000002113EQA

Part records and photos: HUR War & Sanctions, Ukraine's Defence Intelligence database of foreign components found in Russian weapons, and the other sources named on each part. A marking, date code or country is given as the source records it.
