What the KN-24 is made of

72 documented parts and 72 photos, from recovered wreckage. Each part gives its marking, maker and country where known, and links the record it comes from.

Where the parts were made

United States of America 46
Burr-Brown Corporation (Texas Instruments), Fairchild Semiconductor (ON Semiconductor), IXYS, Broadcom Corporation, AVX Corporation, Analog Devices, Maxim Integrated Products (Analog Devices), Linear Technology Corporation (Analog Devices), Altera Corporation (Intel), Texas Instruments, KEMET (YAGEO Corporation), Atmel (Microchip Technology)
People's Republic of China 9
Shenzhen Ruised Technology Co., Ltd., Shenzhen Eascera Electronics Co., Ltd., MORNSUN Guangzhou Science & Technology Co., Ltd., Shenzhen Jiading Industrial Co., Ltd.
Switzerland 4
STMicroelectronics, LEM International SA, Traco Power, Axicom (TE Connectivity)
Japan 4
Toshiba, Murata
Netherlands 2
NXP Semiconductors
Taiwan 2
VBsemi Electronics Co.,Ltd, Sunonwealth Electric Machine Co. (SUNON)
Germany 1
Siemens

Sources

Ukrainian pages read alongside the English: same items, markings and text.

Ballistic missile KN-24

On-board electronic computing machine

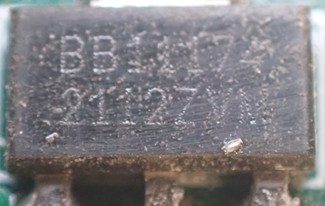

  • BB11174 2112ZVM Voltage regulator Burr-Brown Corporation (Texas Instruments)United States of Americarecord ↗ Voltage regulator, marked BB11174 2112ZVM

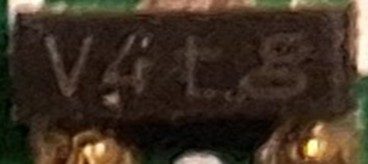

  • V4 tg Electronic component Not identifiedrecord ↗ Electronic component, marked V4 tg

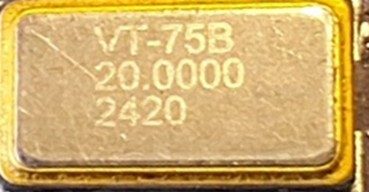

  • VT-75B 20.0000 2420 Quartz oscillator Not identifiedrecord ↗ Quartz oscillator, marked VT-75B 20.0000 2420

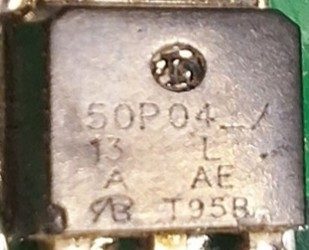

  • 50P04 13 L A AE T95B P-channel MOSFET VBsemi Electronics Co.,LtdTaiwanrecord ↗ P-channel MOSFET, marked 50P04 13 L A AE T95B
  • M07 1261 V23079-A1005-B301 Signal relay Axicom (TE Connectivity)Switzerlandrecord ↗ Signal relay, marked M07 1261 V23079-A1005-B301
  • LO20047 V23079-A1005-B301 Relay SiemensGermanyrecord ↗ Relay, marked LO20047 V23079-A1005-B301

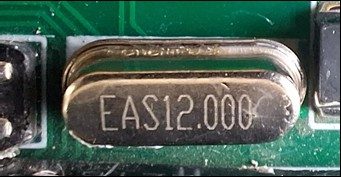

  • EAS12.000 Quartz Crystal Oscillator 12MHz Shenzhen Eascera Electronics Co., Ltd.People's Republic of Chinarecord ↗ Quartz Crystal Oscillator 12MHz, marked EAS12.000
  • BB11174 2BZG77H Voltage regulator Burr-Brown Corporation (Texas Instruments)United States of Americarecord ↗ Voltage regulator, marked BB11174 2BZG77H

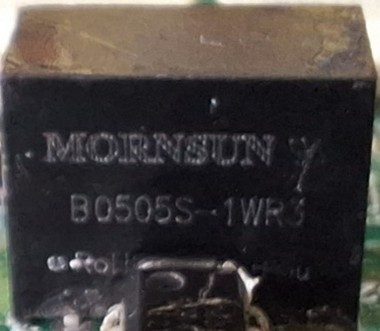

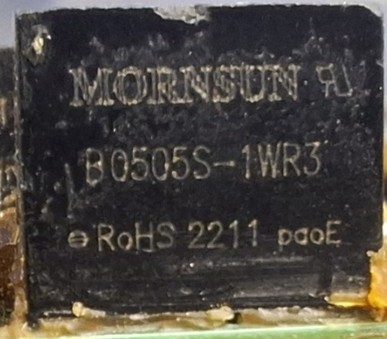

  • B0505S-1WR3 2211 DC/DC converter MORNSUN Guangzhou Science & Technology Co., Ltd.People's Republic of ChinaMade March (11 week) 2022record ↗ DC/DC converter, marked B0505S-1WR3 2211
  • WRB2405S-WR2 2218 DC/DC converter MORNSUN Guangzhou Science & Technology Co., Ltd.People's Republic of ChinaMade May (18 week) 2022record ↗ DC/DC converter, marked WRB2405S-WR2 2218
  • HCPL-0630 0630 2147 FZY Optocoupler Broadcom CorporationUnited States of AmericaMade November (47 week) 2021record ↗ Optocoupler, marked HCPL-0630 0630 2147 FZY
  • HCPL-7840 A 7840 2132 064 Optocoupler Broadcom CorporationUnited States of AmericaMade August (32 week) 2021record ↗ Optocoupler, marked HCPL-7840 A 7840 2132 064
  • 1648 TLP281-4 GB Optocoupler ToshibaJapanrecord ↗ Optocoupler, marked 1648 TLP281-4 GB
  • MAX3087 CSA +705 RS-485/RS-422 Transceiver Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ RS-485/RS-422 Transceiver, marked MAX3087 CSA +705
  • ULN2803APG 803033 High−voltage, high−current Darlington driver ToshibaJapanrecord ↗ High−voltage, high−current Darlington driver, marked ULN2803APG 803033

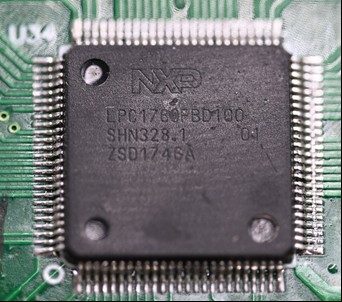

  • LPC1769FBD100 SHN328.1 01 ZSD1746A Microcontroller NXP SemiconductorsNetherlandsrecord ↗ Microcontroller, marked LPC1769FBD100 SHN328.1 01 ZSD1746A
  • HCPL-063L 063L 2151 HUU Optocoupler Broadcom CorporationUnited States of AmericaMade December (51 week) 2021record ↗ Optocoupler, marked HCPL-063L 063L 2151 HUU
  • HCPL-063L 063L 2136 UXJ Optocoupler Broadcom CorporationUnited States of AmericaMade September (36 week) 2021record ↗ Optocoupler, marked HCPL-063L 063L 2136 UXJ

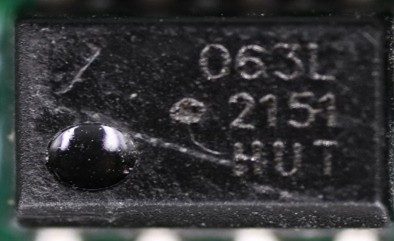

  • HCPL-063L 063L 2151 HUT Optocoupler Broadcom CorporationUnited States of AmericaMade December (51 week) 2021record ↗ Optocoupler, marked HCPL-063L 063L 2151 HUT
  • HCPL-063L 063L 2136 UXQ Optocoupler Broadcom CorporationUnited States of AmericaMade September (36 week) 2021record ↗ Optocoupler, marked HCPL-063L 063L 2136 UXQ
  • BB11174 15ZG44H Voltage regulator Burr-Brown Corporation (Texas Instruments)United States of Americarecord ↗ Voltage regulator, marked BB11174 15ZG44H
  • B0505S-1WR3 2211 DC/DC converter MORNSUN Guangzhou Science & Technology Co., Ltd.People's Republic of ChinaMade March (11 week) 2022record ↗ DC/DC converter, marked B0505S-1WR3 2211

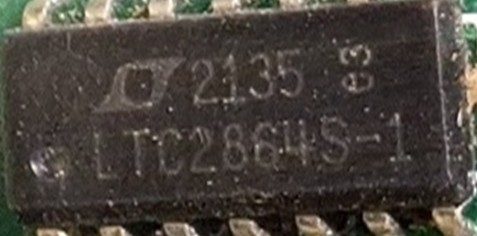

  • 2135 LTC2864S-1 RS485/RS422 transceiver Linear Technology Corporation (Analog Devices)United States of Americarecord ↗ RS485/RS422 transceiver, marked 2135 LTC2864S-1

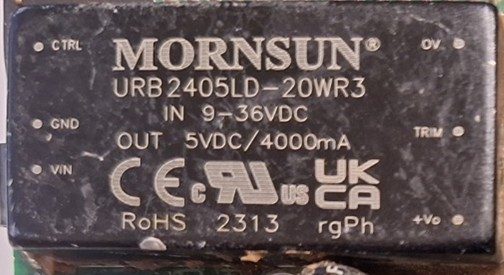

  • URB2405LD-20WR3 2313 DC/DC converter MORNSUN Guangzhou Science & Technology Co., Ltd.People's Republic of ChinaMade March-April (13 week) 2023record ↗ DC/DC converter, marked URB2405LD-20WR3 2313

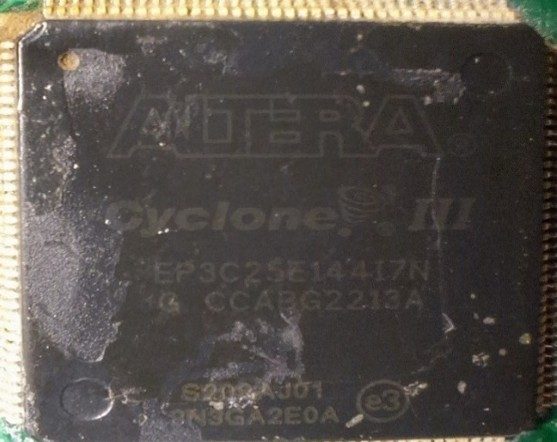

  • Cyclone III EP3C25E14417N G CСABG 2213A S202AJ01 3N3GA2EOA Field programmable gate array (FPGA) Altera Corporation (Intel)United States of Americarecord ↗ Field programmable gate array (FPGA), marked Cyclone III EP3C25E14417N G CСABG 2213A S202AJ01 3N3GA2EOA

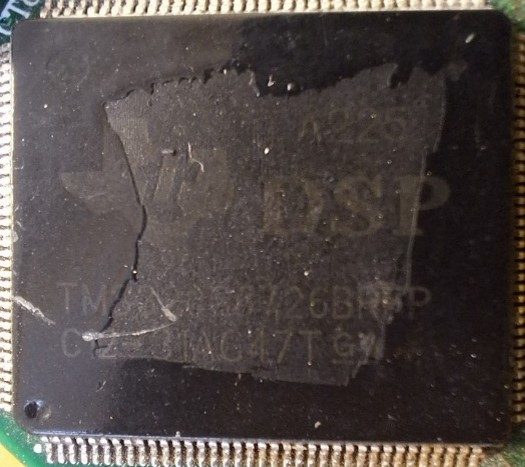

  • А-225 TMS320C6726BRFP C12-31AC47T G4 Digital signal processor Texas InstrumentsUnited States of Americarecord ↗ Digital signal processor, marked А-225 TMS320C6726BRFP C12-31AC47T G4

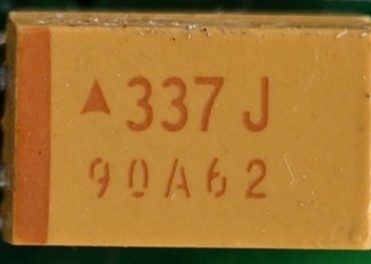

  • 337 J 90А62 Tantalum Capacitor AVX CorporationUnited States of Americarecord ↗ Tantalum Capacitor, marked 337 J 90А62
  • ADP3338AKC-5 3338 A33 Voltage stabilizer Analog DevicesUnited States of Americarecord ↗ Voltage stabilizer, marked ADP3338AKC-5 3338 A33

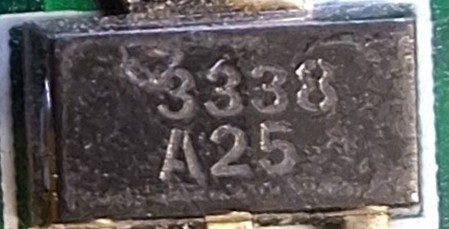

  • ADP3338AKC-5 3338 A25 Voltage stabilizer Analog DevicesUnited States of Americarecord ↗ Voltage stabilizer, marked ADP3338AKC-5 3338 A25

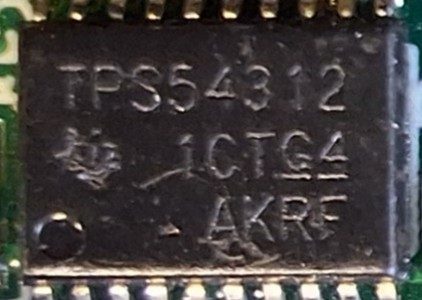

  • TPS54312 1CT G4 AKRF Synchronous buck PWM switcher with integrated FETs Texas InstrumentsUnited States of Americarecord ↗ Synchronous buck PWM switcher with integrated FETs, marked TPS54312 1CT G4 AKRF

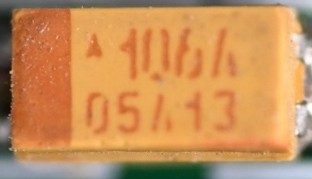

  • 106 A 05A13 Tantalum Capacitor AVX CorporationUnited States of Americarecord ↗ Tantalum Capacitor, marked 106 A 05A13
  • АD9228 ABCPZ-40 #1543 3309069.1 Analog-to-Digital Converter 12 bit Analog DevicesUnited States of Americarecord ↗ Analog-to-Digital Converter 12 bit, marked АD9228 ABCPZ-40 #1543 3309069.1
  • ADP3338AKC-5 3338 A18 Voltage regulator Analog DevicesUnited States of Americarecord ↗ Voltage regulator, marked ADP3338AKC-5 3338 A18

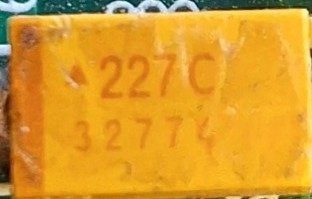

  • 227 C 32774 Tantalum Capacitor AVX CorporationUnited States of Americarecord ↗ Tantalum Capacitor, marked 227 C 32774

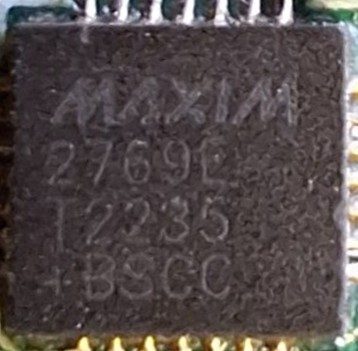

  • 2769E T2235 +BSCC Universal GPS receiver Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ Universal GPS receiver, marked 2769E T2235 +BSCC

Control and monitoring unit for the operation of control elements "5807"

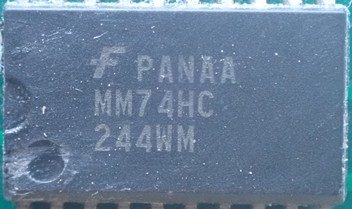

  • PANAA MM74HC 244WM Non-inverting buffer Fairchild Semiconductor (ON Semiconductor)United States of Americarecord ↗ Non-inverting buffer, marked PANAA MM74HC 244WM
  • BYT261PIV400 Rectifier diode STMicroelectronicsSwitzerlandrecord ↗ Rectifier diode, marked BYT261PIV400
  • IXFN180N20 S23685 TS2310 N-channel MOSFET IXYSUnited States of Americarecord ↗ N-channel MOSFET, marked IXFN180N20 S23685 TS2310
  • HCS-LTS-15A Hall Effect Current Sensor LEM International SASwitzerlandrecord ↗ Hall Effect Current Sensor, marked HCS-LTS-15A
  • HCPL-3120 A 3120 2116 562 Optocoupler Broadcom CorporationUnited States of AmericaMade April (16 week) 2021record ↗ Optocoupler, marked HCPL-3120 A 3120 2116 562
  • 8.192 Quartz Crystal Oscillator Shenzhen Ruised Technology Co., Ltd.People's Republic of Chinarecord ↗ Quartz Crystal Oscillator, marked 8.192
  • 12.000 Quartz Crystal Oscillator 12MHz Shenzhen Ruised Technology Co., Ltd.People's Republic of Chinarecord ↗ Quartz Crystal Oscillator 12MHz, marked 12.000
  • TMR 3-2422VVI DC/DC converter Traco PowerSwitzerlandrecord ↗ DC/DC converter, marked TMR 3-2422VVI
  • 107 J 042K1 Tantalum Capacitor AVX CorporationUnited States of Americarecord ↗ Tantalum Capacitor, marked 107 J 042K1
  • 106 С 193N1 Tantalum Capacitor AVX CorporationUnited States of Americarecord ↗ Tantalum Capacitor, marked 106 С 193N1
  • 106 Т 80050 Tantalum Capacitor AVX CorporationUnited States of Americarecord ↗ Tantalum Capacitor, marked 106 Т 80050
  • А 7800А 2134 493 Optically isolated amplifier Broadcom CorporationUnited States of Americarecord ↗ Optically isolated amplifier, marked А 7800А 2134 493
  • AD822A #0707 05502 Operational amplifier Analog DevicesUnited States of Americarecord ↗ Operational amplifier, marked AD822A #0707 05502
  • HCPL-5120 A 5120 2116 562 Optocoupler Broadcom CorporationUnited States of AmericaMade April (16 week) 2021record ↗ Optocoupler, marked HCPL-5120 A 5120 2116 562
  • MM74HC244WM Non-inverting buffer Fairchild Semiconductor (ON Semiconductor)United States of Americarecord ↗ Non-inverting buffer, marked MM74HC244WM
  • AD2S1205 YSTZ #2015 2721549.1 Converter Analog DevicesUnited States of AmericaMade April (15 week) 2020record ↗ Converter, marked AD2S1205 YSTZ #2015 2721549.1
  • ADM2490E BRWZ #2105 5212926.1 RS-485 transceiver Analog DevicesUnited States of AmericaMade February (5 week) 2021record ↗ RS-485 transceiver, marked ADM2490E BRWZ #2105 5212926.1
  • LPC1759FBD80 S2N462.1 03 ZSD1920A Microcontroller NXP SemiconductorsNetherlandsrecord ↗ Microcontroller, marked LPC1759FBD80 S2N462.1 03 ZSD1920A

Command devices complex "5801"

  • TLP181-GB 635 P181 GB Optocoupler ToshibaJapanrecord ↗ Optocoupler, marked TLP181-GB 635 P181 GB

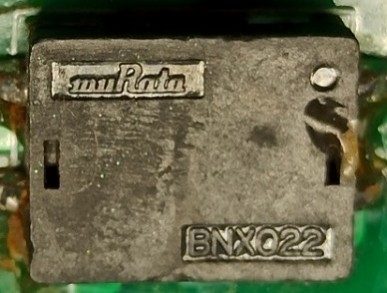

  • BNX022 Combined LC filter MurataJapanrecord ↗ Combined LC filter, marked BNX022

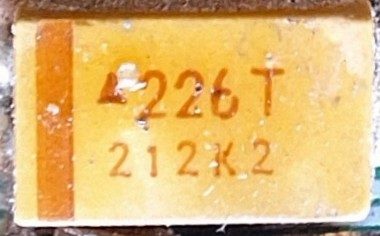

  • 226 T 212K2 Tantalum Capacitor AVX CorporationUnited States of Americarecord ↗ Tantalum Capacitor, marked 226 T 212K2

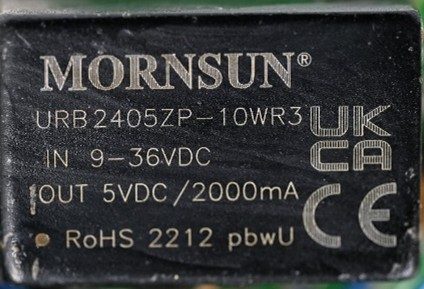

  • URB2405ZP-10WR3 2212 DC/DC converter MORNSUN Guangzhou Science & Technology Co., Ltd.People's Republic of ChinaMade March (12 week) 2022record ↗ DC/DC converter, marked URB2405ZP-10WR3 2212

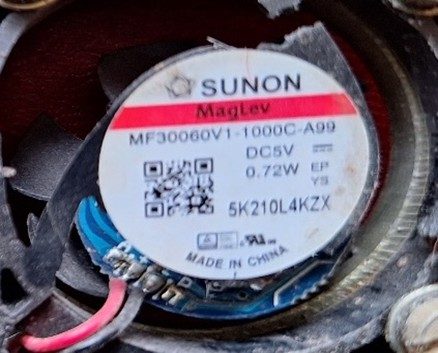

  • MF30060V1-1000C-A99 DC5V 0.72W 5K210L4KZX Fan Sunonwealth Electric Machine Co. (SUNON)Taiwanrecord ↗ Fan, marked MF30060V1-1000C-A99 DC5V 0.72W 5K210L4KZX

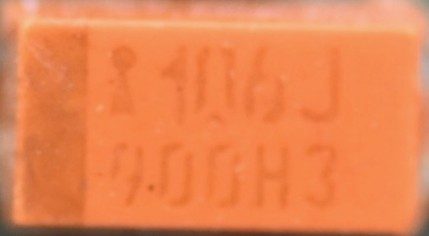

  • 106 J 906H3 Tantalum Capacitor AVX CorporationUnited States of Americarecord ↗ Tantalum Capacitor, marked 106 J 906H3

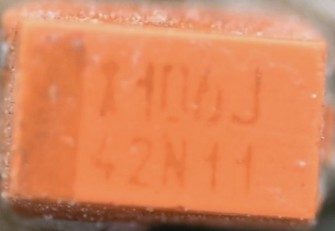

  • 106 J 42N11 Tantalum Capacitor AVX CorporationUnited States of Americarecord ↗ Tantalum Capacitor, marked 106 J 42N11

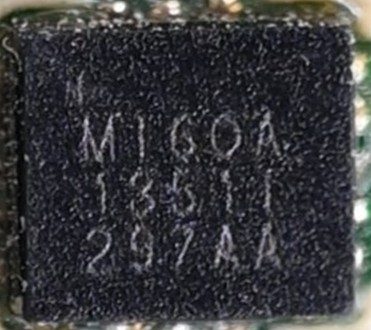

  • M160A 135 11 297 AA not identified Not identifiedrecord ↗ not identified, marked M160A 135 11 297 AA

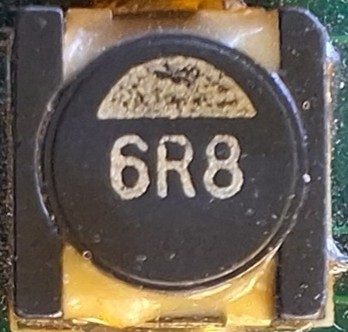

  • 6R8 Throttle Not identifiedrecord ↗ Throttle, marked 6R8

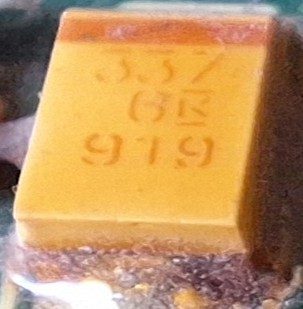

  • 337 6k 919 Tantalum Capacitor KEMET (YAGEO Corporation)United States of Americarecord ↗ Tantalum Capacitor, marked 337 6k 919
  • 106C 110N2 Tantalum Capacitor AVX CorporationUnited States of Americarecord ↗ Tantalum Capacitor, marked 106C 110N2

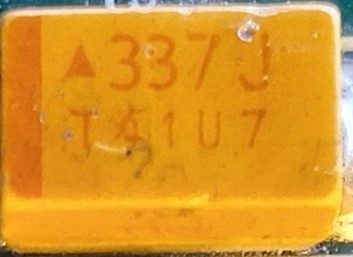

  • 337 J T 41 U7 Tantalum Capacitor AVX CorporationUnited States of Americarecord ↗ Tantalum Capacitor, marked 337 J T 41 U7

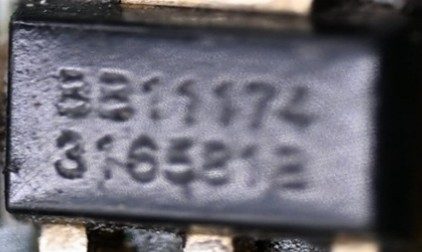

  • BB11174 3165812 Voltage regulator Burr-Brown Corporation (Texas Instruments)United States of Americarecord ↗ Voltage regulator, marked BB11174 3165812
  • HCPL-063L 063L 2217 NSB Optocoupler Broadcom CorporationUnited States of AmericaMade April-May (17 week) 2022record ↗ Optocoupler, marked HCPL-063L 063L 2217 NSB
  • LT146 28631 Voltage regulator Linear Technology Corporation (Analog Devices)United States of Americarecord ↗ Voltage regulator, marked LT146 28631

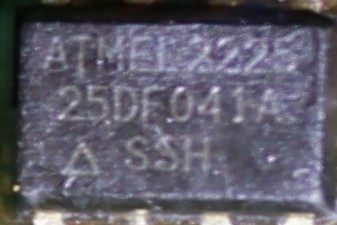

  • 2225 25DF041A SSH Memory chip Atmel (Microchip Technology)United States of Americarecord ↗ Memory chip, marked 2225 25DF041A SSH

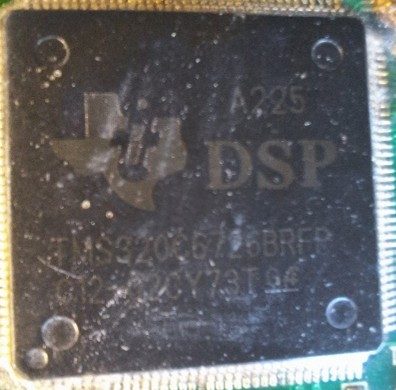

  • А-225 TMS320C6726BRFP C12-32CY73T G4 Digital signal processor Texas InstrumentsUnited States of Americarecord ↗ Digital signal processor, marked А-225 TMS320C6726BRFP C12-32CY73T G4

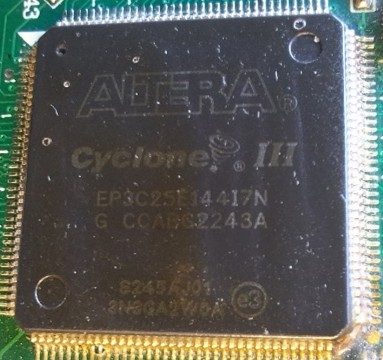

  • Cyclone III EP3C25E14417N G CОABG 2243A S245AJO1 3N3GA2WOA Field programmable gate array (FPGA) Altera Corporation (Intel)United States of Americarecord ↗ Field programmable gate array (FPGA), marked Cyclone III EP3C25E14417N G CОABG 2243A S245AJO1 3N3GA2WOA

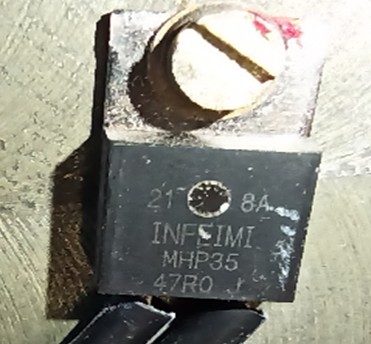

  • 21 8A MHP35 47RO J High power resistor Shenzhen Jiading Industrial Co., Ltd.People's Republic of Chinarecord ↗ High power resistor, marked 21 8A MHP35 47RO J

Part records and photos: HUR War & Sanctions, Ukraine's Defence Intelligence database of foreign components found in Russian weapons, and the other sources named on each part. A marking, date code or country is given as the source records it.
