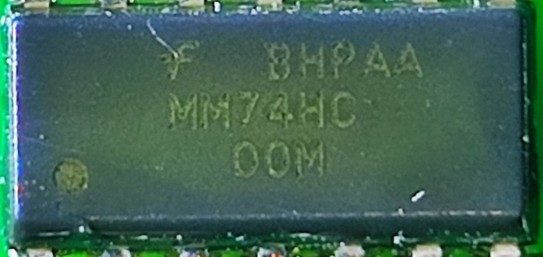

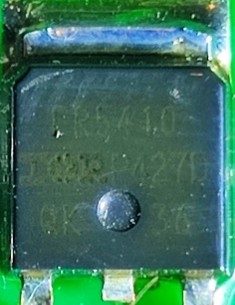

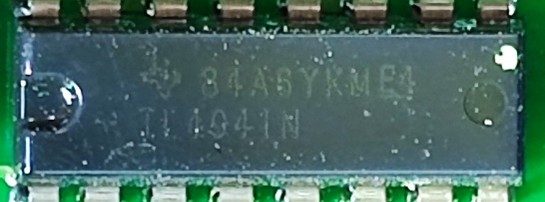

What the Kinzhal is made of
197 documented parts and 160 photos, from recovered wreckage. Each part gives its marking, maker and country where known, and links the record it comes from. The system itself: Kinzhal.
Where the parts were made
- United States of America 155
- MACOM Technology Solutions, Linear Technology Corporation (Analog Devices), Texas Instruments, Analog Devices, Spansion (Cypress Semiconductor, Infineon Technologies), Maxim Integrated Products (Analog Devices), Cypress Semiconductor (Infineon Technologies), Fairchild Semiconductor (ON Semiconductor), Broadcom Corporation, National Semiconductor (Texas Instruments), KYOCERA AVX, Integrated Device Technology (Renesas), Micron Technology, Xilinx Inc. (AMD), Apex Microtechnology, Microchip Technology Inc., Altera Corporation (Intel), Burr-Brown Corporation (Texas Instruments), Holt Integrated Circuits, Inc., Actel, CADDOCK, International Rectifier (Infineon Technologies), Vishay Intertechnology, Inc., Nelson, Marvell Technology Group, HALO Electronics, Inc., AMD, ON Semiconductor (ONSEMI), Littelfuse, Inc., Sipex Corporation, Diodes Incorporated, Pulse Electronics Corporation, Cortina Systems, AVX Corporation
- Japan 17
- Renesas, Sumida Corporation, Murata, Panasonic, Toshiba, ROHM Semiconductor, NEC (Nippon Electric Company)
- Switzerland 10
- Traco Power, STMicroelectronics
- Taiwan 7
- Winbond Electronics Corporation, DM&P Electronics, Macronix International
- Germany 2
- Infineon Technologies, Wurth Elektronik
- Great Britain 1
- Golledge Electronics Ltd.
- Russian Federation 1
- НИТИ Авангард
- Republic of Korea 1
- NETSOL (New Evolution of Technology & SOLution)
- Belarus 1
- ОАО Интеграл
- People's Republic of China 1
- Galaxy Microelectronics
Sources
- HUR War & Sanctions: Aeroballistic missile 9-S-7760 "Kinzhal" (Kh-47M2) · українською
- HUR War & Sanctions: Aeroballistic missile 9-S-7760 "Kinzhal" (Kh-47M2) · українською
- HUR War & Sanctions: U508 active radar homing head of the 9-S-7760 "Kinzhal" aeroballistic missile (Kh-47M2) · українською
- HUR War & Sanctions: Electronic computing machine "Baget-83V" from the 9-S-7760 "Kinzhal" aeroballistic missile (Kh-47M2) · українською
- HUR War & Sanctions: Jammer S200A1-2 of the 9-S-7760 "Kinzhal" aeroballistic missile (Kh-47M2) · українською
- Open Source Munitions Portal — search its munition identification records
Ukrainian pages read alongside the English: same items, markings and text.
Specifications (HUR)
- Housing diameter
- 920 mm
- Length
- 7 175 mm (8 000 with tail fairing)
- Maximum flight altitude
- up to 100 km
- Range
- up to 1 000 km
- Type of combat unit
- penetrating high-explosive (PrFBCh), nuclear (SpetsBCh)
- Weight of the warhead
- 450 kg
Aeroballistic missile 9-S-7760 "Kinzhal" (Kh-47M2) record ↗
Active jamming station
- Digital signal processing module PPUK-C

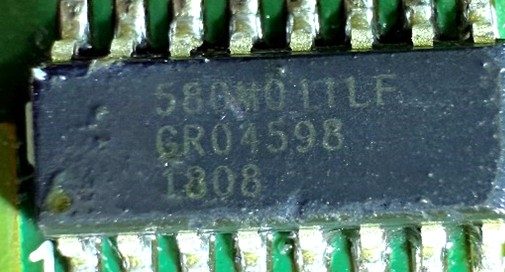

- ICS580-01
ICS580M-01ILF
580M01ILF
GR04598
1808
Clock multiplexer
record ↗

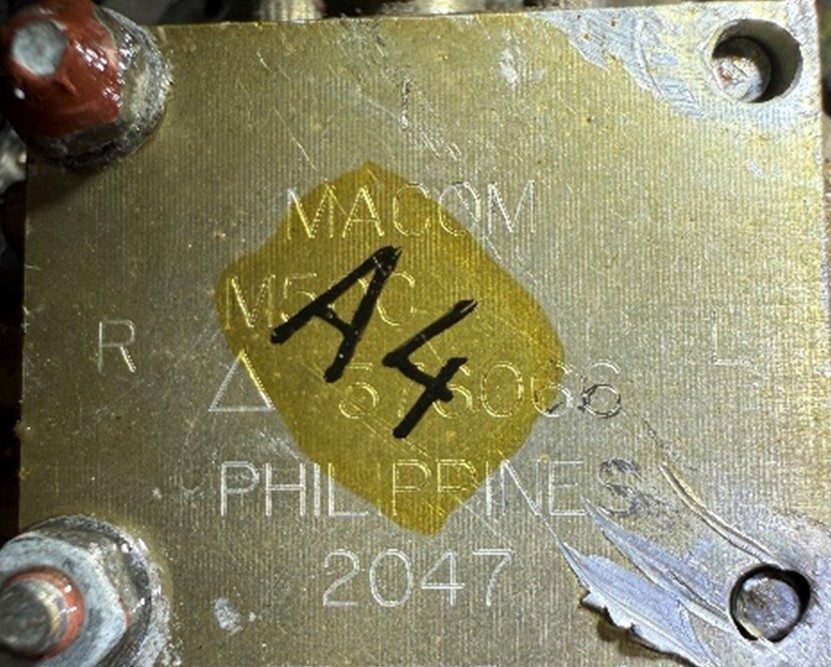

- M50C
376066
2047
Triple-Balanced Mixer
record ↗
- Digital signal processing module PPUK-C

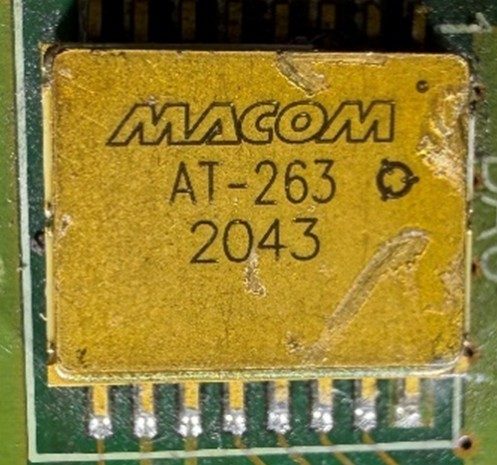

- AT-263-PIN
AT-263
2043
Digital Attenuator, 31 dB, 5-Bit
record ↗

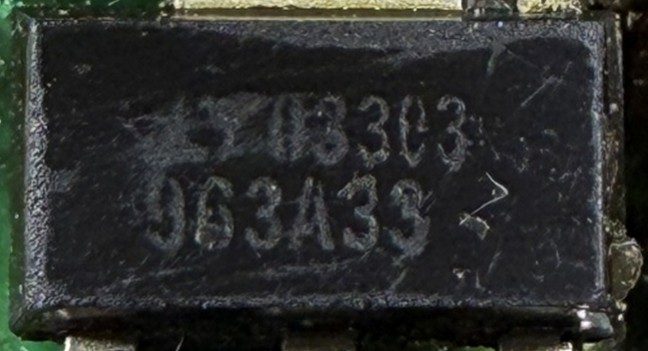

- LT1963AES8-3.3
LT03303
963A33
Voltage regulator with low dropout
record ↗
- Frequency-shift modules

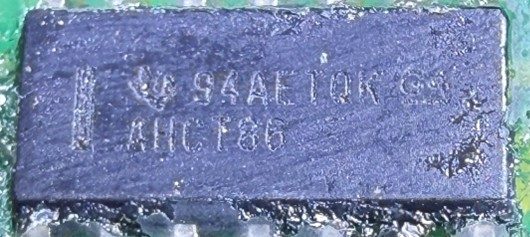

- SN74AHCT86
94AETQK
AHCT86
Quadruple 2-Input Exclusive-OR Gate
record ↗
Aeroballistic missile 9-S-7760 "Kinzhal" (Kh-47M2) record ↗
Antenna and navigation unit
- Consumer onboard navigation equipment BNAP-B
- ADF
4112
BRUZ
3GHz Surface Mount Frequency Synthesizer -40°C ~ 85°C 1899/12/30 2:01:00 16-TSSOP Clock/Frequency (RF) Synthesizer 2.7V ~ 5.5V
record ↗

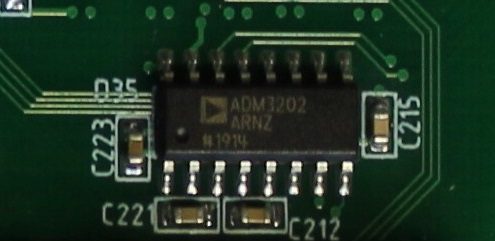

- ADM3202
ARNZ
#1914
Transceiver, Uzhivl, B = 3.0...5.5; Max. Swiss per, kbit/c = 460; Texp, °С = -40...+85; Input type interf. = Full Duplex
record ↗
- AD9283
BRSZ-50
#1748
4074622
0 MSPS 100 MSPS 3V A/D converter
record ↗
- S29AL008J70TF101
134FF052 L
©07 SPANSION
Memory IC 8 Megabit (1 M x 8-Bit/512 K x 16-Bit) CMOS 3.0 Volt-only Boot Sector Flash Memory 8 Mbit 3.0 V 44-pin SO and 48-pin TSOP
record ↗
- DS1803-100
1228A2
+828AP
Addressable double digital potentiometer 100 kΩ, I2C, 8bit, DIP16, THT.
record ↗

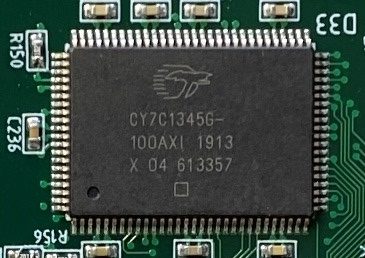

- CY7C1345G-100AXI
1913
X 04 613357
128 KB × 36 cache memory is designed for interaction with high-speed microprocessors
record ↗
- PBXAA
74ACT244
Octal buffer/line driver with 3-STATE outputs
record ↗

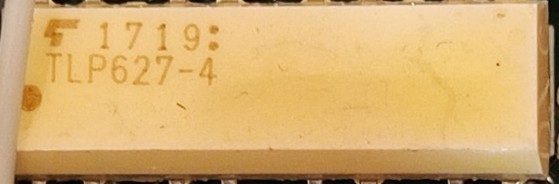

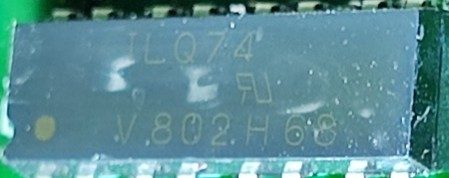

- 0721
1805
ZUA
8-pin 1-channel optocoupler
record ↗
- MAX232
ESE 1834
Multichannel RS-232 drivers/receivers with +5V power supply
record ↗
- 845
EUA
Shutter control driver
record ↗
- 81A3NVU
L26400
YMH
Stabilizer
record ↗

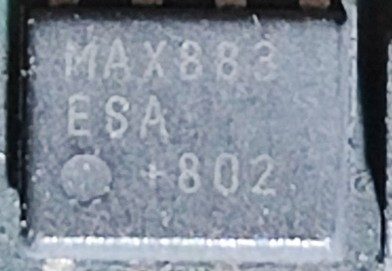

- MAX883
ESA
+802
Linear stabilizer
record ↗
- Δ106V
70F61
Tantalum capacitor
record ↗
- 150
4436
Номінальний струм 1,8А
Опір 174 мОм
Inductance coil 150μH
record ↗
- Printed circuit board 758764.052

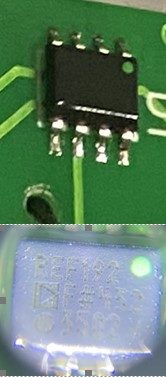

- REF192
F#432
3502
Amplifier
record ↗
- OP484E
#1341
2651496
Integrated circuit
record ↗
- Printed circuit board 1908-170

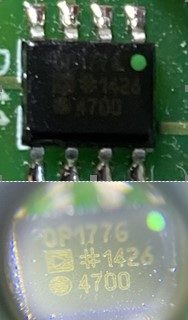

- OP1776
#1426
4700
Amplifier
record ↗

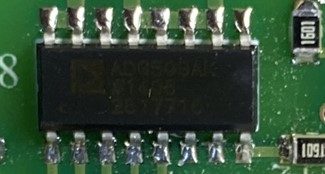

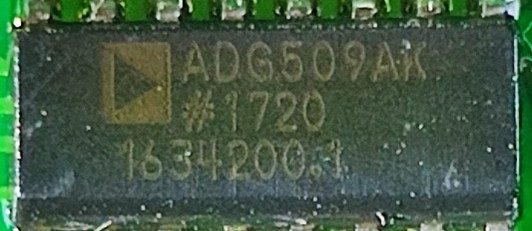

- ADG509AK
#1408
Integrated circuit
record ↗

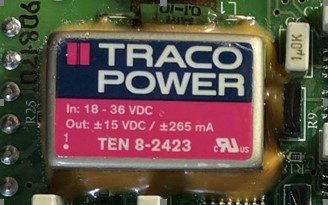

- TRACO POWER
Inc:18-26 VDC
Out±15 VDC/±265mA
TEN 8-2423
TRACO POWER
record ↗
- Printed circuit board 687263.029 8 09205.19
- QS32X861Q1G
Y51731T
A73524PY
IDT integrated circuit
record ↗
- 25G64FVS16
1347
Flash memory Winbond integrated circuit
record ↗
- 223
3701
Integrated circuit
record ↗
- Printed circuit board 467444.006 8 076106.19
- 33703
963A38
Integrated circuit
record ↗
- 1BAYSKK G4
65C23243
Integrated circuit
record ↗
- 6PH17
D9SBV
Integrated circuit
record ↗
- DM&P
Vortex86DX®
1711-D-PBGP
CFA-4K8619
ISOinChip®
High-performance fully static 32-bit X86 processor
record ↗
- Printed circuit board 687263.027 20 07409.19
- ADUM1300
BRWZ
#1106
2054259.1
Integrated circuit
record ↗

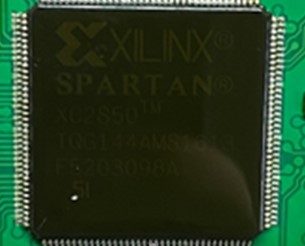

- XILINX
SPARTAN
XC2S50
TQG144AMS1613
F5203098A
5I
Screw matrix
record ↗
- Printed circuit board MAP_Rev20.pcb 468157.012 20 086810.19
- 10
0E
Inductance coil
record ↗
- ADUM1300
BRWZ
#1106
2054259.1
Amplifier
record ↗
- APEX USA
VRE3025J
106871116
Reference voltage source
record ↗
- BNX022
muRata amplifier
record ↗
- 101
Inductance coil
record ↗
- Δ107 A
206B2
Tantalum capacitor
record ↗
- Δ476 E
20184
Tantalum capacitor
record ↗
- Printed circuit board
- XCF 02S TM VG
79336
596 VS
Integrated circuit
record ↗
- TRACO
POWER
TSM0505S
1740
Converter (DC/DC TSM series; 1W; Input: 4.5÷5.5V; Output: 5BDC; Output: 200mA
record ↗
- S2-5V
4А 1/20HP125, 250 VAC
3A 30VDC
Electromagnetic relay
record ↗

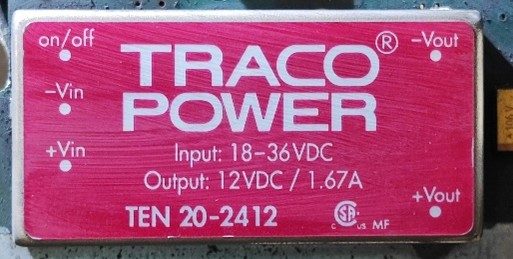

- TRACO
POWER
Input: 18-36VDC
Output: 5 VDC/ 4A
TEN 20-2411
DC/DC converter
record ↗

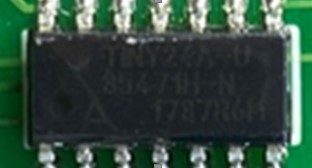

- TINY24A-U
35471H -N
Δ 1787R6M
8-Bit AVR Microcontroller
record ↗
- TG2AA
74AC245
Transceiver
record ↗

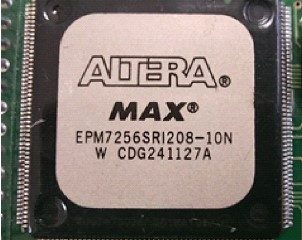

- ALTERA®
MAX®
EPM7256SRI208-10N
W BDG241743A
CPLD-Complex Programmable Logic Device CPLD –256MC 10NS 208RQFP
record ↗
- Printed circuit board BCD_Rev6.pcb 03.2017 468157.013 6

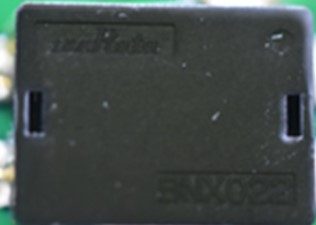

- BNX002
Output combined filter for suppression of electromagnetic interference
record ↗
- 107 J
18E01
Tantalum SMD capacitor
record ↗
- 206E
805N2
Tantalum SMD capacitor
record ↗
- TRACO
POWER
TSM0505S
1340
Converter (DC/DC TSM series; 1W; Input: 4.5÷5.5V; Output: 5BDC; Output: 200mA
record ↗
- ADG409BR
#1346
7493301
Analog switches, multiplexers
record ↗
- ADG509F8
#1333
2690028
Analog switches, multiplexers
record ↗
- DAC842
#1549
2759301.1
Broadband operational amplifier with high output power
record ↗
- AD
977A ARZ
#1909
16-bit analog-to-digital converter
record ↗
- HT573
38KG4
D2XK
D-type latches for load management
record ↗
- PGA206UA
35ALJJT
High speed instrument amplifier with programmable gain
record ↗
- Printed circuit board BCD_Rev6.pcb 03.2017 687263.028 6
- XILINX®
SPARTAN®
XC2S50 TM
TQG144AMS 1129
A4277850A
5I
Programmable gate matrix
record ↗

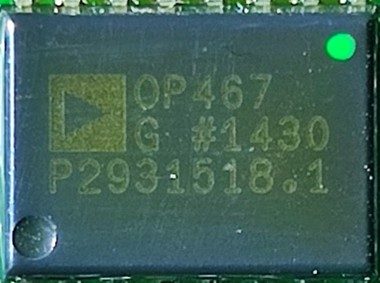

4/8-channel multiplexer
4/8-канальний мультиплексор
ADG509FB #1302 2533513
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
24-bit high-precision ADC with high bandwidth
24-бітний високоточний АЦП з високою пропускною здатністю
AD7734 B#1347 2749122.1
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
4/8-channel high-performance analog multiplexer
4/8-канальний високопродуктивний аналоговий мультиплексор
ADG409BR #1346
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions

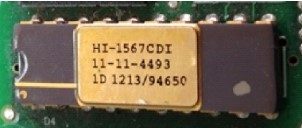

Dual low power transceiver
Подвійний прийомопередавач низької потужності
HI-1567CDI
Photo: HUR War & Sanctions
An integrated circuit with a built-in complex programmable logic device
Інтегральна мікросхема з вбудованим складним програмованим логічним пристроєм
EPM7256SRI208-10N
Photo: HUR War & Sanctions
Hexagonal inverter with Schmitt trigger input
Шестигранний інвертор з тригерним входом Шмітта
PCUAB 74AC14
Photo: HUR War & Sanctions
High-speed CVOS 20-bit bus switch with flow separation
Високошвидкісний CVOS 20-ти бітний шинний комутатор з проточним розведенням
QS32X861Q1G
Photo: HUR War & Sanctions
SRAM is a parallel integrated circuit of 4 Mbit asynchronous memory
SRAM – паралельна інтегральна схема асинхронної пам’яті на 4 Мбіт
CY7C1041DV33-10BVI
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
High-precision reference voltage source
Високоточне джерело опорної напруги
VRE3025J
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Three-channel digital isolator
Трьохканальний цифровий ізолятор
ADUM1300 C #1344 2736425.1*
Photo: HUR War & Sanctions
Three-channel digital isolator
Трьохканальний цифровий ізолятор
ADUM1300 BRWZ #1333 2677991.1*
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Broadband interference suppression filter
Широкосмуговий завадопридушуючий фільтр
BNX022
Photo: HUR War & Sanctions
High-speed instrumental amplifier with programmable gain
Високошвидкісний інструментальний підсилювач з програмованим підсиленням
PGA206UA 39A1R1T
Photo: HUR War & Sanctions
Programmable highly specialized ASIC chip
Програмована вузькоспеціалізована ASIC-мікросхема
XC2S50-TQG144AMS
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Low-noise linear regulator 1.5 A
Слабошумлячий лінійний регулятор 1,5 А
337e3 963A33
Photo: HUR War & Sanctions
System on a crystal, built on an x86-compatible core
Система на кристалі, побудована на х86-сумісномі ядрі
Vortex86DX
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
12-bit analog-to-digital converter
12-разрядний аналогово-цифровий перетворювач
AD7450BRZ
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Dual-function fuse resistor
Двохфункціональний запобіжниковий резистор
F5210S
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
8-channel bus transceiver with 3 outputs
8-ми канальна шина трансівер с 3 виходами
LS245
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
16 bit buffer and line driver with 3 outputs
16 розрядний буфер та лінійний драйвер з 3 виходами
LVT162244A
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
U508 active radar homing head of the 9-S-7760 "Kinzhal" aeroballistic missile (Kh-47M2) record ↗
Coordinator GS-31
- ISAT.468332.047 board

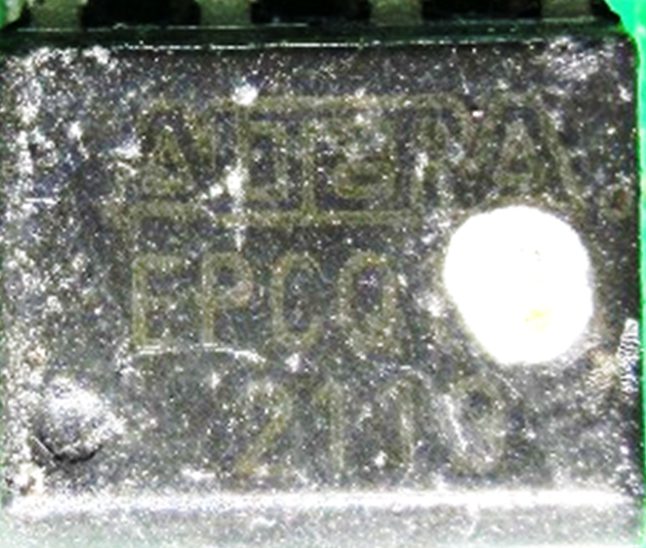

- EPCQ
2110
Configuration device
record ↗

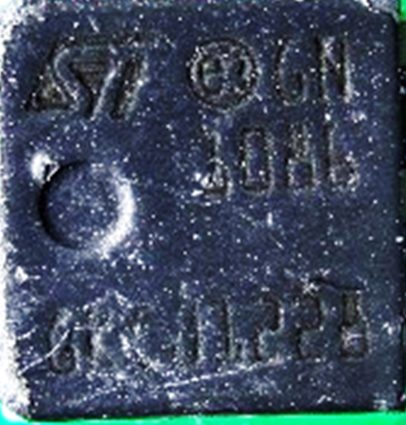

- GN
1086
GKKJ1228
Linear voltage regulator
record ↗

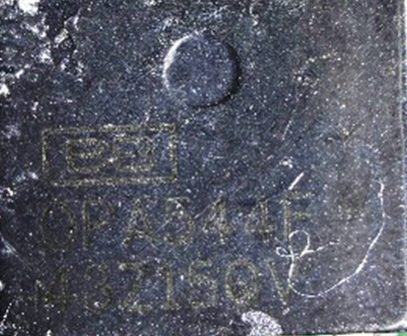

- OPA544F
43Z15QV
Operational amplifier
record ↗

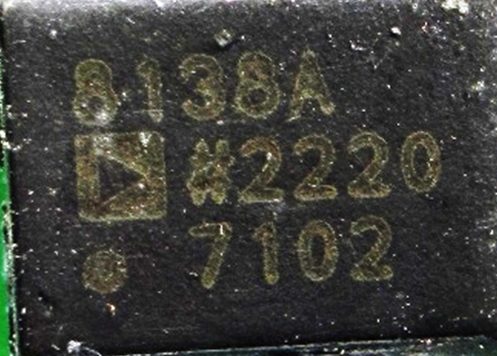

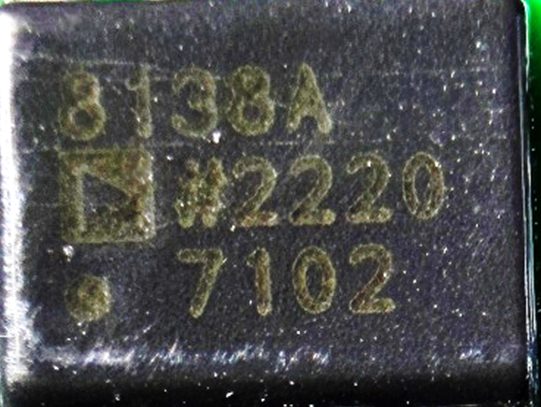

- 8138A
#2220
7102
Differential ADC driver
record ↗

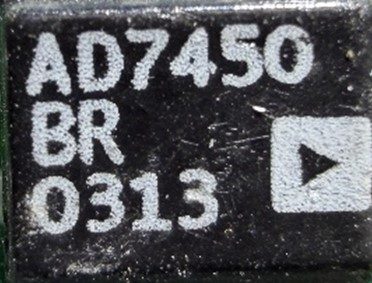

- AD7450
BR
0313
Analogue-to-digital converter
record ↗

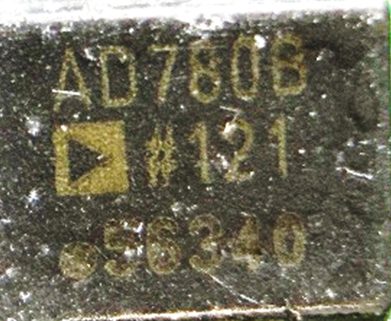

- AD780B
#121
56340
High precision reference
record ↗

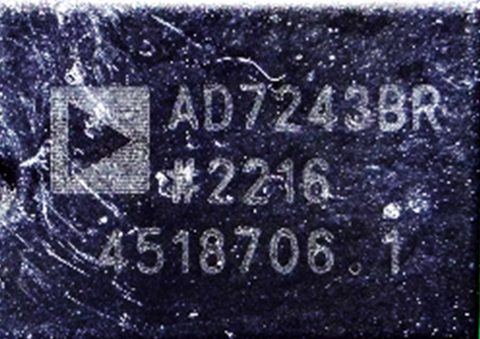

- AD724BR
#2216
4518706.1
RGB to NTSC/PAL encoder
record ↗

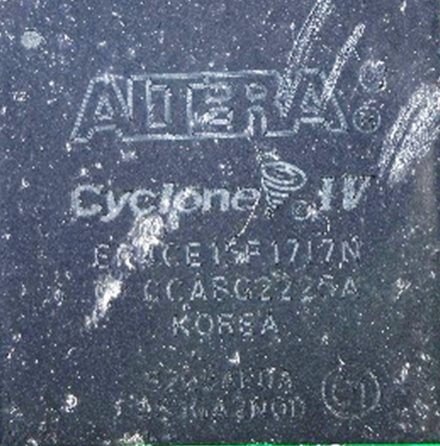

- Cyclone IV
EP4CE15F1717N
CCABG2225A
KOREA
S228AFDA
9S1GA2N0D
Field-programmable gate array (FPGA)
record ↗

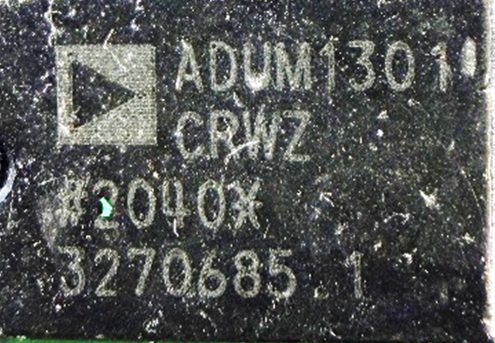

- ADUM1301
CRWZ
#2040X
3270685.1
3-channel digital isolator
record ↗
ISAT.687264.096_6 board

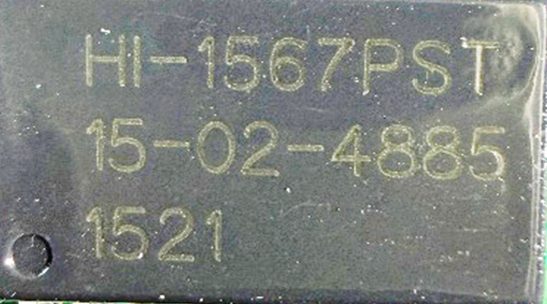

- HI-1567PST
15-02-4885
1521
Transceiver
record ↗

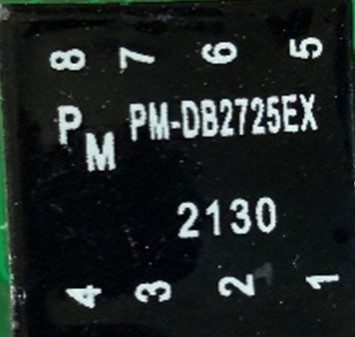

- PM-DB2725EX
2130
Transformer
record ↗

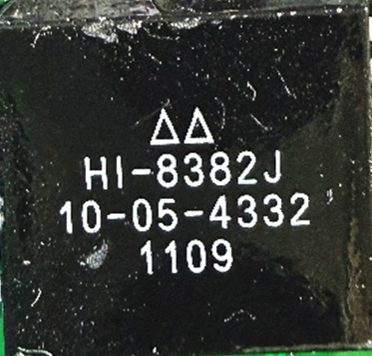

- HI-8382J
10-05-4332
1109
Line driver
record ↗

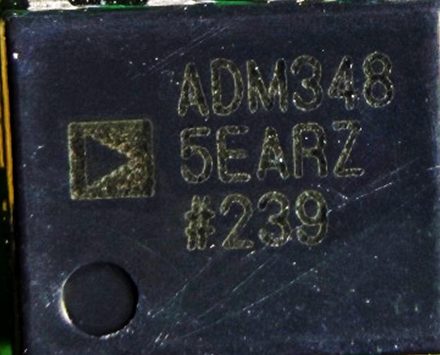

- ADM348
5EARZ
#239
RS-485/RS-422 transceiver
record ↗

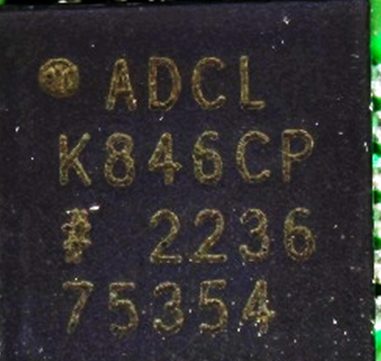

- ADCL
K846CP
#2236
75354
Clock fan-out buffer
record ↗

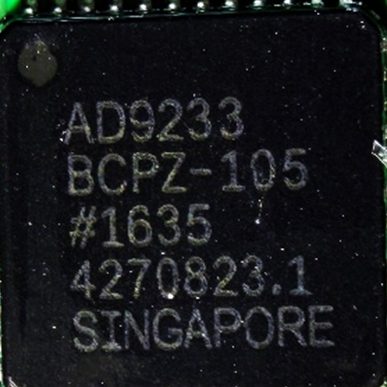

- AD9233
BCPZ-105
#1635
4270823.1
SINGAPORE
Analogue-to-digital converter
record ↗

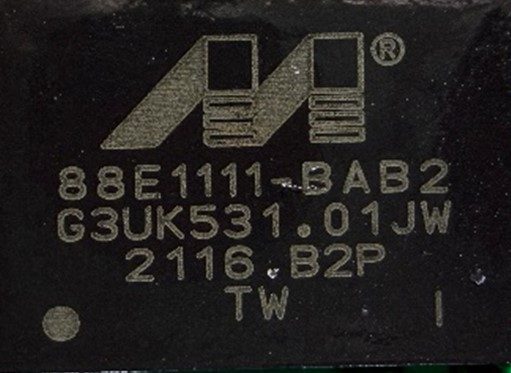

- 88E1111-BAB2
G3UK531.01JW
2116 B2P
TW
Ethernet transceiver
record ↗

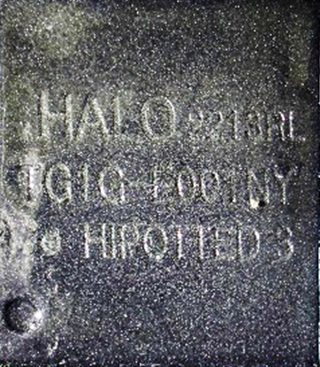

- HALO 2213RL
TG1G-E001NY
HIPOTTED 3
Gigabit Ethernet transformer
record ↗

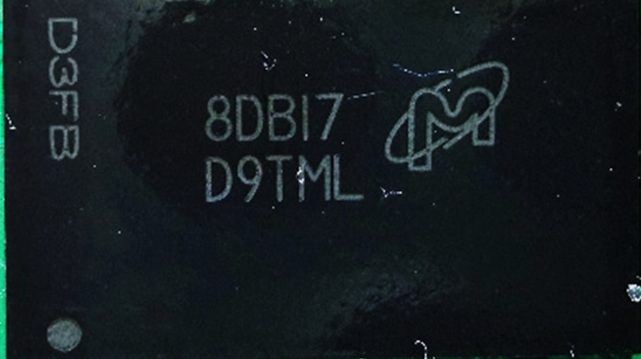

- 8DB17
D9TML
D3FB
Memory chip
record ↗

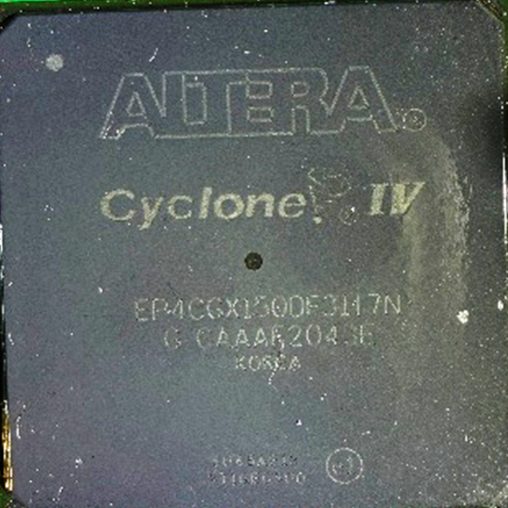

- Cyclone IV
EP4CGX150DF31I7N
G CAAAF2043E
KOREA
Field-programmable gate array (FPGA)
record ↗

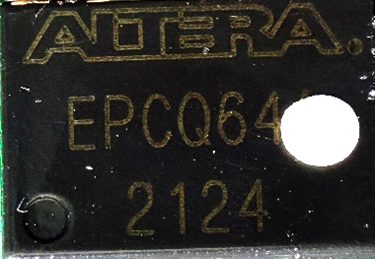

- EPCQ64
2124
Configuration device
record ↗

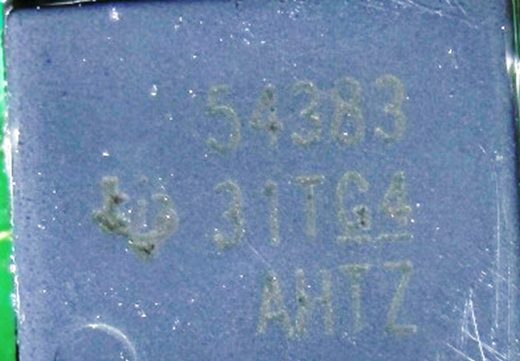

- 54383
31TG4
AHTZ
Step-down converter
record ↗

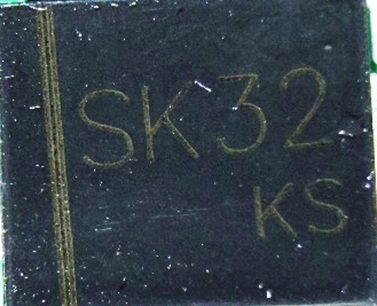

- SK32
KS
Schottky diode
record ↗

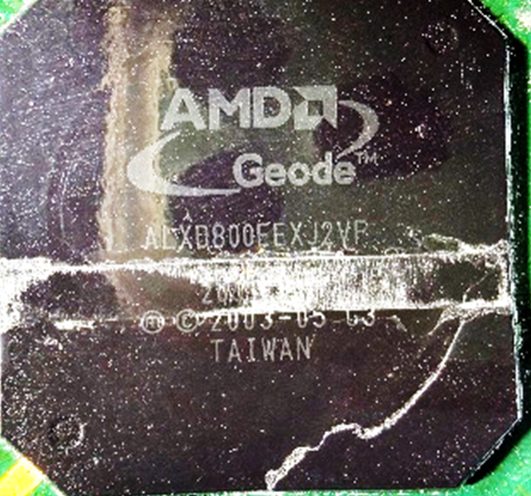

- Geode
ALXB800EEXJ2VP
2003-05 C3
TAIWAN
Microprocessor
record ↗

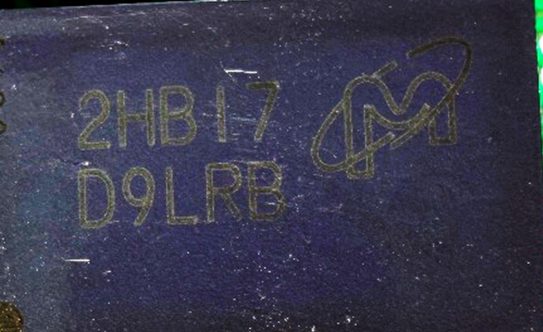

- 2HB17
D9LRB
Memory chip
record ↗

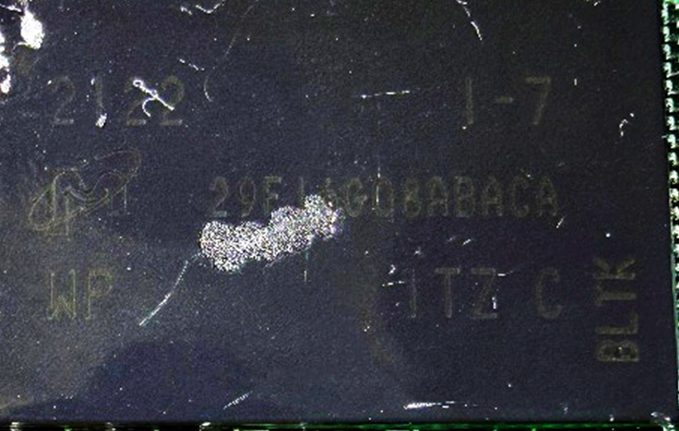

- 2122 1-7
29F64G08ABACA
WP ITZ C
BLTK
Memory chip
record ↗
- 8138A
#2220
7102
Differential ADC driver
record ↗

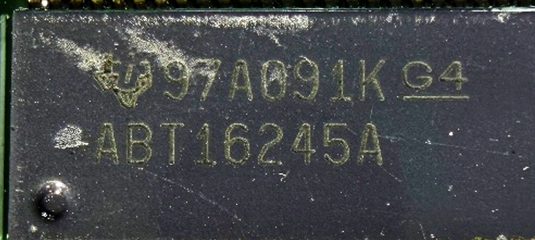

- 97A091K G4
ABT16245A
16-bit bus transceiver
record ↗
Electronic computing machine "Baget-83V" from the 9-S-7760 "Kinzhal" aeroballistic missile (Kh-47M2) record ↗

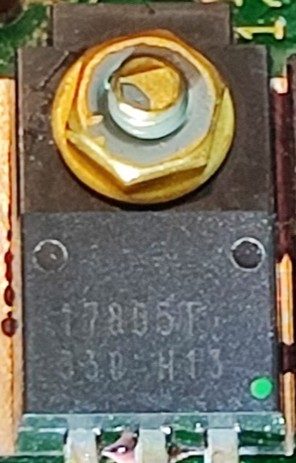

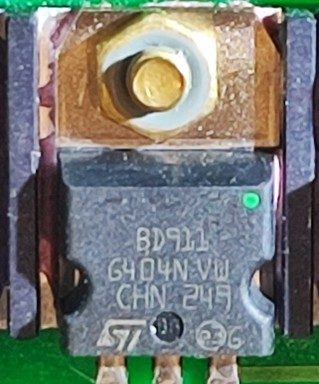

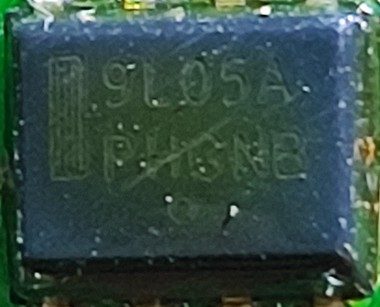

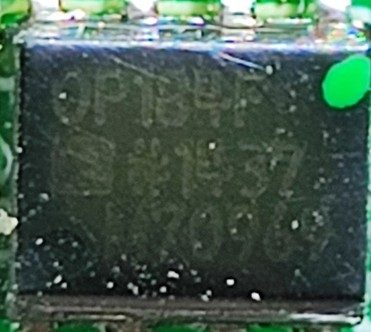

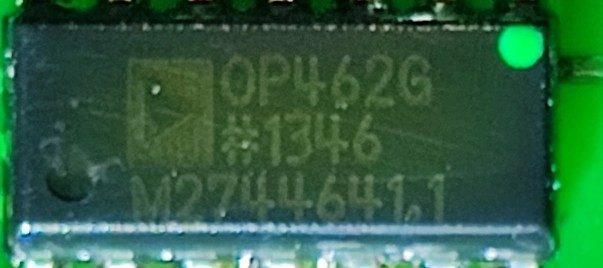

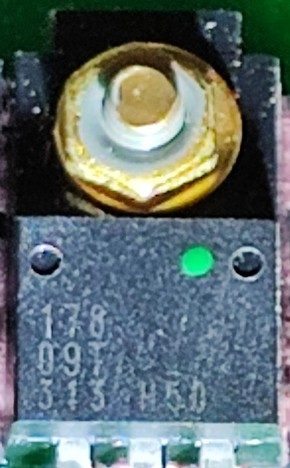

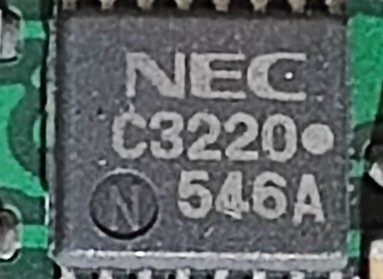

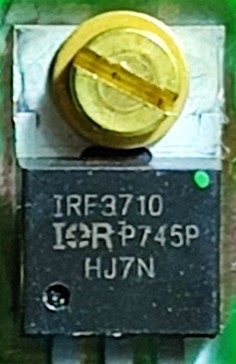

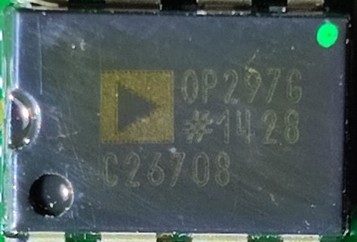

Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions

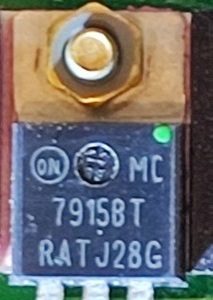

Negative Voltage Regulator
Регулятор отрицательного напряжения
MC7915BT RATJ28G
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions

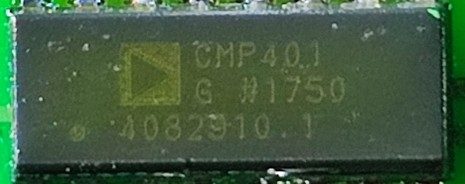

Low Voltage Comparator
Компаратор низької напруги
CMP401 G #1750 4082910.1
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Photo: HUR War & Sanctions
Low Power Microprocessor Supervisory Circuit
Супервайзер мікропроцесорів малої потужності
SP706SE 1235L E18802
16 bit buffer and line driver with 3 outputs
16 розрядний буфер та лінійний драйвер з 3 виходами
LVT162244A 8BADP0K
Hex Schmitt-Trigger Inverter
Інвертор з шістнадцятковим тригером Шмітта
SN74LVC14A LVC14A 6ACG79K
8-channel bus transceiver with 3 outputs
8-ми канальна шина трансівер с 3 виходами
LS245 8ACPLK G4
Multiplier and zero delay buffer
Множник та буфер нульової затримки
574MILF GR06524PY 1821
Multiplier and zero delay buffer
Мультиплікатор та буфер нульової затримки
ICS570 570AILF GRO8644PY 1841
Jammer S200A1-2 of the 9-S-7760 "Kinzhal" aeroballistic missile (Kh-47M2) record ↗
Synchronous step-down voltage regulator TPS565208
Синхронний понижуючий стабілізатор напруги TPS565208
5208
Part records and photos: HUR War & Sanctions, Ukraine's Defence Intelligence database of foreign components found in Russian weapons, and the other sources named on each part. A marking, date code or country is given as the source records it.
