What the Kh-59 is made of

109 documented parts and 111 photos, from recovered wreckage. Each part gives its marking, maker and country where known, and links the record it comes from.

Where the parts were made

United States of America 77
Cypress Semiconductor (Infineon Technologies), Texas Instruments, Analog Devices, Marvell Technology Group, Altera Corporation (Intel), Spansion (Cypress Semiconductor, Infineon Technologies), National Semiconductor (Texas Instruments), Linear Technology Corporation (Analog Devices), Skyworks Solutions, Inc, Dallas Semiconductor (Maxim Integrated, Analog Devices), Maxim Integrated Products (Analog Devices), Integrated Silicon Solution (Ingenic Semiconductor), HALO Electronics, Inc., ON Semiconductor (ONSEMI), KEMET (YAGEO Corporation), KYOCERA AVX
Russian Federation 16
NPP RADAR MMS JSC, MNITI CJSC, KB NAVIS JSC, ITT JSC, APZ JSC, UAPO JSC, GOSNIIMASH JSC, OKB CRYSTAL JSC, VMP AVITEK JSC, UPKB DETAIL JSC, NIIHIT JSC, ODK-SATURN PJSC
Switzerland 9
STMicroelectronics
Netherlands 1
NXP Semiconductors
Ireland 1
TE Connectivity

Sources

Ukrainian pages read alongside the English: same items, markings and text.

Specifications (HUR)

Housing diameter
0.38 / 0.42 m
Launch weight
up to 960 kg
Length
up to 5.7 m
Range
285 km
Speed
310 m/s
Weight of the warhead
320 kg
Wingspan
1.3 m

Kh-59M2/M2A Missile record ↗

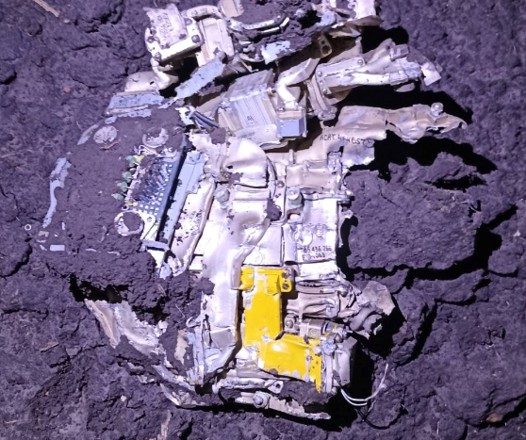

Active radar homing head ARGSN U559

Активна радіолокаційна головка самонаведення АРГСН У559

NPP RADAR MMS JSCRussian Federation

HUR War & Sanctions record ↗

  • Active radar homing head ARGSN U559 — photo

Photo: HUR War & Sanctions

  • Board

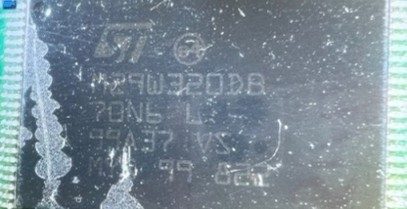

  • M29W320DB 70N6 L 99A37 VS MYS 99 822 Memory chip STMicroelectronicsSwitzerlandrecord ↗ Memory chip, marked M29W320DB 70N6 L 99A37 VS MYS 99 822

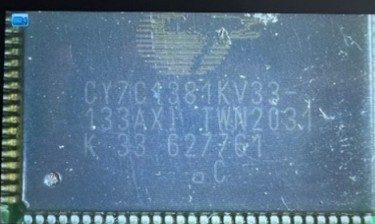

  • CY7C1381KV33 133AXI TWN2031 K 33 627761 Memory chip Cypress Semiconductor (Infineon Technologies)United States of AmericaMade August (31 week) 2020record ↗ Memory chip, marked CY7C1381KV33 133AXI TWN2031 K 33 627761
  • LD1086 GN 1086 GKJ4Y231 Voltage regulator STMicroelectronicsSwitzerlandrecord ↗ Voltage regulator, marked LD1086 GN 1086 GKJ4Y231
  • SN74ABT534A 7AC451K ABT534A G4 Microcircuit Texas InstrumentsUnited States of Americarecord ↗ Microcircuit, marked SN74ABT534A 7AC451K ABT534A G4
  • AD9218 BSZT-105 #1032 1928731.1 10-Bit Dual DAC Analog DevicesUnited States of AmericaMade August (32 week) 2010record ↗ 10-Bit Dual DAC, marked AD9218 BSZT-105 #1032 1928731.1

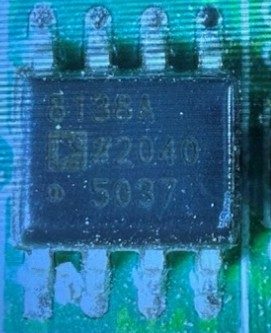

  • AD8138 8138A #2040 5037 Differential ADC Driver Analog DevicesUnited States of AmericaMade October (40 week) 2020record ↗ Differential ADC Driver, marked AD8138 8138A #2040 5037

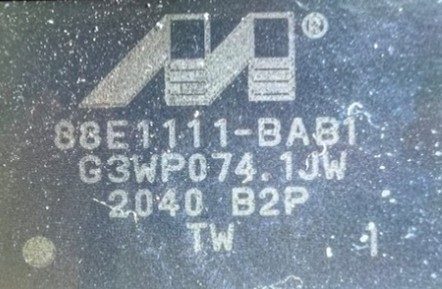

  • 88E1111-BAB1 G3WPO74.1JW 2040 B2P TW Ethernet transceiver Marvell Technology GroupUnited States of AmericaMade September (40 week) 2020record ↗ Ethernet transceiver, marked 88E1111-BAB1 G3WPO74.1JW 2040 B2P TW

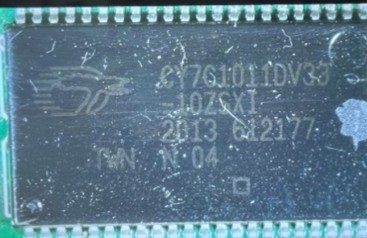

  • CY7C1011DV33-10ZSXI 2013 612177 TWN N 04 Memory chip Cypress Semiconductor (Infineon Technologies)United States of AmericaMade May (13 week) 2020record ↗ Memory chip, marked CY7C1011DV33-10ZSXI 2013 612177 TWN N 04
  • EPCQ64A 2032 Configuration Device Altera Corporation (Intel)United States of AmericaMade August (32 week) 2020record ↗ Configuration Device, marked EPCQ64A 2032
  • ER4CGX110DF3117N G CAAAF2137E PLD Altera Corporation (Intel)United States of AmericaMade September (37 week) 2021record ↗ PLD, marked ER4CGX110DF3117N G CAAAF2137E PLD, marked ER4CGX110DF3117N G CAAAF2137E
  • EPC1PI8N W HCE521819A Configuration Device for memory chips Altera Corporation (Intel)United States of AmericaMade 2018record ↗ Configuration Device for memory chips, marked EPC1PI8N W HCE521819A
  • EPF10K20RI208-4N U DBA561643A PLD Altera Corporation (Intel)United States of AmericaMade October (43 week) 2016record ↗ PLD, marked EPF10K20RI208-4N U DBA561643A
  • Board ISAT.468362.003 RLGSN
  • AD7450 BR 205 12-bit ADC Analog DevicesUnited States of Americarecord ↗ 12-bit ADC, marked AD7450 BR 205

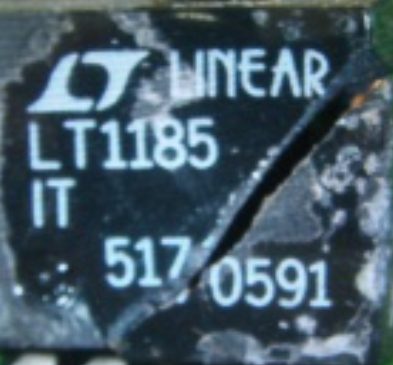

  • LT1185 IT 5170591 LINEAR voltage regulator Linear Technology Corporation (Analog Devices)United States of Americarecord ↗ LINEAR voltage regulator, marked LT1185 IT 5170591

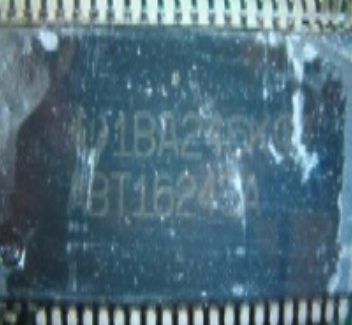

  • 1BA246K04 ABT16245A 16-bit bus transceiver Texas InstrumentsUnited States of Americarecord ↗ 16-bit bus transceiver, marked 1BA246K04 ABT16245A

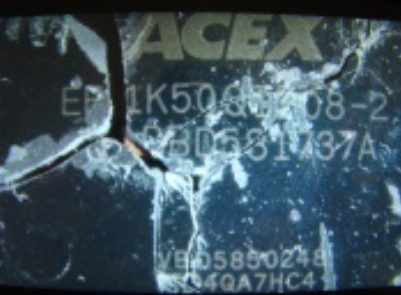

  • EP1K50QI208 Q DBD581737A VBD5850248 304QA7HC4 ACEX Altera Corporation (Intel)United States of AmericaMade September (37th week) 2017record ↗ ACEX, marked EP1K50QI208 Q DBD581737A VBD5850248 304QA7HC4
  • Board ISAT.467881.014 RLGSN

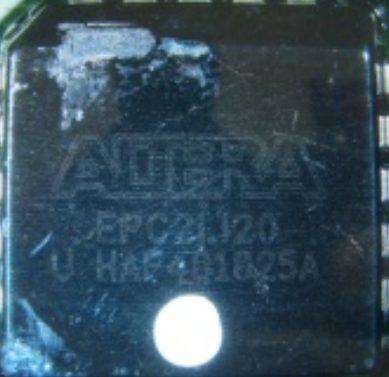

  • ALTERA EPC2LI20 U HAP 481825A PLD Altera Corporation (Intel)United States of AmericaMade June (25th week) 2018record ↗ PLD, marked ALTERA EPC2LI20 U HAP 481825A

Television homing head TVGSN

Телевізійна головка самонаведення ТВГСН

MNITI CJSCRussian Federation

HUR War & Sanctions record ↗

  • Television homing head TVGSN — photo

Photo: HUR War & Sanctions

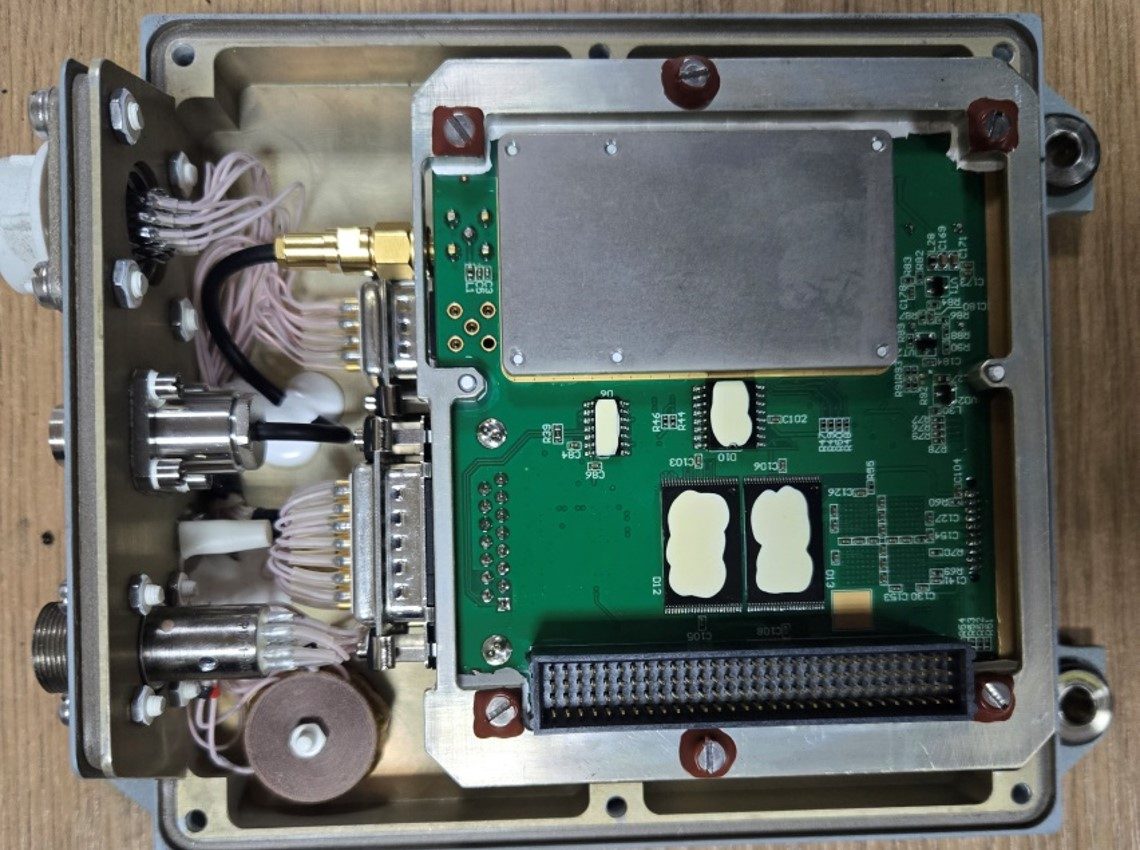

Satellite navigation system unit SN-99

Блок супутникової навігаційної системи СН-99

KB NAVIS JSCRussian Federation

HUR War & Sanctions record ↗

  • Satellite navigation system unit SN-99 — photo

Photo: HUR War & Sanctions

  • Board TDCK.468173.005-05 order No. 23011010
  • SPANSION 07 ALO16J70BFI01 23868441 L THA 721861 16-Mbit flash memory boot sector chip Spansion (Cypress Semiconductor, Infineon Technologies)United States of Americarecord ↗ 16-Mbit flash memory boot sector chip, marked SPANSION 07 ALO16J70BFI01 23868441 L THA 721861

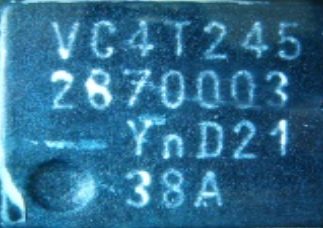

  • 2870003 YnD21 38A 4-bit transceiver VC4T245 NXP SemiconductorsNetherlandsrecord ↗ 4-bit transceiver VC4T245, marked 2870003 YnD21 38A
  • 7689 BCPZ #2235 66440 16-bit ADC Analog DevicesUnited States of AmericaMade August (35th week) 2022record ↗ 16-bit ADC, marked 7689 BCPZ #2235 66440

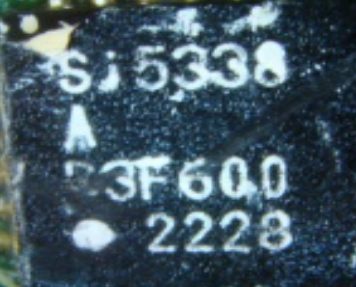

  • Si5338 A R3F600 2228 4-channel frequency synthesizer Skyworks Solutions, IncUnited States of AmericaMade July (28th week) 2022record ↗ 4-channel frequency synthesizer, marked Si5338 A R3F600 2228
  • RS-232 ADM 3202A #212 2-channel driver Analog DevicesUnited States of Americarecord ↗ 2-channel driver, marked RS-232 ADM 3202A #212

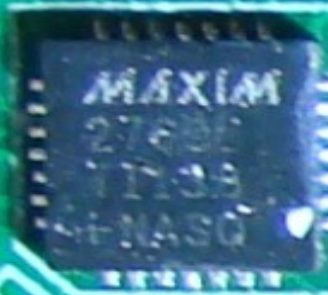

  • MAXIM 2769E TI 138 + NASQ GPS/GLONASS receiver chip Analog DevicesUnited States of Americarecord ↗ GPS/GLONASS receiver chip, marked MAXIM 2769E TI 138 + NASQ

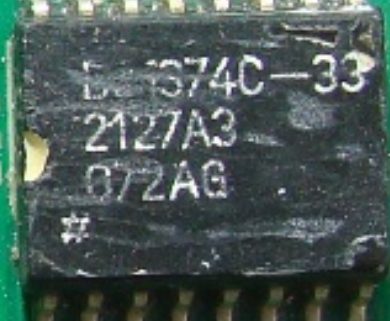

  • 2127A3 072AG 32-bit watchdog timer chip DS1374C - 33 Dallas Semiconductor (Maxim Integrated, Analog Devices)United States of AmericaMade July (27th week) 2021record ↗ 32-bit watchdog timer chip DS1374C - 33, marked 2127A3 072AG

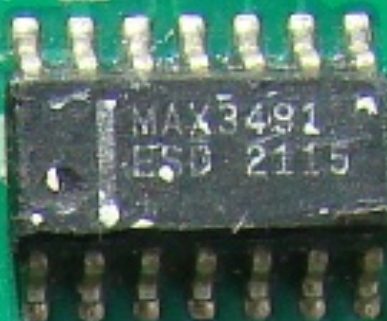

  • MAX3491 ESD 2115 RS-RS-485/RS-422 converter Maxim Integrated Products (Analog Devices)United States of AmericaMade April (15th week) 2021record ↗ RS-RS-485/RS-422 converter, marked MAX3491 ESD 2115

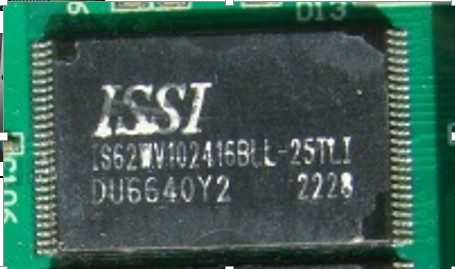

  • ISSI IS62WV102416DLL-25TLI DU6640Y2 2228 16MB RAM memory chip Integrated Silicon Solution (Ingenic Semiconductor)United States of AmericaMade July (28th week) 2022record ↗ 16MB RAM memory chip, marked ISSI IS62WV102416DLL-25TLI DU6640Y2 2228

BINS-M2 platformless inertial navigation system

Безплатформенна інерціальна навігаційна система БИНС-М2

ITT JSCRussian Federation

HUR War & Sanctions record ↗

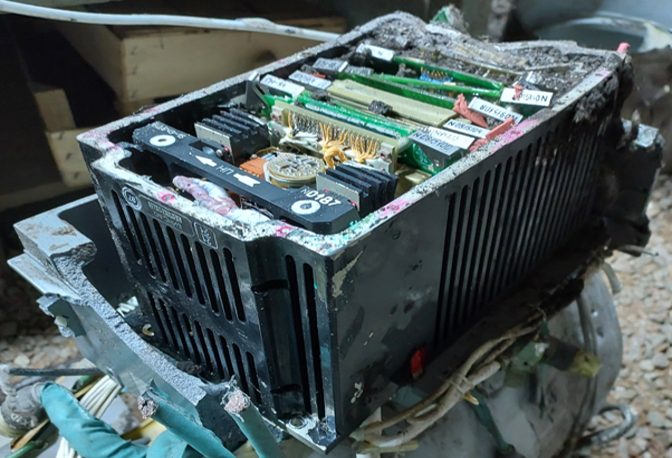

  • BINS-M2 platformless inertial navigation system — photo

Photo: HUR War & Sanctions

  • CPS-14 central processing unit

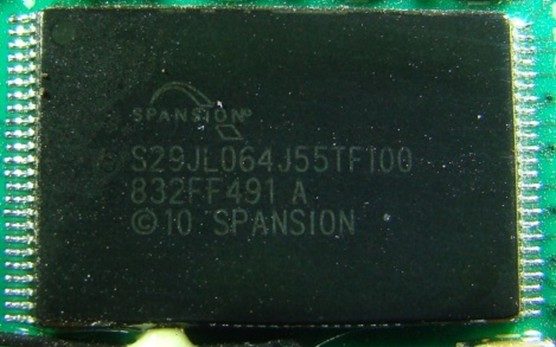

  • S29JL064J55TF100 832FF491 A Memory chip Spansion (Cypress Semiconductor, Infineon Technologies)United States of Americarecord ↗ Memory chip, marked S29JL064J55TF100 832FF491 A
  • BPN-25 voltage conversion unit

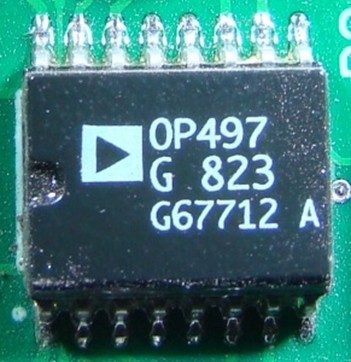

  • OP497 G 823 G67712 A Quad Operational Amplifier Analog DevicesUnited States of Americarecord ↗ Quad Operational Amplifier, marked OP497 G 823 G67712 A
  • BU-61 operational amplifier unit

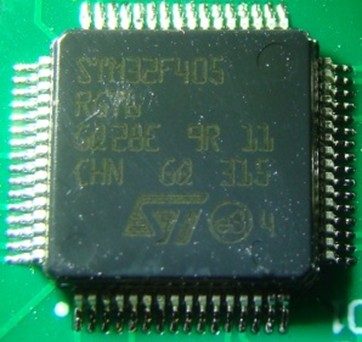

  • STM32F405RGT6 GQ28E 9R 11 CHN GQ 315 Microcontroller 32-bit STMicroelectronicsSwitzerlandrecord ↗ Microcontroller 32-bit, marked STM32F405RGT6 GQ28E 9R 11 CHN GQ 315

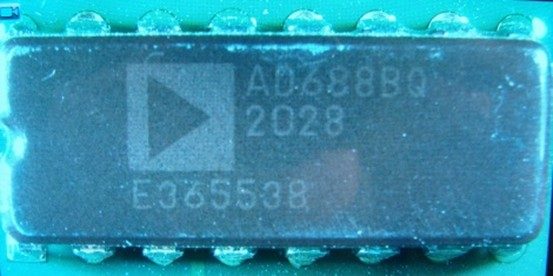

  • AD688BQ 2028 E365538 High Precision Voltage Reference Analog DevicesUnited States of AmericaMade July (28 week) 2020record ↗ High Precision Voltage Reference, marked AD688BQ 2028 E365538
  • BPS-6 signal conversion unit

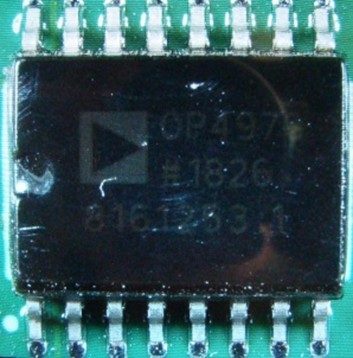

  • OP497G #1826 8161253.1 Quad Operational Amplifier Analog DevicesUnited States of AmericaMade June (26 week) 2018record ↗ Quad Operational Amplifier, marked OP497G #1826 8161253.1

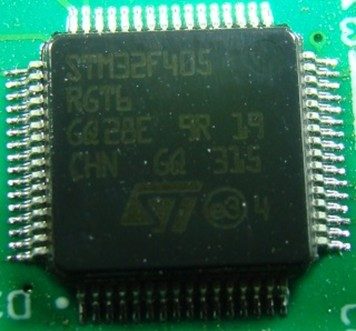

  • STM32F405RGT6 GQ28E 9R 19 CHN GQ 315 Microcontroller 32-bit STMicroelectronicsSwitzerlandrecord ↗ Microcontroller 32-bit, marked STM32F405RGT6 GQ28E 9R 19 CHN GQ 315

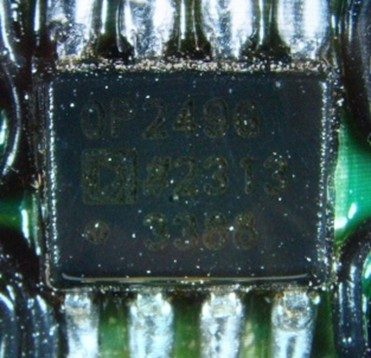

  • OP249G #2313 3388 Dual Operational Amplifier Analog DevicesUnited States of AmericaMade April (13 week) 2023record ↗ Dual Operational Amplifier, marked OP249G #2313 3388

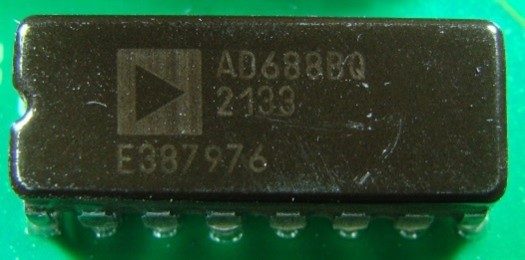

  • AD688BQ 2133 E387976 High Precision Voltage Reference Analog DevicesUnited States of AmericaMade August (33 week) 2021record ↗ High Precision Voltage Reference, marked AD688BQ 2133 E387976
  • A82AG E4 LM199AH Precision Reference National Semiconductor (Texas Instruments)United States of Americarecord ↗ Precision Reference, marked A82AG E4 LM199AH Precision Reference, marked A82AG E4 LM199AH

Control unit (autopilot) BU-59M2

Блок управління (автопілот) БУ-59М2

APZ JSCRussian Federation

HUR War & Sanctions record ↗

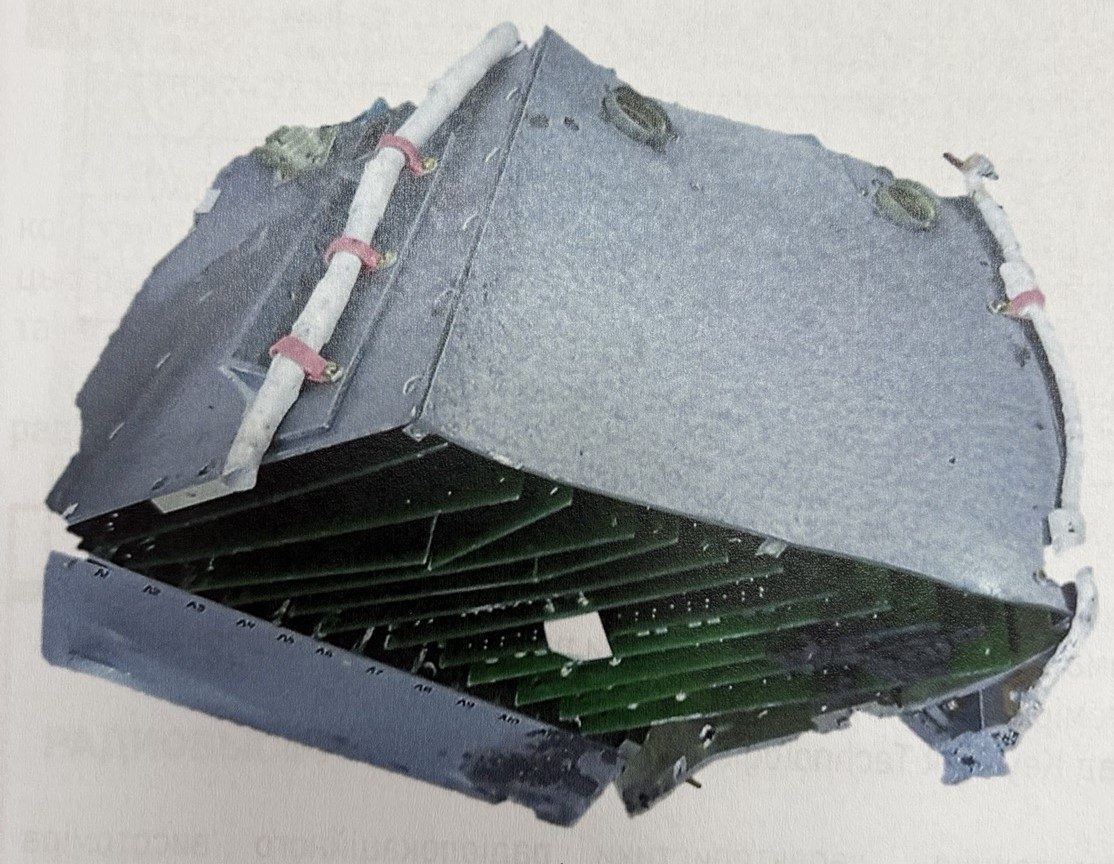

  • Control unit (autopilot) BU-59M2 — photo

Photo: HUR War & Sanctions

Antenna device for the SN-99 satellite navigation system

Антенний пристрій супутникової навігаційної системи СН-99

KB NAVIS JSCRussian Federation

HUR War & Sanctions record ↗

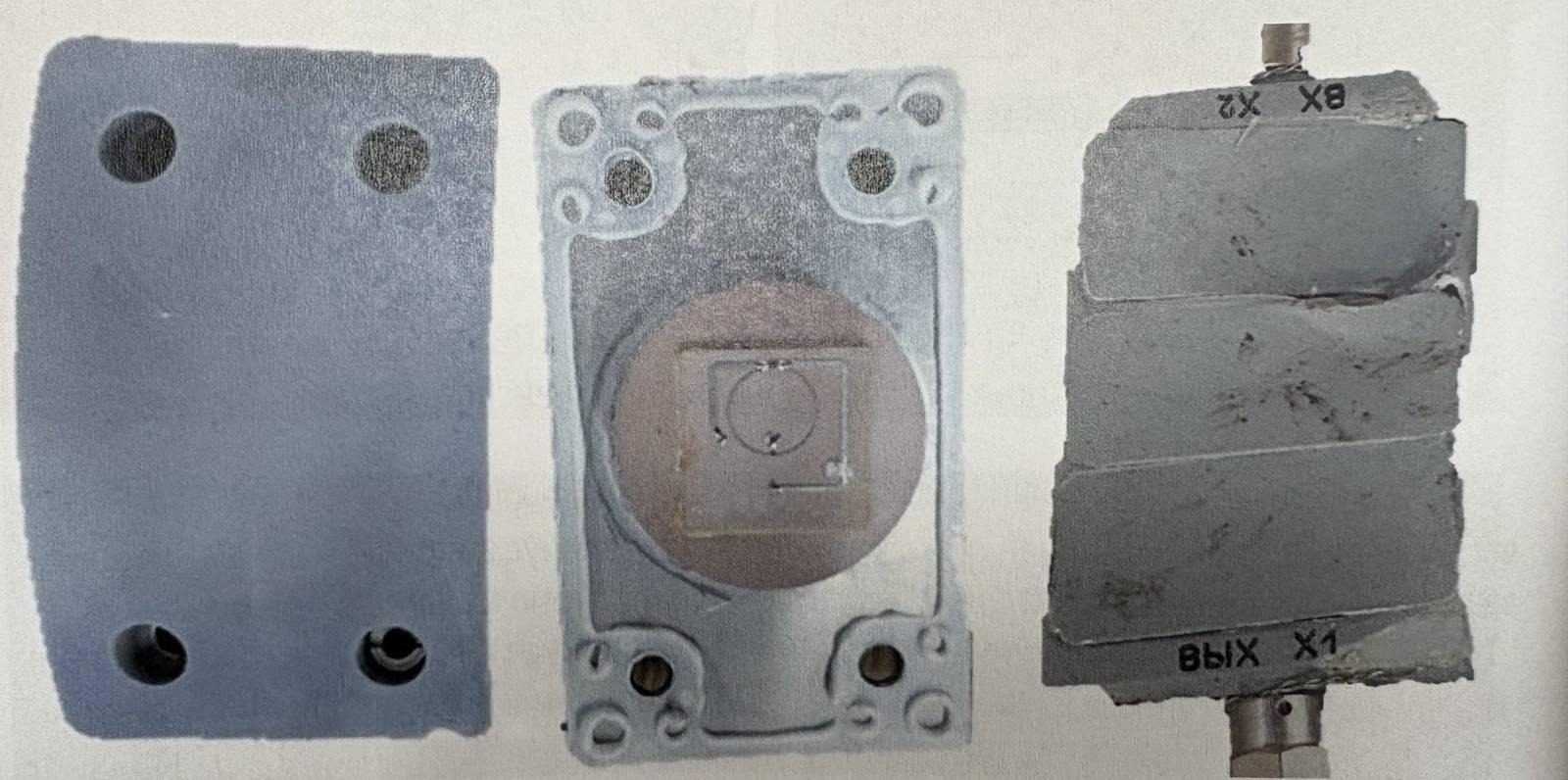

  • Antenna device for the SN-99 satellite navigation system — photo

Photo: HUR War & Sanctions

BVRK Rectification and regulation unit

БВРК Блок випрямлення та регулювання

UAPO JSCRussian Federation

HUR War & Sanctions record ↗

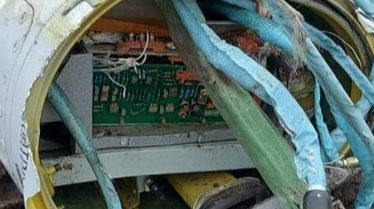

  • BVRK Rectification and regulation unit — photo

Photo: HUR War & Sanctions

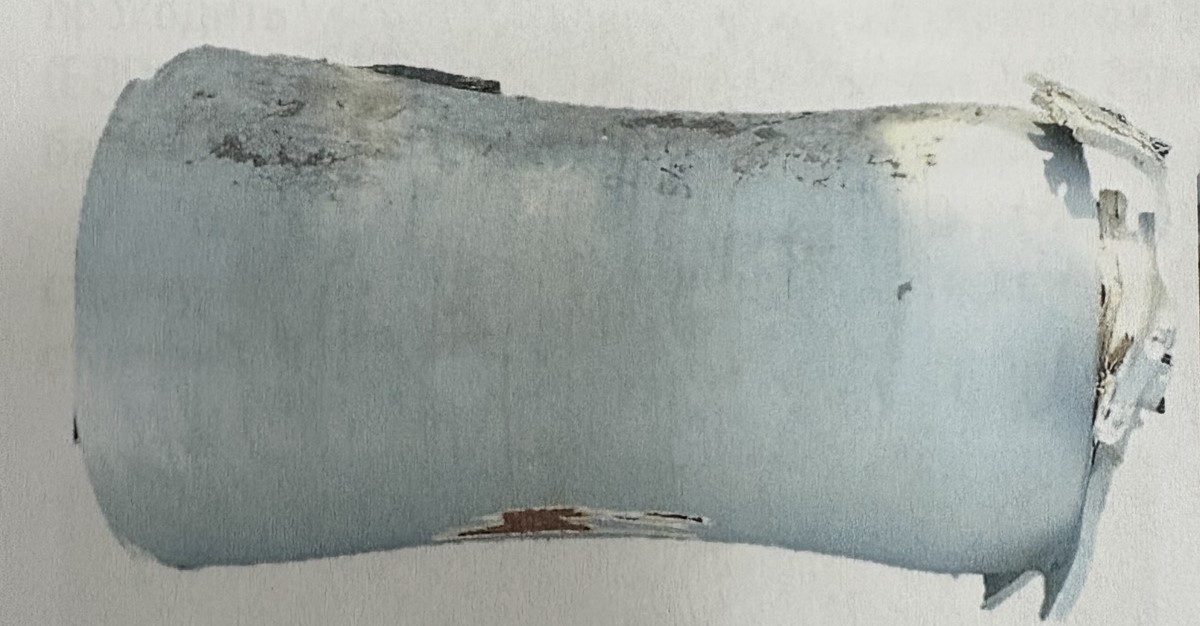

9-B-2347-01 fragmentation-high-explosive warhead

Осколково-фугасна бойова частина 9-Б-2347-01

GOSNIIMASH JSCRussian Federation

HUR War & Sanctions record ↗

  • 9-B-2347-01 fragmentation-high-explosive warhead — photo

Photo: HUR War & Sanctions

Cassette warhead 9-V-2347

Касетна бойова частина 9-В-2347

GOSNIIMASH JSCRussian Federation

HUR War & Sanctions record ↗

  • Cassette warhead 9-V-2347 — photo

Photo: HUR War & Sanctions

Fuel supply unit BTP with ENC-0.5M pump

Блок подачі палива БТП з насосом ЕНЦ-0.5М

OKB CRYSTAL JSCRussian Federation

HUR War & Sanctions record ↗

  • Fuel supply unit BTP with ENC-0.5M pump — photo

Photo: HUR War & Sanctions

Electromechanical steering unit BREM-3

Блок рульовий електромеханічний БРЕМ-3

APZ JSCRussian Federation

HUR War & Sanctions record ↗

  • Electromechanical steering unit BREM-3 — photo

Photo: HUR War & Sanctions

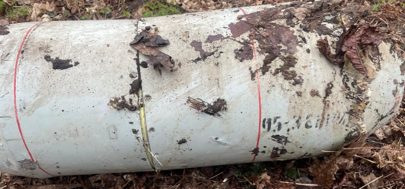

TRDD R95-300 (R95T) turbojet engine

Турбореактивний двигун ТРДД Р95-300 (Р95ТП)

HUR War & Sanctions record ↗

  • TRDD R95-300 (R95T) turbojet engine — photo

Photo: HUR War & Sanctions

Weight model U559 for missiles with cassette warheads

Макет ваговий У559 для ракет з касетною бойовою частиною

HUR War & Sanctions record ↗

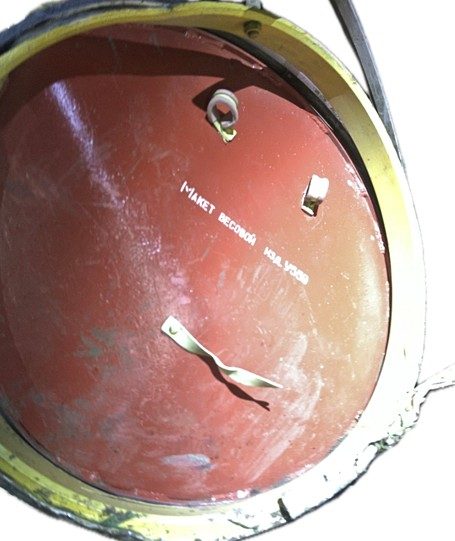

  • Weight model U559 for missiles with cassette warheads — photo

Photo: HUR War & Sanctions

Radio altimeter A-079

Радіовисотомір А-079

UPKB DETAIL JSCRussian Federation

HUR War & Sanctions record ↗

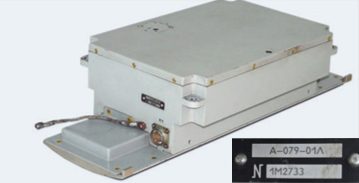

  • Radio altimeter A-079 — photo

Photo: HUR War & Sanctions

  • Board

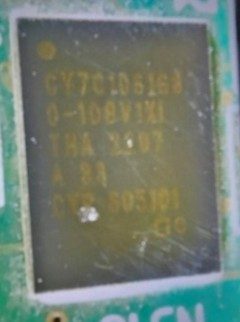

  • CY7C1061G30-10BV1XI THA 2107 CYR 605101 Memory chip Cypress Semiconductor (Infineon Technologies)United States of AmericaMade February (7 week) 2021record ↗ Memory chip, marked CY7C1061G30-10BV1XI THA 2107 CYR 605101
  • 10M50DAF25617G E CAAAZ2213A PLD Altera Corporation (Intel)United States of AmericaMade April (13 week) 2022record ↗ PLD, marked 10M50DAF25617G E CAAAZ2213A

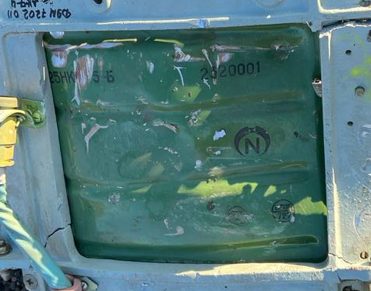

Chemical current source HIT 25NKM-5-B

Хімічне джерело струму ХИТ 25НКМ-5-Б

NIIHIT JSCRussian Federation

HUR War & Sanctions record ↗

  • Chemical current source HIT 25NKM-5-B — photo

Photo: HUR War & Sanctions

Penetrating warhead 9-B-2347-02

Проникаюча бойова частина 9-Б-2347-02

GOSNIIMASH JSCRussian Federation

HUR War & Sanctions record ↗

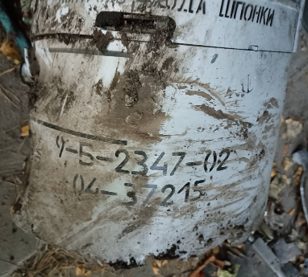

  • Penetrating warhead 9-B-2347-02 — photo

Photo: HUR War & Sanctions

Electric motor for steering drive MP-0.18M as part of the BREM-3 unit

Електромотор приводу рулів МП-0,18М у складі блоку БРЕМ-3

HUR War & Sanctions record ↗

  • Electric motor for steering drive MP-0.18M as part of the BREM-3 unit — photo

Photo: HUR War & Sanctions

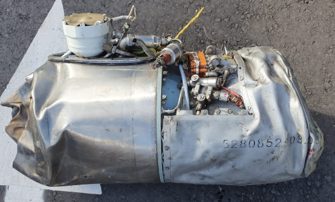

TRDD-50AT turbojet engine (Product 36MT)

Турбореактивний двигун ТРДД-50АТ (Изделие-36МТ)

ODK-SATURN PJSCRussian Federation

HUR War & Sanctions record ↗

  • TRDD-50AT turbojet engine (Product 36MT) — photo

Photo: HUR War & Sanctions

Missile Kh-59 record ↗

BINS "BINS-M2"

  • Board KMIV.685263.163 BINS

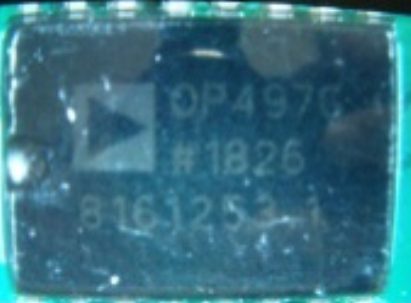

  • #1826 8161253,1 OP497G Analog DevicesUnited States of AmericaMade June (week 26) 2018record ↗ OP497G, marked #1826 8161253,1

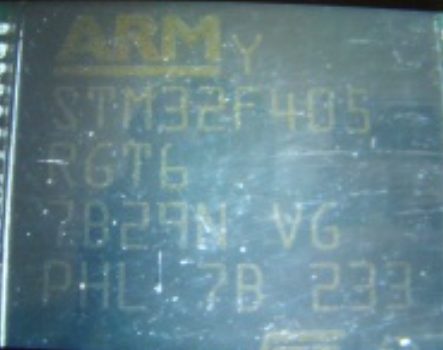

  • STM32F405 RJT6 7B29N VG PHL 7B 233 ARM Y STMicroelectronicsSwitzerlandrecord ↗ ARM Y, marked STM32F405 RJT6 7B29N VG PHL 7B 233
  • Board KMIV.685263.162 of the platform-free inertial navigation system

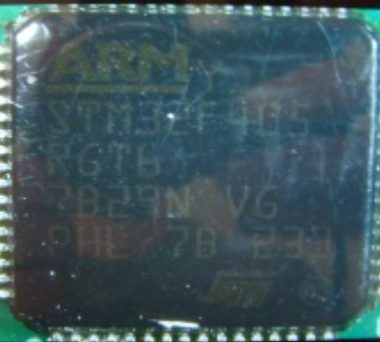

  • ARM STM32F405 RGT6 7B29N VG PHL 7B 233 32-bit microcontroller STMicroelectronicsSwitzerlandrecord ↗ 32-bit microcontroller, marked ARM STM32F405 RGT6 7B29N VG PHL 7B 233

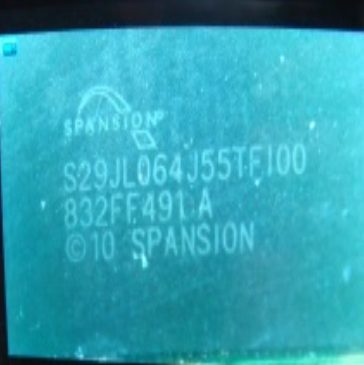

  • SPANSION S29JL064J55TF100 832FF491A 10 SPANSION 64 MB flash memory chip Spansion (Cypress Semiconductor, Infineon Technologies)United States of Americarecord ↗ 64 MB flash memory chip, marked SPANSION S29JL064J55TF100 832FF491A 10 SPANSION

Missile Kh-59Mk-2 №4262652337019 record ↗

SN-99 BPV

  • EPF10K2OR I208-4 U DBA561719A VBA564374 304UA7KC2 Programmable logistic integrated circuit FLEX Altera Corporation (Intel)United States of Americarecord ↗ Programmable logistic integrated circuit FLEX, marked EPF10K2OR I208-4 U DBA561719A VBA564374 304UA7KC2

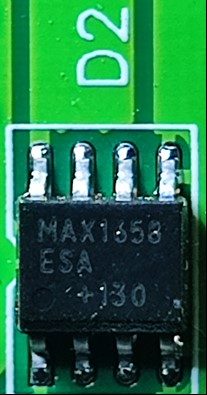

  • MAX1658 ESA +130 Linear regulator with low droop Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ Linear regulator with low droop, marked MAX1658 ESA +130
  • ЕРС2LI20 U HAF4B1825A Integrated circuit Altera Corporation (Intel)United States of Americarecord ↗ Integrated circuit, marked ЕРС2LI20 U HAF4B1825A
  • EPF10K30EQI208-2N Q HAEAL1731A NAEAL44612 3P2QA700Q Programmable logistic integrated circuit FLEX Altera Corporation (Intel)United States of Americarecord ↗ Programmable logistic integrated circuit FLEX, marked EPF10K30EQI208-2N Q HAEAL1731A NAEAL44612 3P2QA700Q
  • M29W320DB 70N6 L 99A37 VZ MYS 99 822 Flash memory support STMicroelectronicsSwitzerlandrecord ↗ Flash memory support, marked M29W320DB 70N6 L 99A37 VZ MYS 99 822
  • 7AC451K ABT534A G4 Integrated logic circuit Texas InstrumentsUnited States of Americarecord ↗ Integrated logic circuit, marked 7AC451K ABT534A G4
  • GKI10526 Transistor STMicroelectronicsSwitzerlandrecord ↗ Transistor, marked GKI10526
  • TG1G-E001NY 2024LF Audio signal transformer HALO Electronics, Inc.United States of Americarecord ↗ Audio signal transformer, marked TG1G-E001NY 2024LF
  • ЕРС064А 2107 Integrated circuit Altera Corporation (Intel)United States of Americarecord ↗ Integrated circuit, marked ЕРС064А 2107
  • EP4CGX110DF31I7N G CAAAF2043E S045AF36 351GE0N0D Cyclone IV programmable logic device Altera Corporation (Intel)United States of Americarecord ↗ Cyclone IV programmable logic device, marked EP4CGX110DF31I7N G CAAAF2043E S045AF36 351GE0N0D
  • CY7C1011DV33-10ZSXI 2036 016951 PHI R 05 RAM Cypress Semiconductor (Infineon Technologies)United States of Americarecord ↗ RAM, marked CY7C1011DV33-10ZSXI 2036 016951 PHI R 05

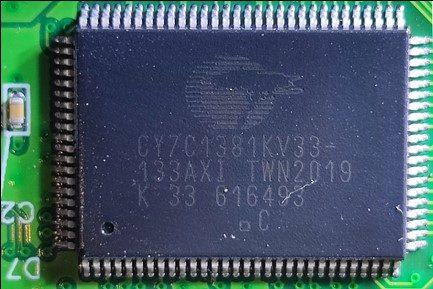

  • CY7C1381KV33-133AXI TWN2019 K 33 616493 Static RAM 64 Mbit Cypress Semiconductor (Infineon Technologies)United States of Americarecord ↗ Static RAM 64 Mbit, marked CY7C1381KV33-133AXI TWN2019 K 33 616493

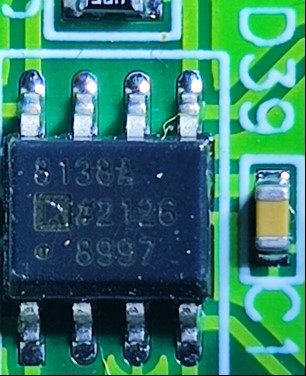

  • 8138A #2126 8997 Differential ADC driver with low level of distortion Analog DevicesUnited States of Americarecord ↗ Differential ADC driver with low level of distortion, marked 8138A #2126 8997
  • 88E1111-BAB1 G3WP077-1JW 2046 B2P TW Built-in 10/100/1000 Ultra Gigabit Ethernet transceiver Marvell Technology GroupUnited States of Americarecord ↗ Built-in 10/100/1000 Ultra Gigabit Ethernet transceiver, marked 88E1111-BAB1 G3WP077-1JW 2046 B2P TW
  • MAX1658 ESA +13 Linear regulator with low droop Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ Linear regulator with low droop, marked MAX1658 ESA +13
  • EPC2LI20N U HAF481819A FPGA is managed memory Altera Corporation (Intel)United States of Americarecord ↗ FPGA is managed memory, marked EPC2LI20N U HAF481819A

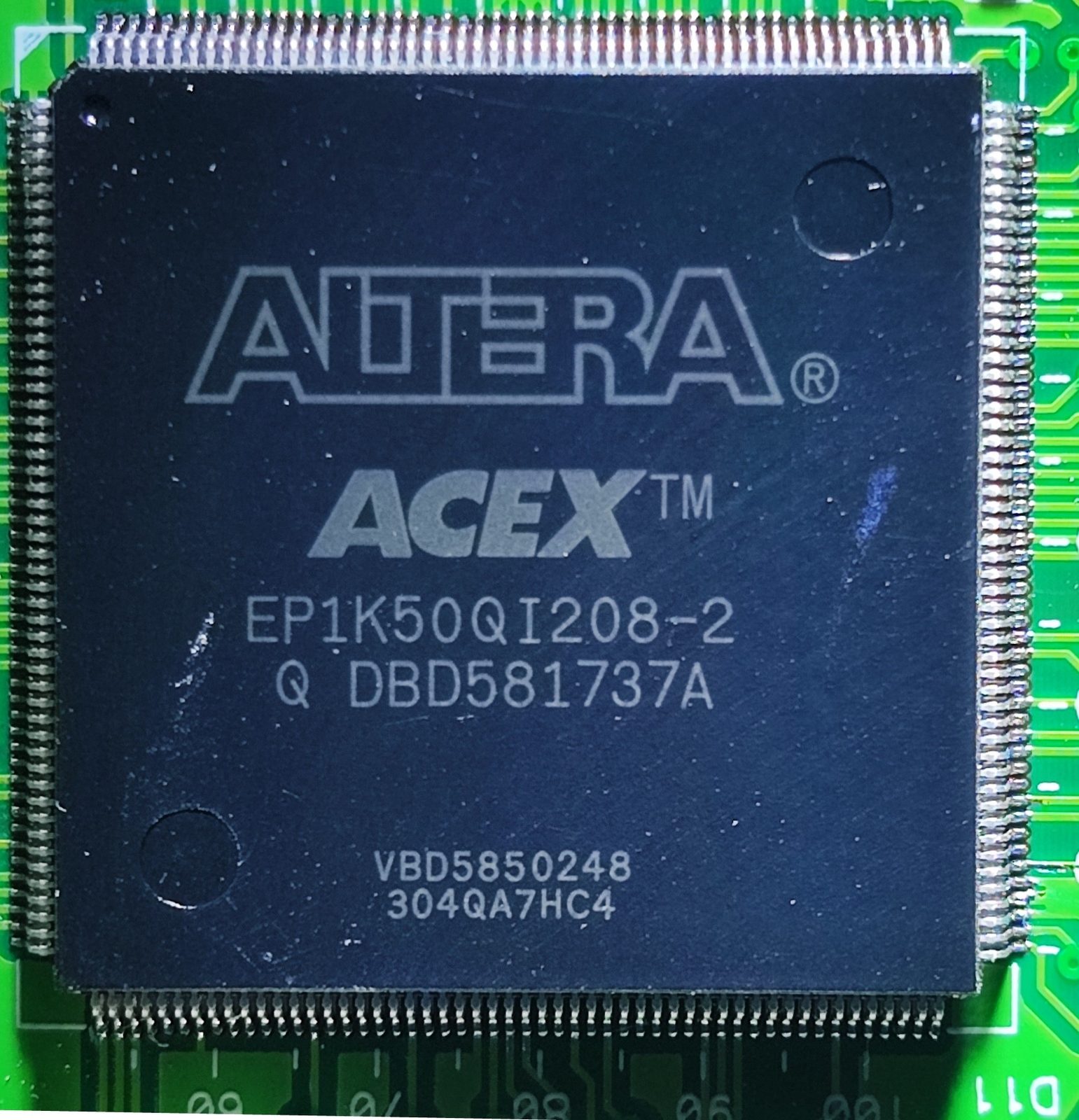

  • EP1K50Q1208-2 Q DBD581737A VBD5850248 304QA7HC4 Programmable logic device Altera Corporation (Intel)United States of Americarecord ↗ Programmable logic device, marked EP1K50Q1208-2 Q DBD581737A VBD5850248 304QA7HC4
  • ВAD780B #111 61279 2.5 V or 3.0 ultra-high-accuracy reference voltage source Analog DevicesUnited States of Americarecord ↗ 2.5 V or 3.0 ultra-high-accuracy reference voltage source, marked ВAD780B #111 61279

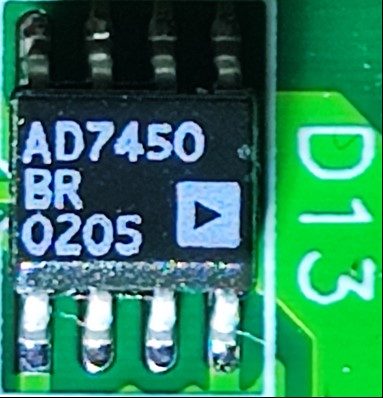

  • AD7450 BR 0205 12-bit ADC with differential input Analog DevicesUnited States of Americarecord ↗ 12-bit ADC with differential input, marked AD7450 BR 0205
  • 8138A #2126 8997 Differential ADC driver with low level of distortion Analog DevicesUnited States of Americarecord ↗ Differential ADC driver with low level of distortion, marked 8138A #2126 8997
  • 1BA246K G4 ABT16245A Integrated logic circuit Texas InstrumentsUnited States of Americarecord ↗ Integrated logic circuit, marked 1BA246K G4 ABT16245A
  • V041Y 817B Transistor ON Semiconductor (ONSEMI)United States of Americarecord ↗ Transistor, marked V041Y 817B
  • VNK15 J112G Transistor ON Semiconductor (ONSEMI)United States of Americarecord ↗ Transistor, marked VNK15 J112G

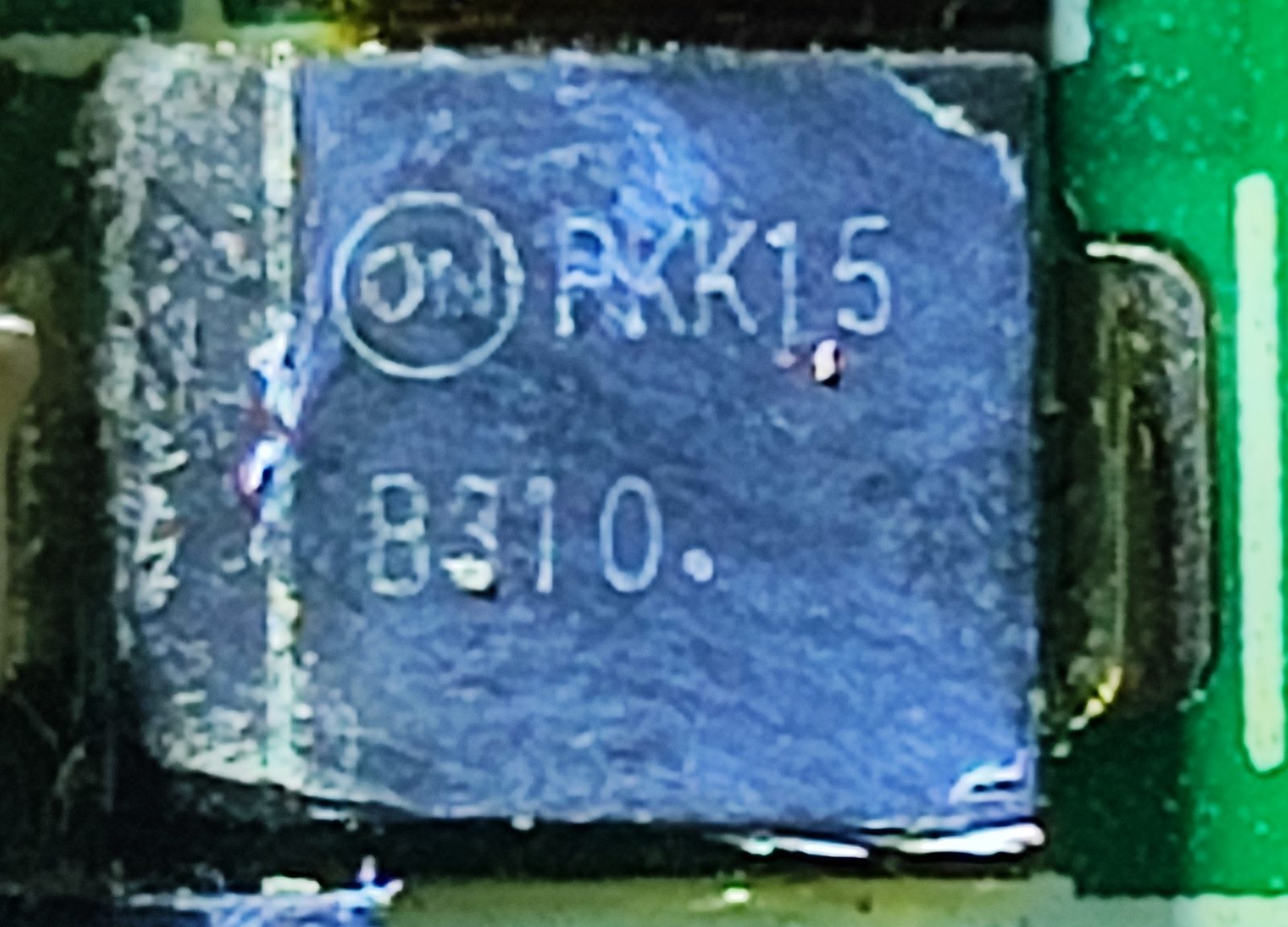

  • PKK15 B310 Capacitor ON Semiconductor (ONSEMI)United States of Americarecord ↗ Capacitor, marked PKK15 B310

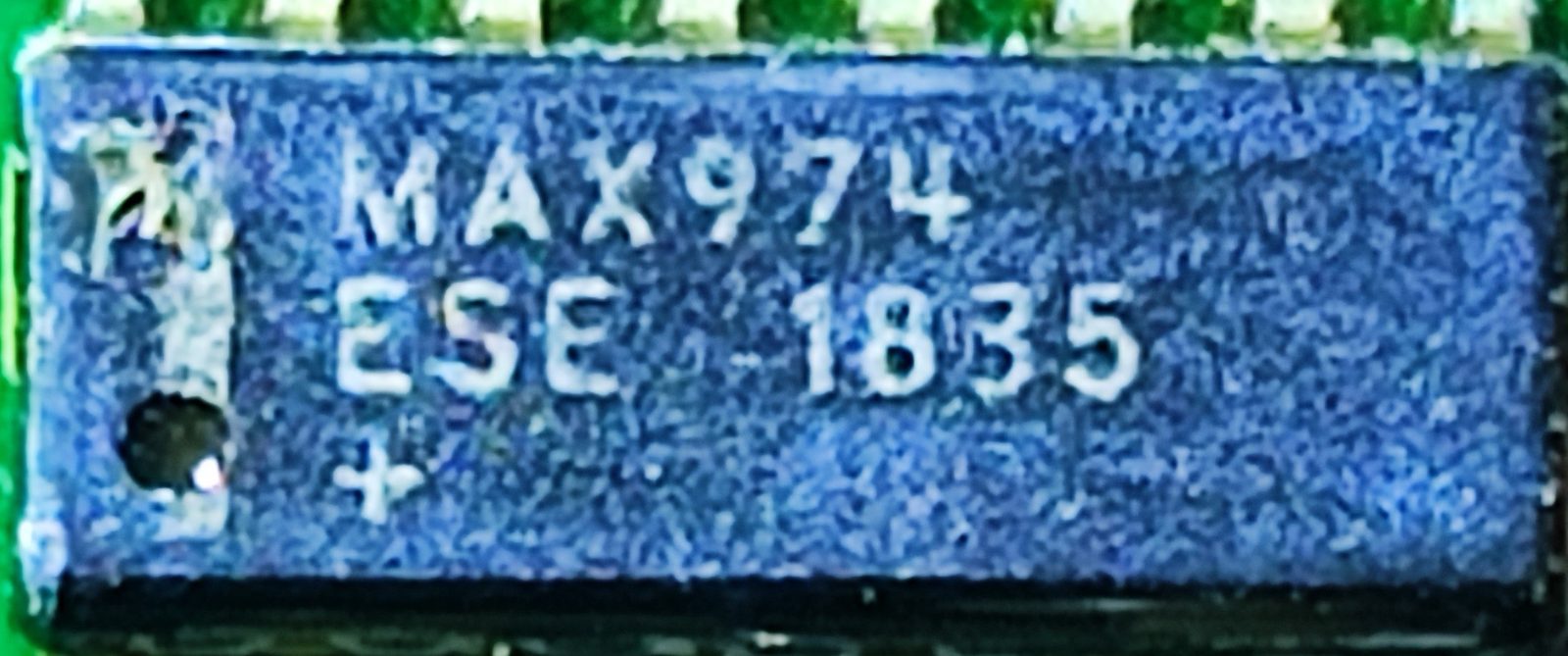

  • MAX974 ESE 1835 + An open-drain, ultra-low-power, dual-supply comparator Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ An open-drain, ultra-low-power, dual-supply comparator, marked MAX974 ESE 1835 +
  • PS54357 7AT CPJK Synchronous PWM switch Texas InstrumentsUnited States of Americarecord ↗ Synchronous PWM switch, marked PS54357 7AT CPJK
  • 28084 OAM AGV Push-Pull PWM with programmable tilt compensation Texas InstrumentsUnited States of Americarecord ↗ Push-Pull PWM with programmable tilt compensation, marked 28084 OAM AGV
  • 431AI 97M AHTD 4 Controlled zener diode 2.5...36V with temperature stability Texas InstrumentsUnited States of Americarecord ↗ Controlled zener diode 2.5...36V with temperature stability, marked 431AI 97M AHTD 4
  • 88C3KJK G4 AC74M Integrated microcircuit Texas InstrumentsUnited States of Americarecord ↗ Integrated microcircuit, marked 88C3KJK G4 AC74M
  • AL016J70BFI01 201BB389 L THA 4HYV73 Flash memory Spansion (Cypress Semiconductor, Infineon Technologies)United States of Americarecord ↗ Flash memory, marked AL016J70BFI01 201BB389 L THA 4HYV73
  • IS62WV102416BLL-25TLI DQ5561S1 2143 Memory Integrated Silicon Solution (Ingenic Semiconductor)United States of Americarecord ↗ Memory, marked IS62WV102416BLL-25TLI DQ5561S1 2143
  • Si5338 C B3G175 2203 Programmable logistic scheme Skyworks Solutions, IncUnited States of Americarecord ↗ Programmable logistic scheme, marked Si5338 C B3G175 2203
  • RS-232/V.28 ADM 3202A #127 2-channel interface device Analog DevicesUnited States of Americarecord ↗ 2-channel interface device, marked RS-232/V.28 ADM 3202A #127
  • Watchdog RTC 32-bit Binary Counter Dallas Semiconductor (Maxim Integrated, Analog Devices)United States of Americarecord ↗ Watchdog RTC 32-bit Binary Counter
  • MAX3491 ESD 2130 Integrated microcircuit Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ Integrated microcircuit, marked MAX3491 ESD 2130
  • MAXIM 2769E TI143 +NSBL GPS signal receiver Maxim Integrated Products (Analog Devices)United States of Americarecord ↗ GPS signal receiver, marked MAXIM 2769E TI143 +NSBL

BINS-M2

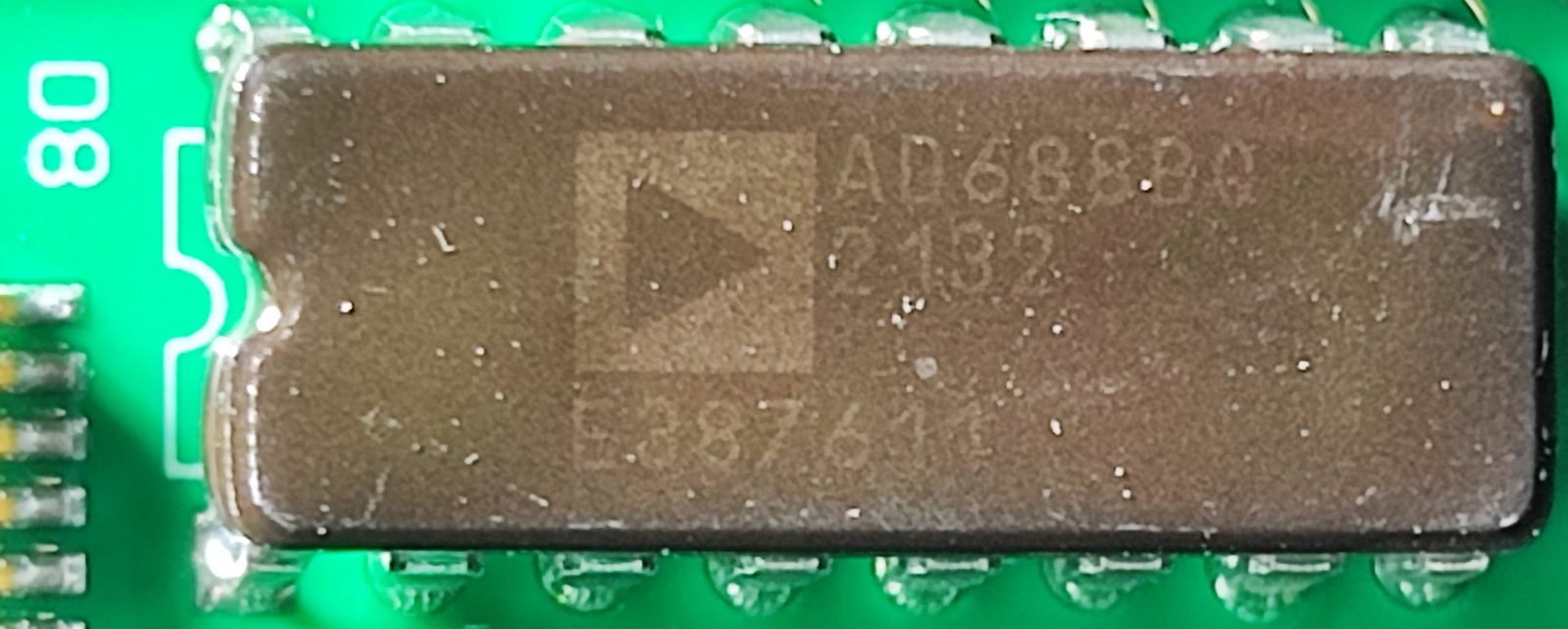

  • AD688BQ 2132 E387611 Power management controller Analog DevicesUnited States of Americarecord ↗ Power management controller, marked AD688BQ 2132 E387611

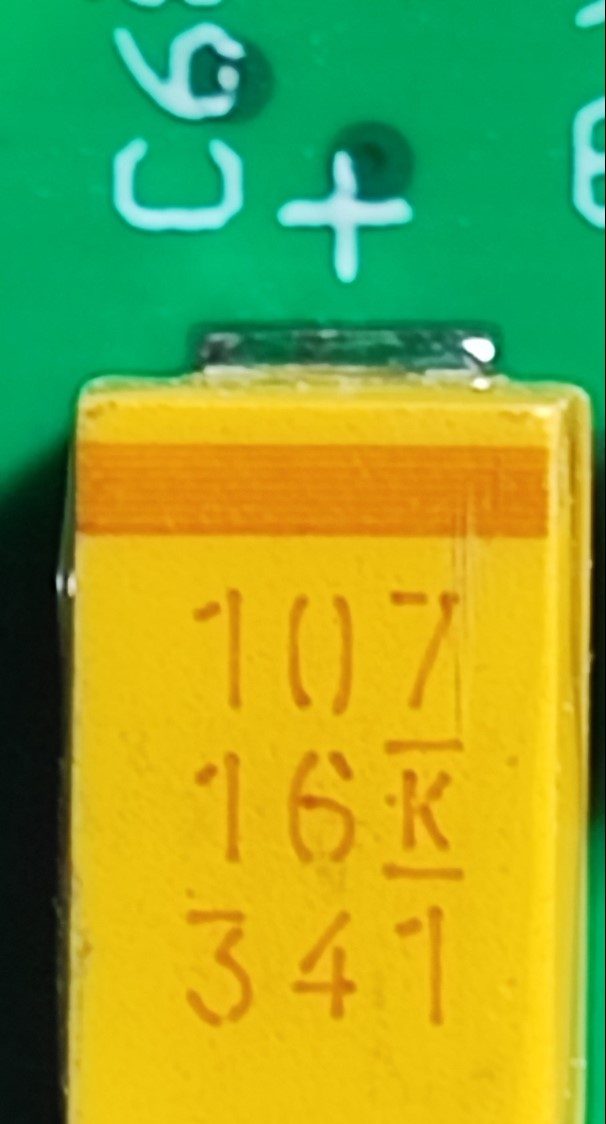

  • 107 16K 341 Tantalum capacitor KEMET (YAGEO Corporation)United States of Americarecord ↗ Tantalum capacitor, marked 107 16K 341
  • 106 50V R2 68 Tantalum capacitor KYOCERA AVXUnited States of Americarecord ↗ Tantalum capacitor, marked 106 50V R2 68
  • OP497 G #2038 4281690.1 Four-channel operational amplifier Analog DevicesUnited States of Americarecord ↗ Four-channel operational amplifier, marked OP497 G #2038 4281690.1

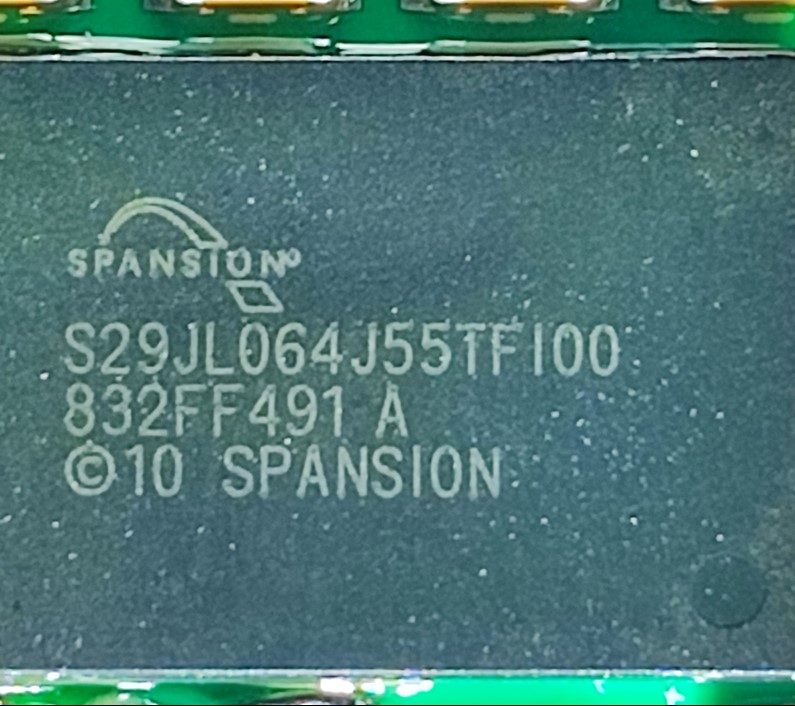

  • S29JL064J55TFI00 832FF491 A (DD3) 64-megabit flash memory device Spansion (Cypress Semiconductor, Infineon Technologies)United States of Americarecord ↗ 64-megabit flash memory device, marked S29JL064J55TFI00 832FF491 A (DD3)
  • STM32F405 RGT6 7B29N VG PHL 7B 233 (D15) Microcontroller STMicroelectronicsSwitzerlandrecord ↗ Microcontroller, marked STM32F405 RGT6 7B29N VG PHL 7B 233 (D15)

Missile Kh-59MK (used from March 2022) record ↗

Platformless inertial navigation system "BINS-M2" of the Kh-59MK air-to-surface guided missile

  • (SMD): 390RJ Resistors with wire winding TE ConnectivityIrelandrecord ↗ Resistors with wire winding, marked (SMD): 390RJ
  • ACEX EP1K5001208-2N HDAAL1707A для оптимізації продуктивності та ефективності розробок шляхів даних, інтенсивних реєстрів, математичної або цифрової обробки сигналів (DSP) microcircuit Altera Corporation (Intel)United States of Americarecord ↗ microcircuit, marked ACEX EP1K5001208-2N HDAAL1707A для оптимізації продуктивності та ефективності розробок шляхів даних, інтенсивних реєстрів, математичної або цифрової обробки сигналів (DSP)
  • S29JL064J55IFI000 64580518-A Memory chip and data transmission Spansion Cypress Semiconductor (Infineon Technologies)United States of Americarecord ↗ Memory chip and data transmission Spansion, marked S29JL064J55IFI000 64580518-A
  • ОР497 G#1805 4130478 Integrated microcircuit (voltage stabilizer ± 10V) Analog DevicesUnited States of Americarecord ↗ Integrated microcircuit (voltage stabilizer ± 10V), marked ОР497 G#1805 4130478
  • AD688BQ 1504 268074 Integrated microcircuit (voltage stabilizer ± 10V) Analog DevicesUnited States of Americarecord ↗ Integrated microcircuit (voltage stabilizer ± 10V), marked AD688BQ 1504 268074

Part records and photos: HUR War & Sanctions, Ukraine's Defence Intelligence database of foreign components found in Russian weapons, and the other sources named on each part. A marking, date code or country is given as the source records it.

Open original ↗
