Texas Instruments TMS320F28335

Also recorded as TMS320F28335, F28335 and TMS320F28335PGFA

A 32-bit real-time microcontroller from Texas Instruments' C2000 line, built for motor and power control. It is the most common foreign chip in recovered Geran flight controllers: HUR has recorded it in all four Geran versions.

Maker
Texas Instruments[1]
Country
United States
Found in
4 weapons, 13 recovered units on record
Photos
15

Photos

1 / 5

Photo: HUR War & Sanctions

See all 15 photos →

The TMS320F28335 is a 150 MHz real-time microcontroller from Texas Instruments’ C2000 line, designed for motor control and power conversion, with a floating-point unit and CAN, serial and SPI interfaces (TI). The PGF suffix in the marking is its 176-pin package.

It is the most frequently recorded foreign chip in Geran flight controllers: HUR War & Sanctions lists it in all four Geran versions, usually in the flight controller unit and its satellite-navigation board, and in the Geran-5 a second one in the power distribution unit. The markings show the same chip under several readings (TMS320 F28335PGFA split over two lines, or misread as IMS320), all collected here.

Specifications

Each figure names its source. A maker's figure is the maker's claim; nothing here was measured by us.

CPUC28x core with 32-bit floating-point unit (FPU32) Official claim[3]
Clock150 MHz Official claim[3]
Flash memory512 kB Official claim[3]
RAM68 kB Official claim[3]
InterfacesCAN, I2C, SPI, UART Official claim[3]
PWM channels12 Official claim[3]
Package (PGF)176-pin LQFP, 26 × 26 mm Official claim[3]

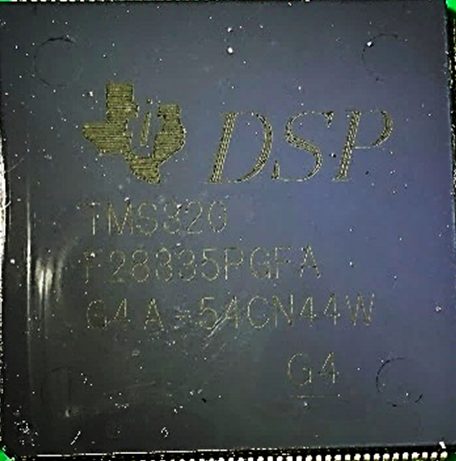

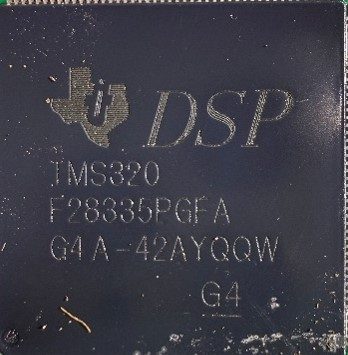

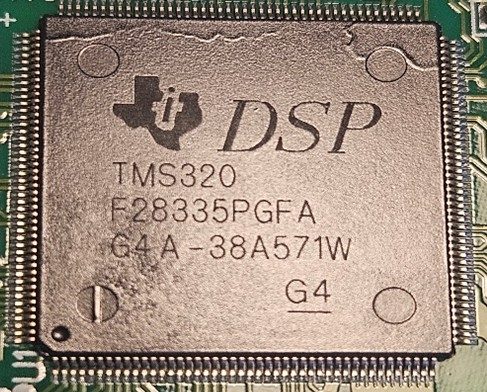

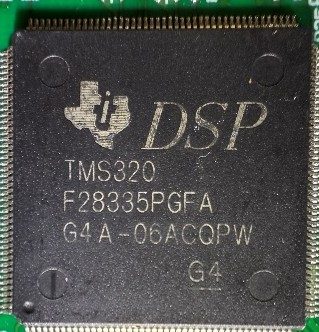

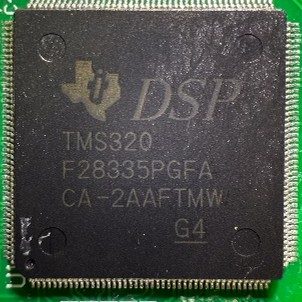

How it is marked

  • TMS320F28335PGFA[2]

Used in

Geran family

Sources

  1. HUR War & Sanctions war-sanctions.gur.gov.ua/en/components/6858
  2. HUR War & Sanctions war-sanctions.gur.gov.ua/en/components/6820
  3. Texas Instruments ti.com/product/TMS320F28335

Last checked 2026-10-19.
