Geran-5 — photos
Chosen for what they show, not how they look: circuit boards, antennas, engines, warheads and the inside of recovered airframes. Each photo carries its credit and, where known, its source.
GUR rendering/3D model of the Geran-5 (overall layout, dorsal nacelle) Photo: GUR via The War Zone

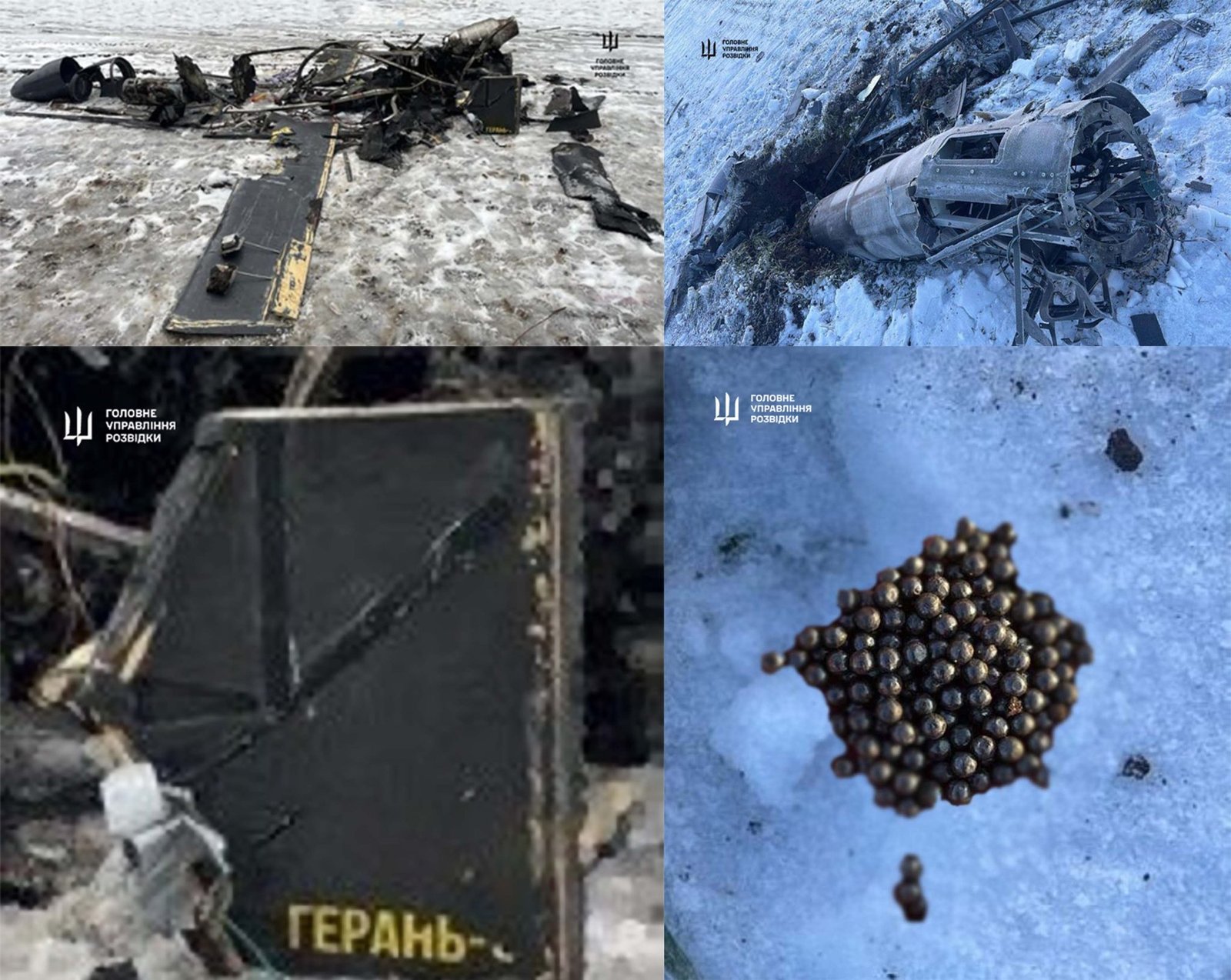

Wreckage overview: tubular fuselage, wing sections Photo: GUR via The War Zone
Kometa-M12 anti-jam GNSS module with 12-element CRP antenna array Photo: HUR (Defence Intelligence of Ukraine)
Flight controller unit (FCU) recovered from wreckage Photo: HUR
Borscht Tracker V3 (Raspberry Pi + 3G/LTE modems) Photo: HUR
Xingkay Tech XK-F358 mesh modem Photo: HUR
Telefly TF-TJ2000A turbojet engine Photo: HUR
Texas Instruments TMS320F28335 DSP on PCB (close-up with markings) Photo: HUR
MINSOO V3 inertial navigation unit Photo: HUR
Power distribution unit (PDU) board Photo: HUR
BCh-90 warhead Photo: HUR
3G/LTE antennas Photo: HUR

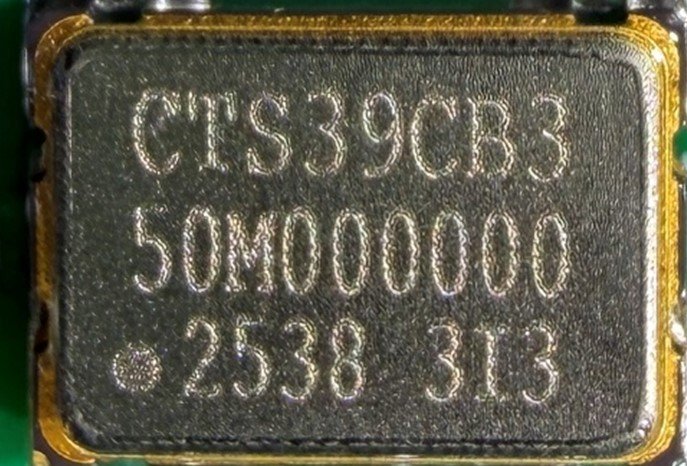

CTS 50 MHz clock generator, 2025 date code (PCB close-up) Photo: HUR

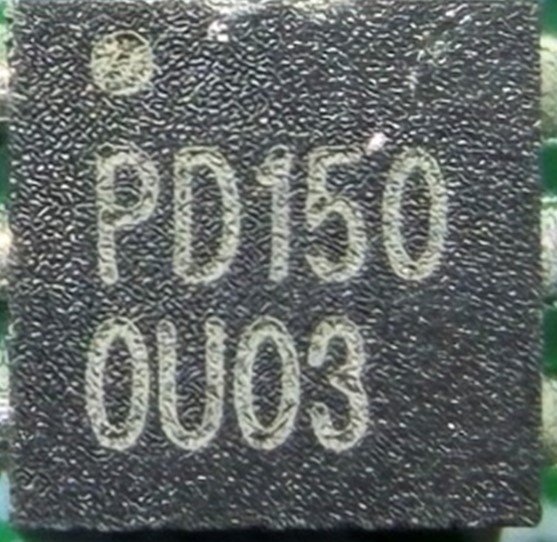

Yantel PD150 RF power divider on satellite-navigation receiver board Photo: HUR
Tubular fuselage section, carbon-fibre skin Photo: GUR via The War Zone

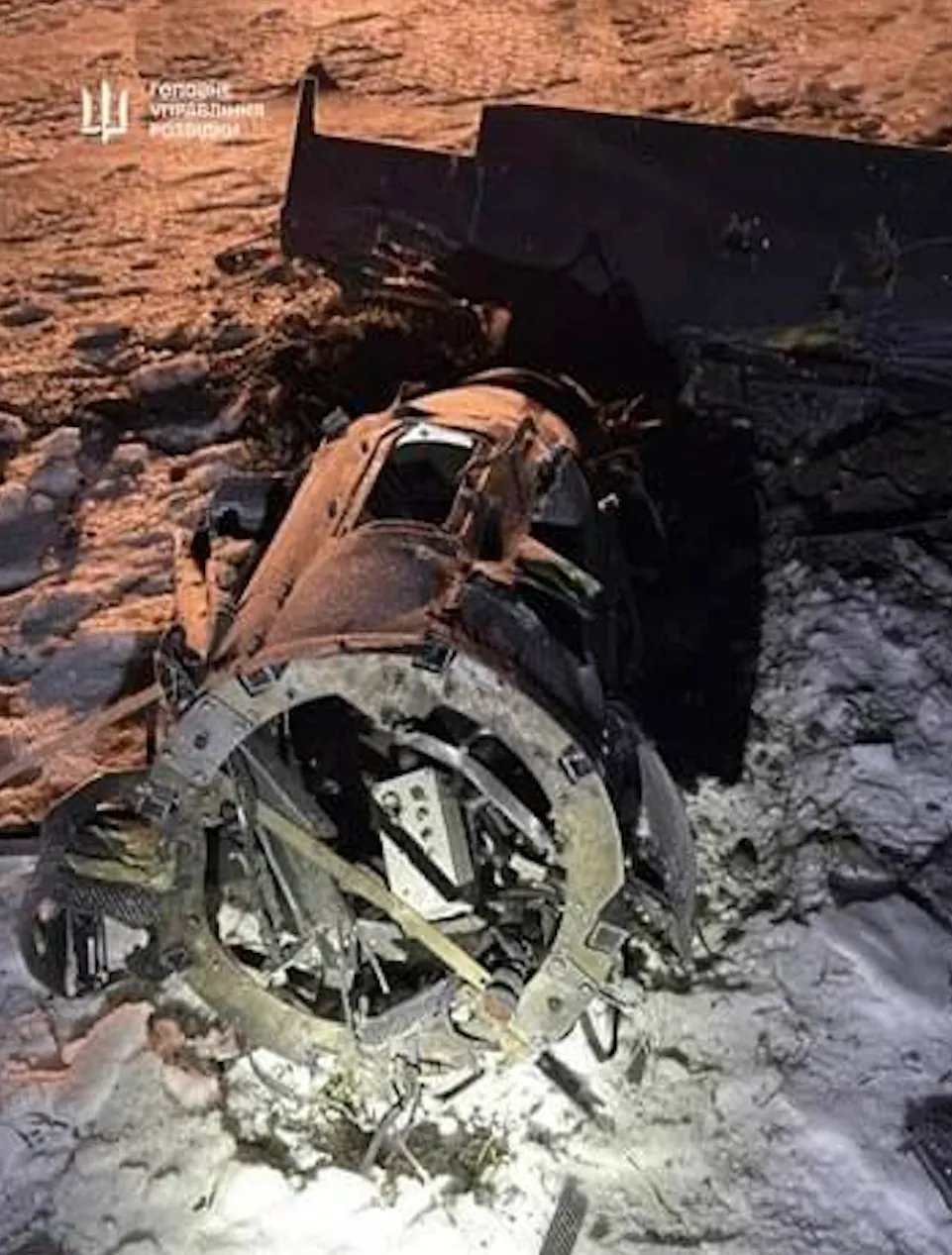

Debris of a destroyed Geran-5 Photo: DIU (HUR) via Militarnyi

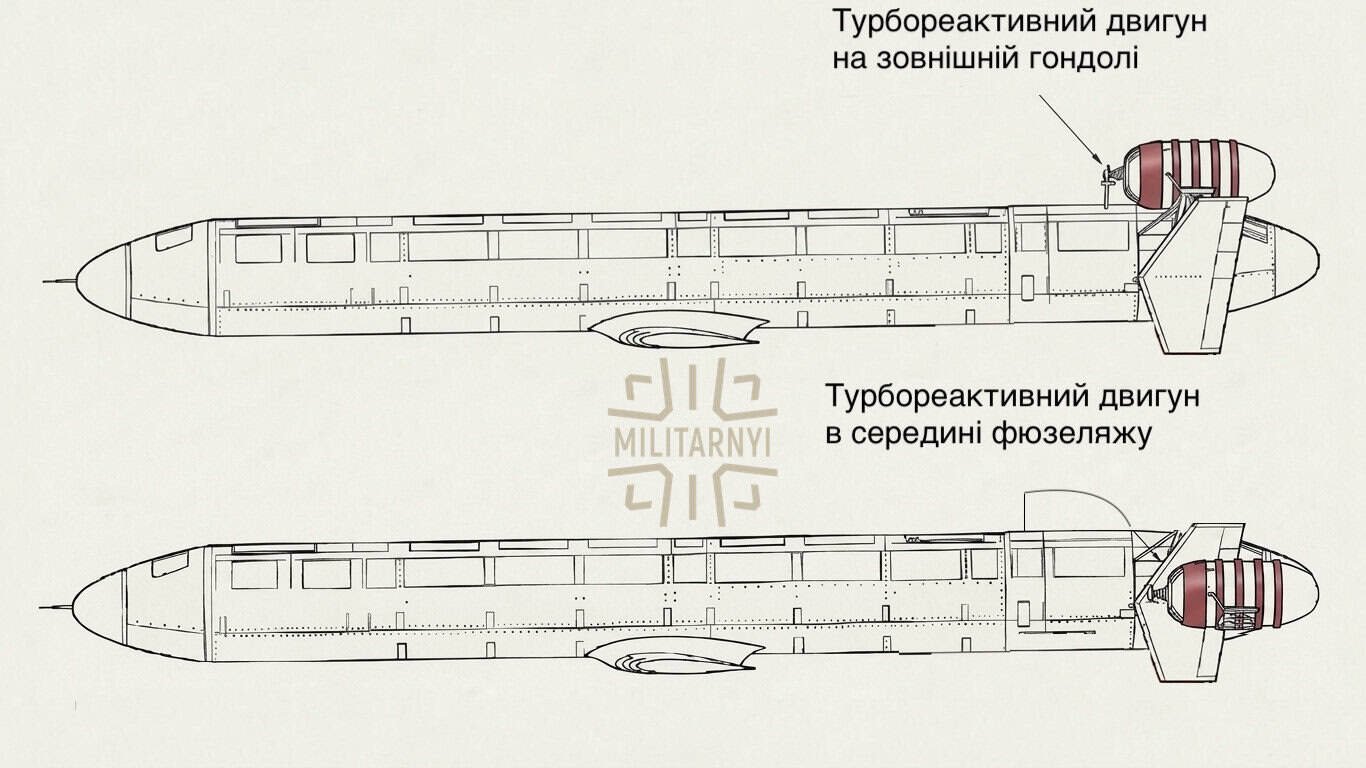

Comparison of old (external nacelle) vs new (internal engine) configuration Photo: Militarnyi

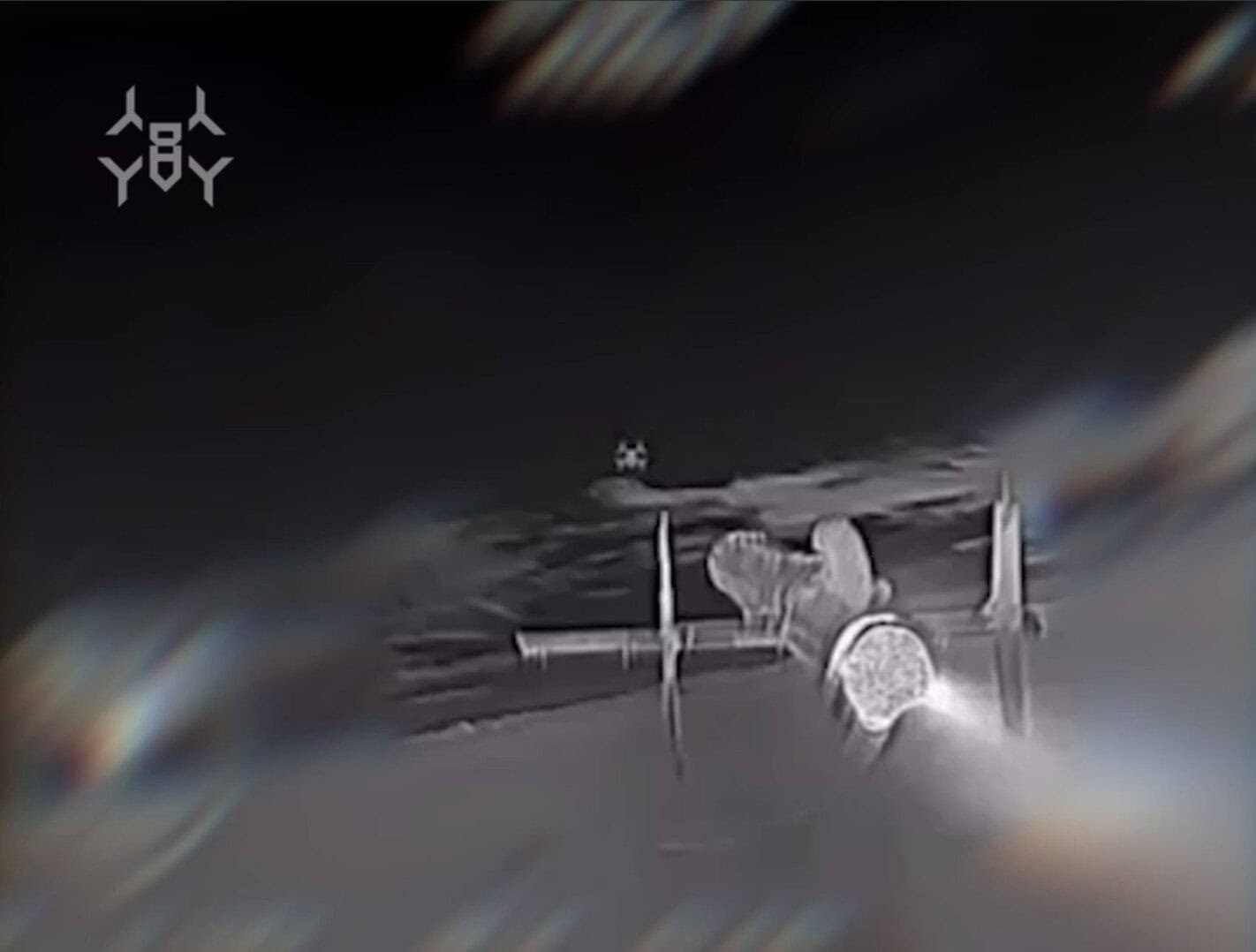

Geran-5 in flight seen from STING S interceptor (planform, engine position) Photo: Wild Hornets via Militarnyi
